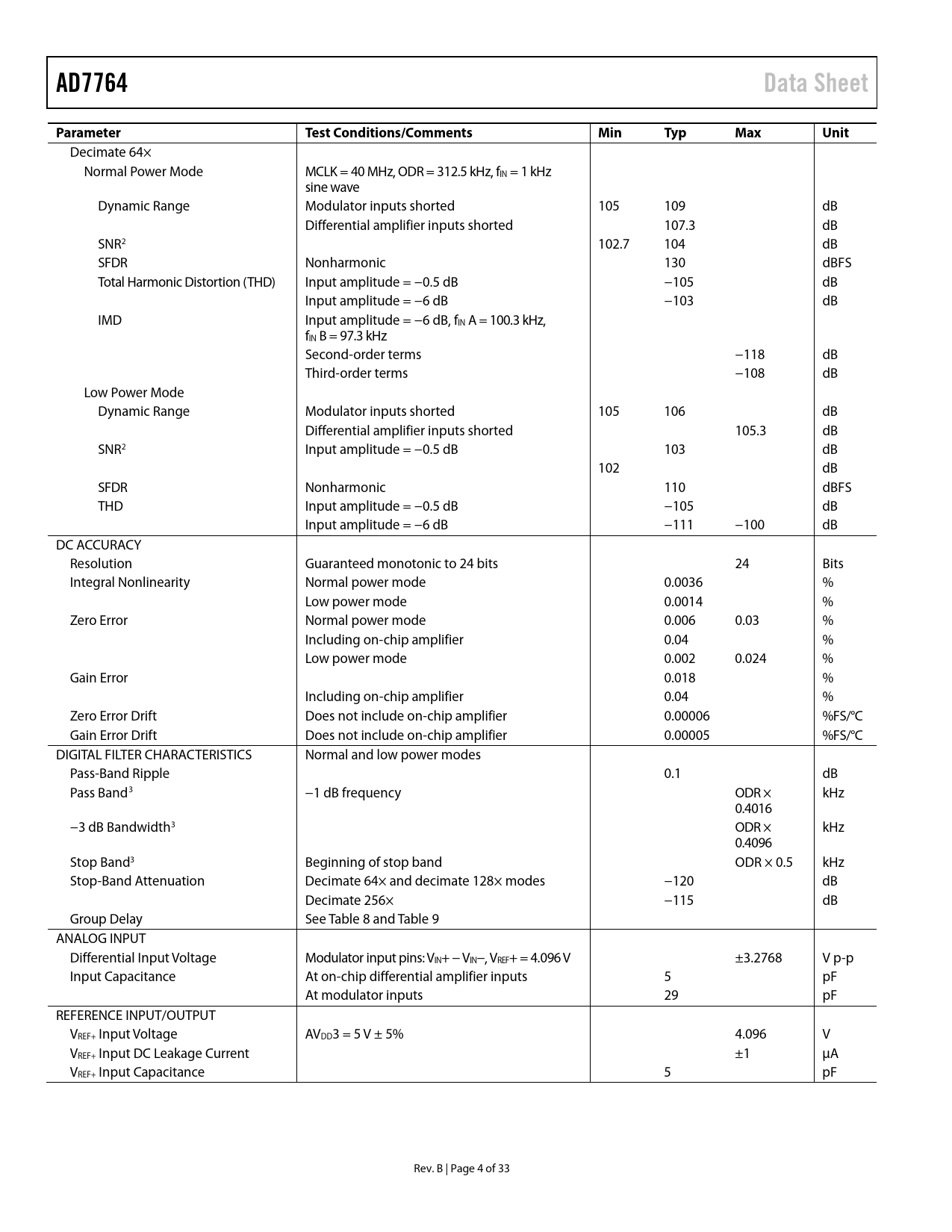

AD7764 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
Decimate 64× Normal Power Mode MCLK = 40 MHz, ODR = 312.5 kHz, fIN = 1 kHz sine wave Dynamic Range Modulator inputs shorted 105 109 dB Differential amplifier inputs shorted 107.3 dB SNR2 102.7 104 dB SFDR Nonharmonic 130 dBFS Total Harmonic Distortion (THD) Input amplitude = −0.5 dB −105 dB Input amplitude = −6 dB −103 dB IMD Input amplitude = −6 dB, fIN A = 100.3 kHz, fIN B = 97.3 kHz Second-order terms −118 dB Third-order terms −108 dB Low Power Mode Dynamic Range Modulator inputs shorted 105 106 dB Differential amplifier inputs shorted 105.3 dB SNR2 Input amplitude = −0.5 dB 103 dB 102 dB SFDR Nonharmonic 110 dBFS THD Input amplitude = −0.5 dB −105 dB Input amplitude = −6 dB −111 −100 dB DC ACCURACY Resolution Guaranteed monotonic to 24 bits 24 Bits Integral Nonlinearity Normal power mode 0.0036 % Low power mode 0.0014 % Zero Error Normal power mode 0.006 0.03 %
