| Description | Multi-Sensor High Accuracy Digital Temperature Measurement System |
| Pages / Page | 72 / 8 — TYPICAL PERFORMANCE CHARACTERISTICS. Diode Error and Repeatability vs. … |
| File Format / Size | PDF / 790 Kb |
| Document Language | English |

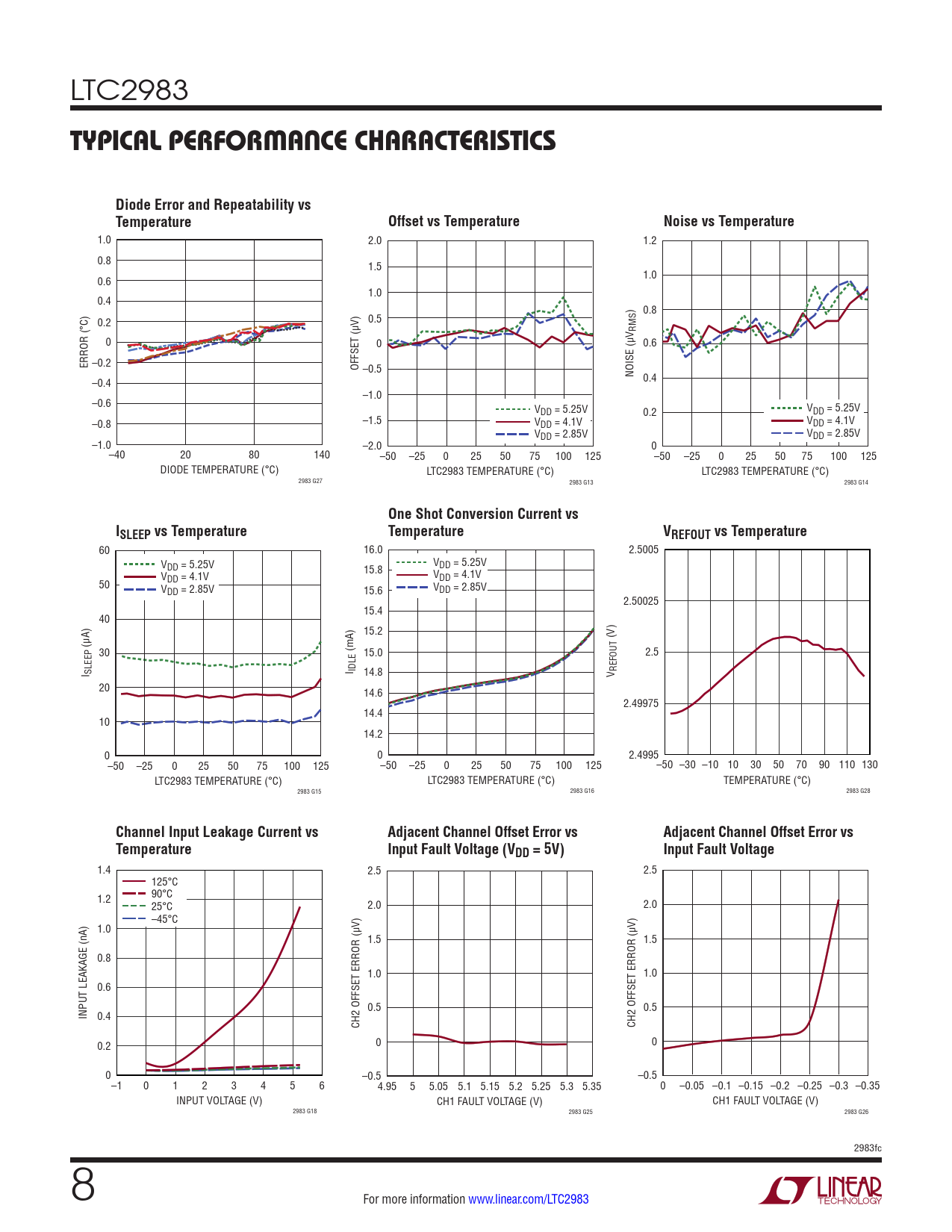

TYPICAL PERFORMANCE CHARACTERISTICS. Diode Error and Repeatability vs. Temperature. Offset vs Temperature. Noise vs Temperature
