Datasheet ADIS16080 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | ±80°/sec Yaw Rate Gyro with SPI Interface |
| Pages / Page | 17 / 7 — ADIS16080. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. ESD … |
| Revision | C |
| File Format / Size | PDF / 579 Kb |
| Document Language | English |

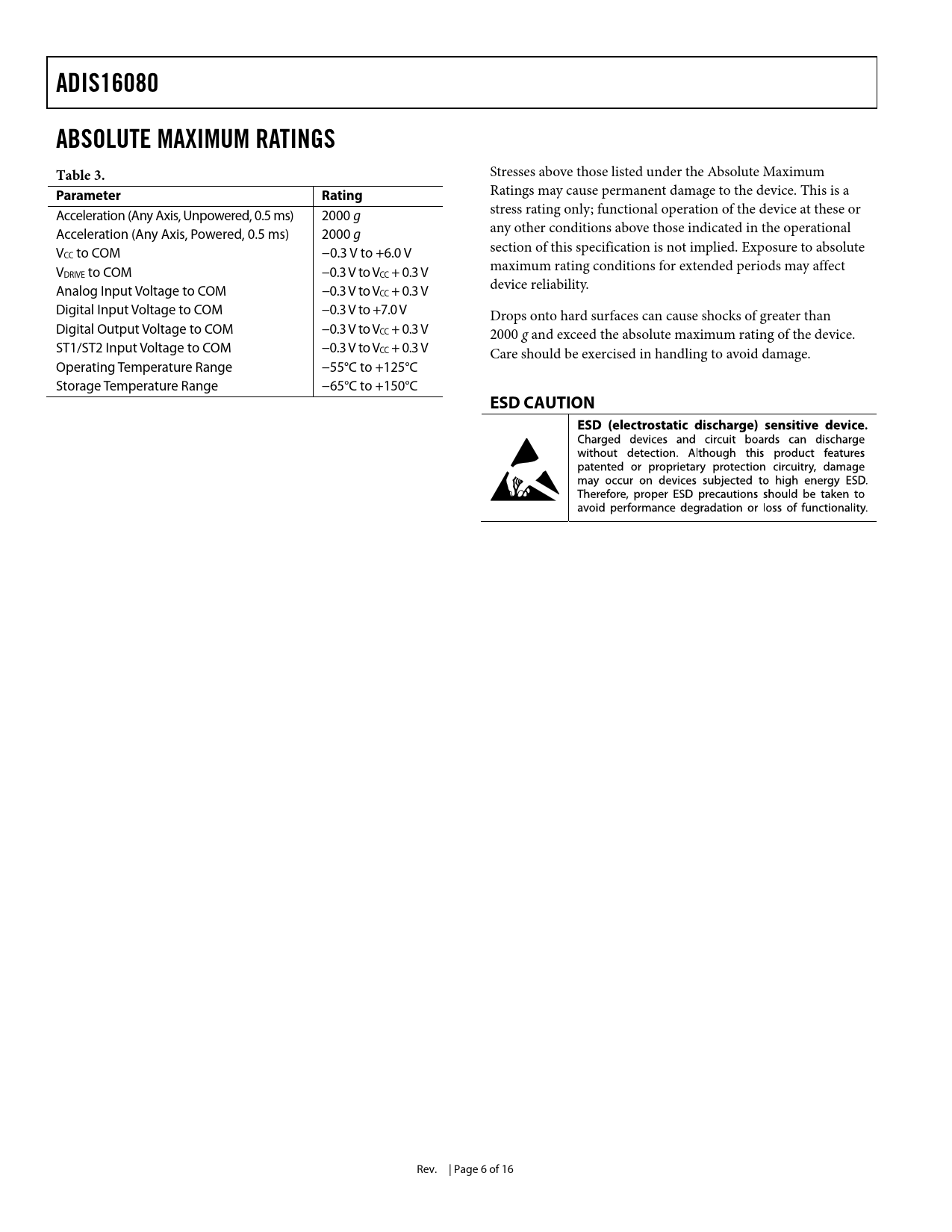

ADIS16080. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADIS16080 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under the Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the device. This is a Acceleration (Any Axis, Unpowered, 0.5 ms) 2000 g stress rating only; functional operation of the device at these or Acceleration (Any Axis, Powered, 0.5 ms) 2000 g any other conditions above those indicated in the operational V section of this specification is not implied. Exposure to absolute CC to COM −0.3 V to +6.0 V V maximum rating conditions for extended periods may affect DRIVE to COM −0.3 V to VCC + 0.3 V device reliability. Analog Input Voltage to COM −0.3 V to VCC + 0.3 V Digital Input Voltage to COM −0.3 V to +7.0 V Drops onto hard surfaces can cause shocks of greater than Digital Output Voltage to COM −0.3 V to VCC + 0.3 V 2000 g and exceed the absolute maximum rating of the device. ST1/ST2 Input Voltage to COM −0.3 V to VCC + 0.3 V Care should be exercised in handling to avoid damage. Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C
