Datasheet ADIS16080 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | ±80°/sec Yaw Rate Gyro with SPI Interface |
| Pages / Page | 17 / 8 — ADIS16080. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. AIN2. DOUT. COM. … |
| Revision | C |
| File Format / Size | PDF / 579 Kb |
| Document Language | English |
ADIS16080. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. AIN2. DOUT. COM. BOTTOM. VIEW. (Not to Scale). SCLK. VREF. DIN. ST2. NC = NO CONNECT
Model Line for this Datasheet
Text Version of Document
link to page 14 link to page 14 link to page 8

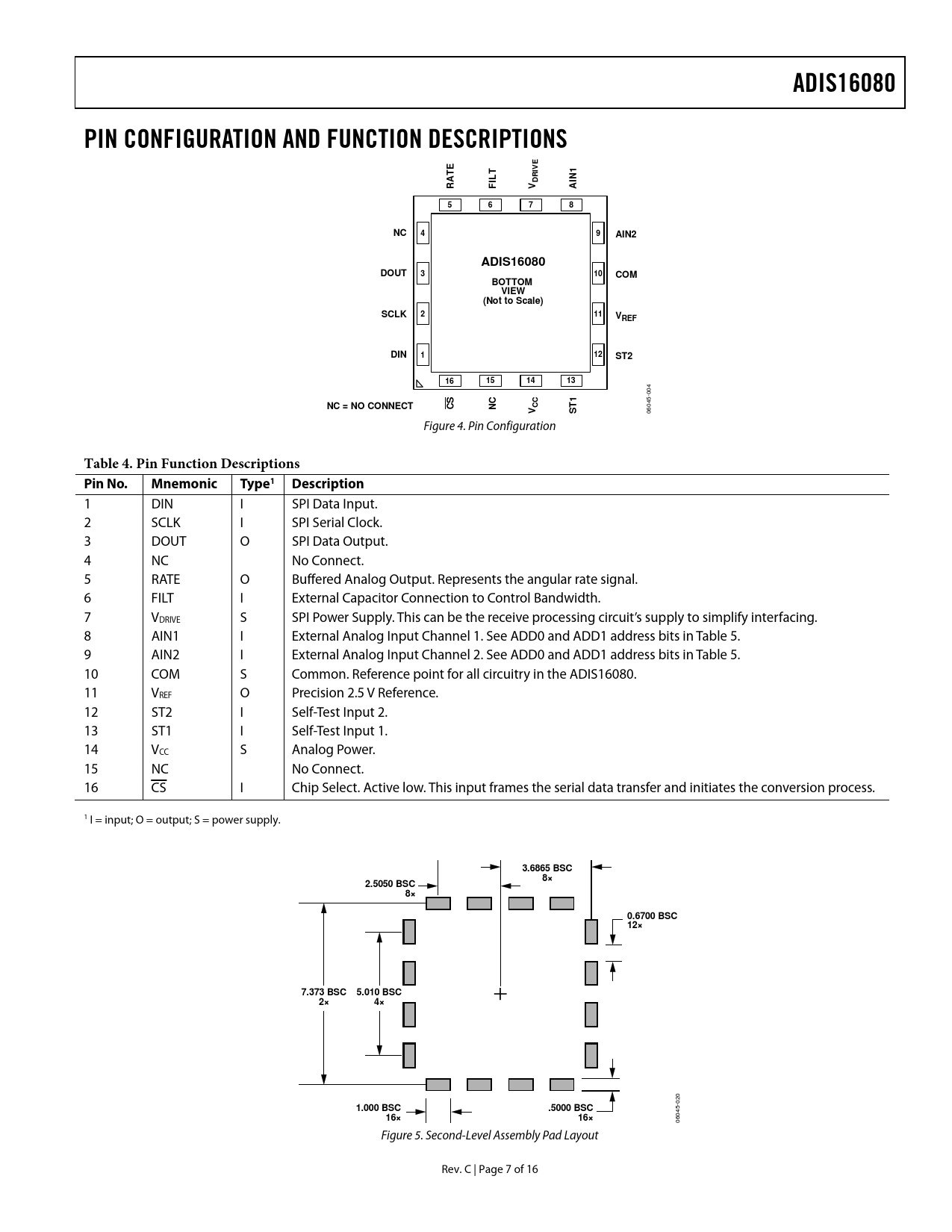

ADIS16080 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS E E V T T I 1 L R A I D NI R F V A 5 6 7 8 NC 4 9 AIN2 ADIS16080 DOUT 3 10 COM BOTTOM VIEW (Not to Scale) SCLK 2 11 VREF DIN 1 12 ST2 16 15 14 13
04 0
S C C 1
5-
NC = NO CONNECT C N C T
04
V S
06 Figure 4. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Type1 Description
1 DIN I SPI Data Input. 2 SCLK I SPI Serial Clock. 3 DOUT O SPI Data Output. 4 NC No Connect. 5 RATE O Buffered Analog Output. Represents the angular rate signal. 6 FILT I External Capacitor Connection to Control Bandwidth. 7 VDRIVE S SPI Power Supply. This can be the receive processing circuit’s supply to simplify interfacing. 8 AIN1 I External Analog Input Channel 1. See ADD0 and ADD1 address bits in Table 5. 9 AIN2 I External Analog Input Channel 2. See ADD0 and ADD1 address bits in Table 5. 10 COM S Common. Reference point for all circuitry in the ADIS16080. 11 VREF O Precision 2.5 V Reference. 12 ST2 I Self-Test Input 2. 13 ST1 I Self-Test Input 1. 14 VCC S Analog Power. 15 NC No Connect. 16 CS I Chip Select. Active low. This input frames the serial data transfer and initiates the conversion process. 1 I = input; O = output; S = power supply.
