| Manufacturer | Analog Devices |
| Description | Precision 5 Volt Reference |
| Pages / Page | 8 / 3 — ELECTRICAL CH. ARA TERISTICS The. denotes specifications which apply over … |
| File Format / Size | PDF / 220 Kb |
| Document Language | English |

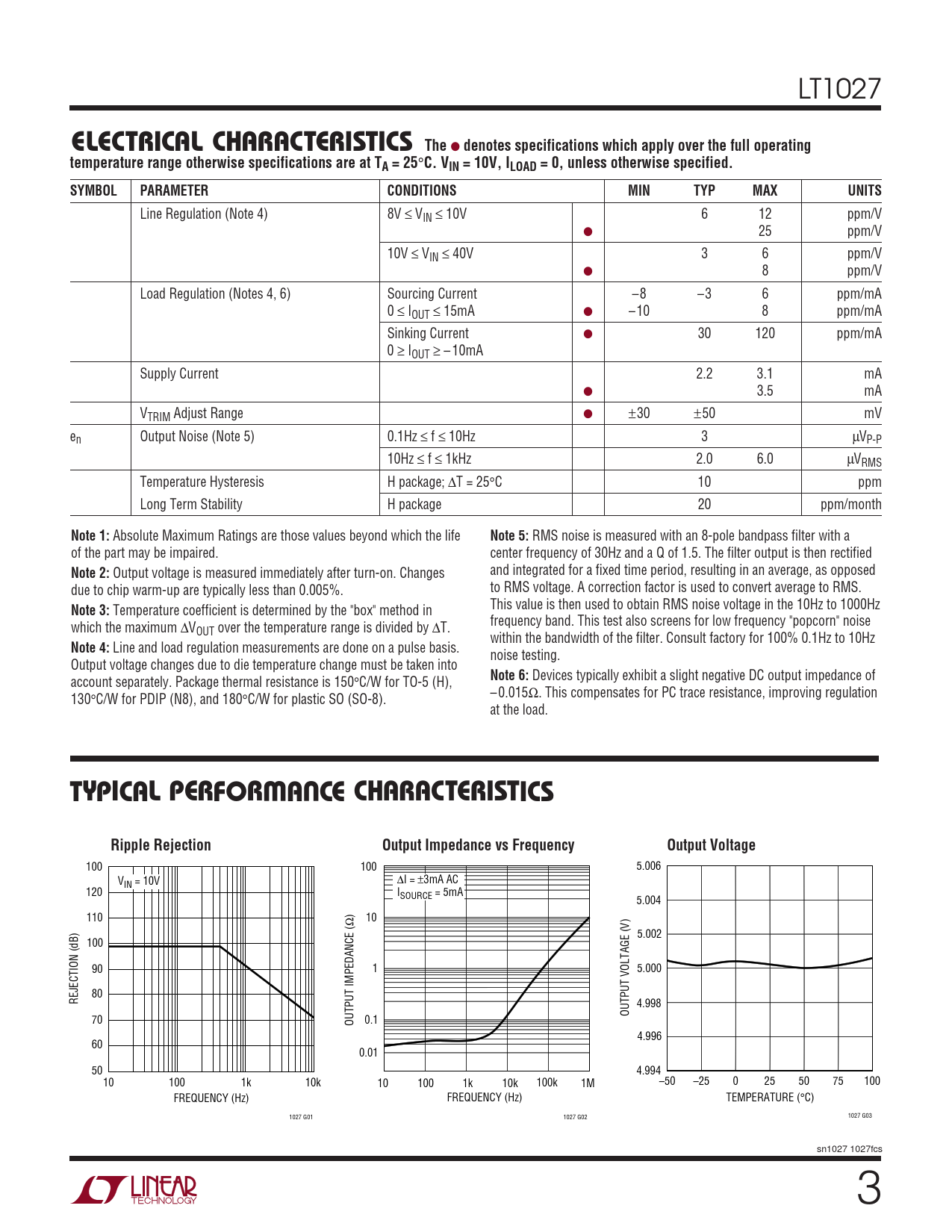

ELECTRICAL CH. ARA TERISTICS The. denotes specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT1027
ELECTRICAL CH C ARA TERISTICS The
●
denotes specifications which apply over the full operating temperature range otherwise specifications are at TA = 25
°
C. VIN = 10V, ILOAD = 0, unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Line Regulation (Note 4) 8V ≤ VIN ≤ 10V 6 12 ppm/V ● 25 ppm/V 10V ≤ VIN ≤ 40V 3 6 ppm/V ● 8 ppm/V Load Regulation (Notes 4, 6) Sourcing Current –8 –3 6 ppm/mA 0 ≤ IOUT ≤ 15mA ● –10 8 ppm/mA Sinking Current ● 30 120 ppm/mA 0 ≥ IOUT ≥ – 10mA Supply Current 2.2 3.1 mA ● 3.5 mA VTRIM Adjust Range ● ±30 ±50 mV en Output Noise (Note 5) 0.1Hz ≤ f ≤ 10Hz 3 µVP-P 10Hz ≤ f ≤ 1kHz 2.0 6.0 µVRMS Temperature Hysteresis H package; ∆T = 25°C 10 ppm Long Term Stability H package 20 ppm/month
