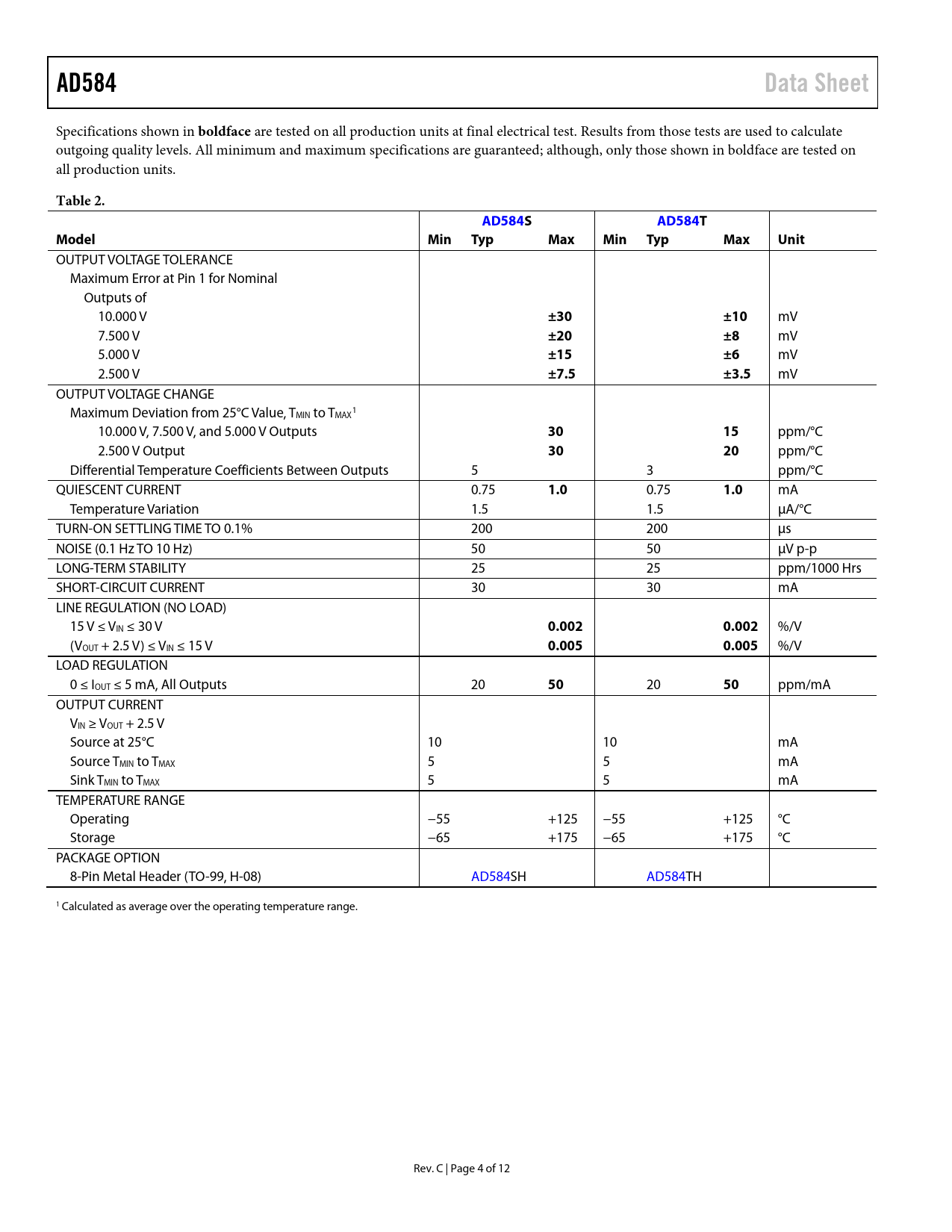

AD584 Data Sheet
Specifications shown in
boldface
are tested on al production units at final electrical test. Results from those tests are used to calculate outgoing quality levels. All minimum and maximum specifications are guaranteed; although, only those shown in boldface are tested on all production units.
Table 2. AD584S AD584T Model Min Typ Max Min Typ Max Unit
OUTPUT VOLTAGE TOLERANCE Maximum Error at Pin 1 for Nominal Outputs of 10.000 V
±30 ±10
mV 7.500 V
±20 ±8
mV 5.000 V
±15 ±6
mV 2.500 V
±7.5 ±3.5
mV OUTPUT VOLTAGE CHANGE Maximum Deviation from 25°C Value, T 1 MIN to TMAX 10.000 V, 7.500 V, and 5.000 V Outputs
30 15
ppm/°C 2.500 V Output
30 20
ppm/°C Differential Temperature Coefficients Between Outputs 5 3 ppm/°C QUIESCENT CURRENT 0.75
1.0
0.75
1.0
mA Temperature Variation 1.5 1.5 µA/°C TURN-ON SETTLING TIME TO 0.1% 200 200 µs NOISE (0.1 Hz TO 10 Hz) 50 50 µV p-p LONG-TERM STABILITY 25 25 ppm/1000 Hrs SHORT-CIRCUIT CURRENT 30 30 mA LINE REGULATION (NO LOAD) 15 V ≤ VIN ≤ 30 V
0.002 0.002
%/V (VOUT + 2.5 V) ≤ VIN ≤ 15 V
0.005 0.005
%/V LOAD REGULATION 0 ≤ IOUT ≤ 5 mA, All Outputs 20
50
20
50
ppm/mA OUTPUT CURRENT VIN ≥ VOUT + 2.5 V Source at 25°C 10 10 mA Source TMIN to TMAX 5 5 mA Sink TMIN to TMAX 5 5 mA TEMPERATURE RANGE Operating −55 +125 −55 +125 °C Storage −65 +175 −65 +175 °C PACKAGE OPTION 8-Pin Metal Header (TO-99, H-08) AD584SH AD584TH 1 Calculated as average over the operating temperature range. Rev. C | Page 4 of 12 Document Outline Features General Description Pin Configurations Product Highlights Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Theory of Operation Applying the AD584 Performance over Temperature Output Current Characteristics Dynamic Performance Noise Filtering Using the Strobe Terminal Percision High Current Supply The AD584 as a Current Limiter Negative Reference Voltages from an AD584 10 V Reference with Multiplying CMOS DACs or ADCs Precision DAC Reference Outline Dimensions Ordering Guide
