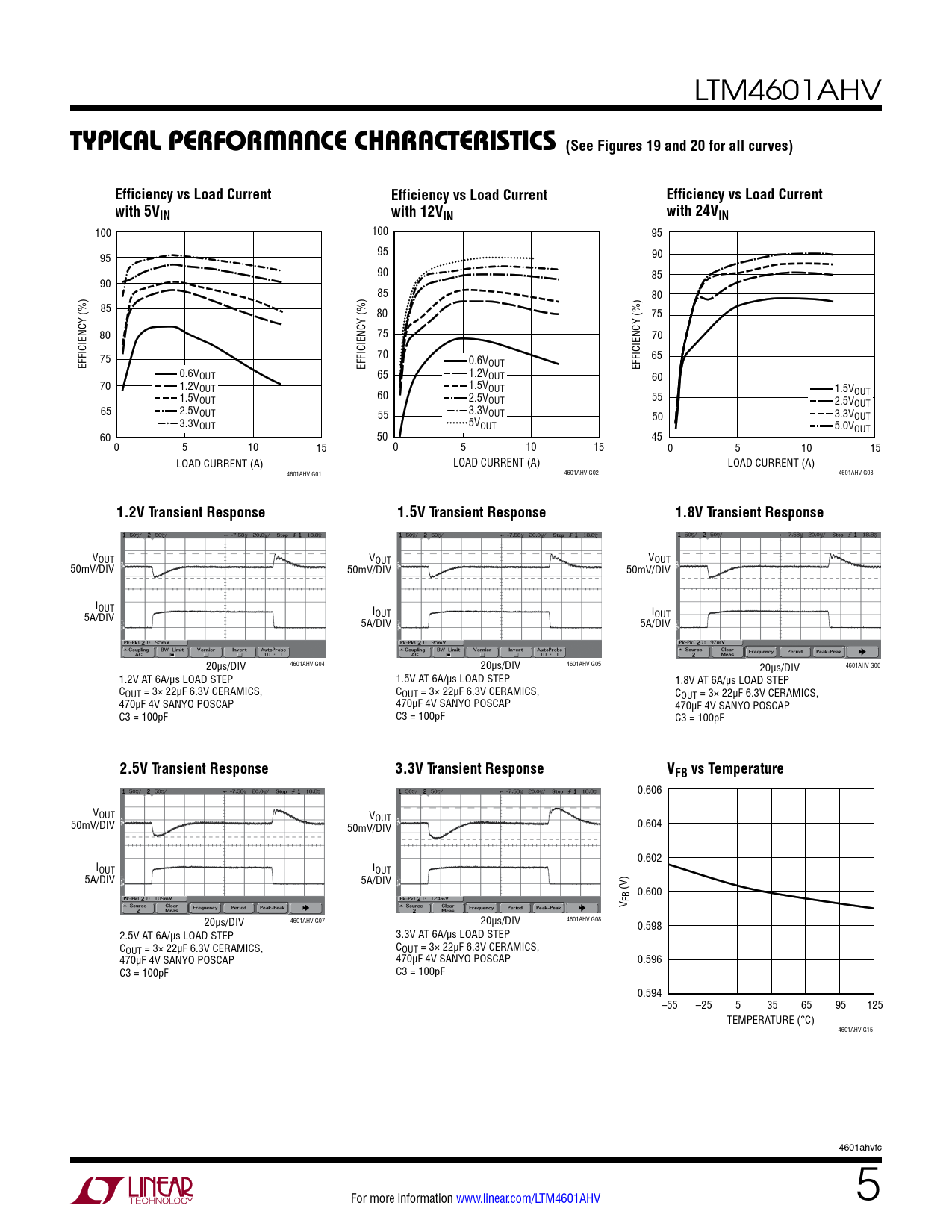

Typical perForMance characTerisTics (See Figures 19 and 20 for all curves). Efficiency vs Load Current. with 5VIN. with 12VIN
