Datasheet LTM8022 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 1A, 36V DC/DC µModule |
| Pages / Page | 20 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). (See Table 3, Pin … |
| File Format / Size | PDF / 283 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). (See Table 3, Pin Assignment). ORDER INFORMATION. LEAD FREE FINISH
Model Line for this Datasheet
Text Version of Document
LTM8022

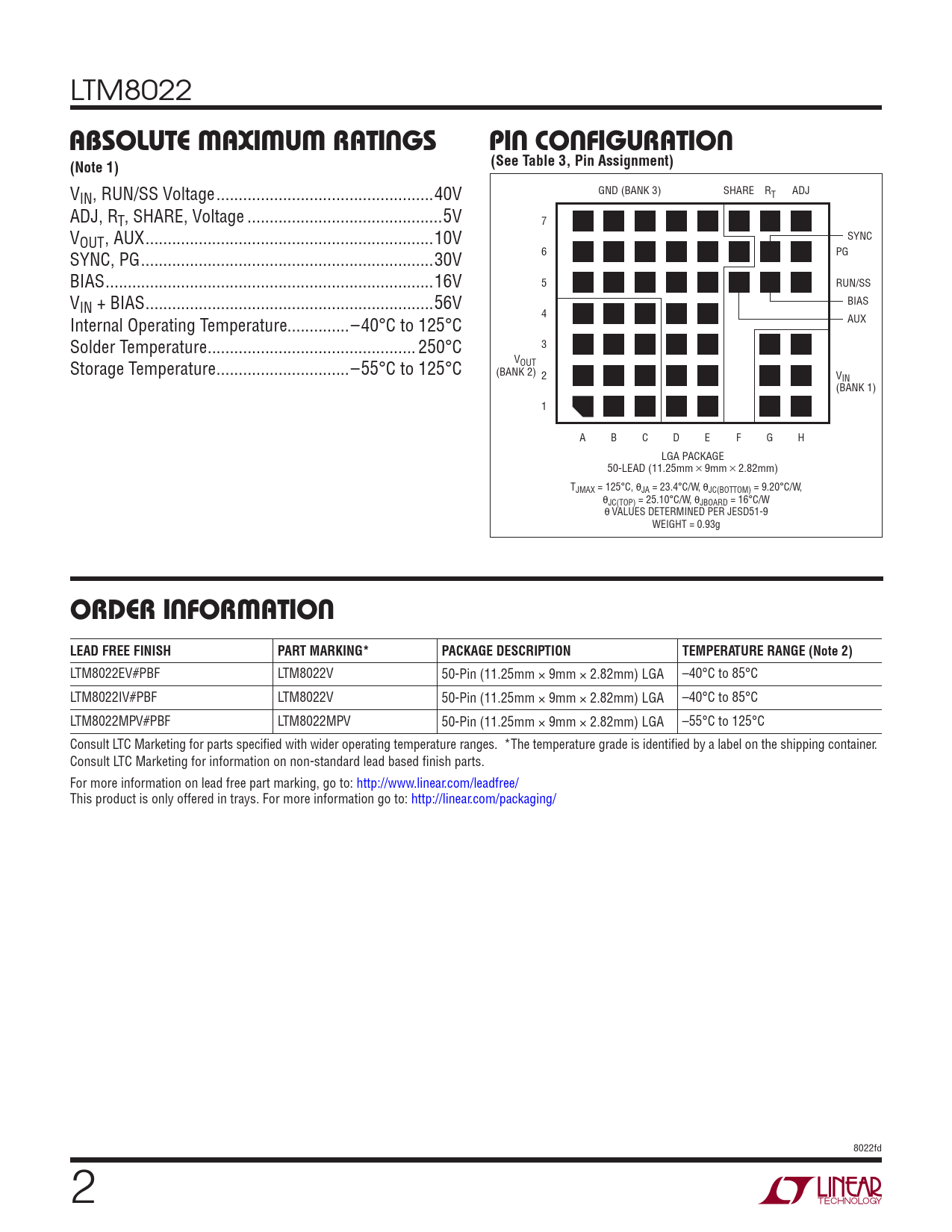

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1) (See Table 3, Pin Assignment)
V GND (BANK 3) SHARE R ADJ IN, RUN/SS Voltage ...40V T ADJ, RT, SHARE, Voltage ..5V 7 V SYNC OUT , AUX ...10V SYNC, PG ..30V 6 PG BIAS ..16V 5 RUN/SS V BIAS IN + BIAS ...56V 4 Internal Operating Temperature..–40°C to 125°C AUX Solder Temperature ... 250°C 3 V Storage Temperature ..–55°C to 125°C OUT (BANK 2) 2 VIN (BANK 1) 1 A B C D E F G H LGA PACKAGE 50-LEAD (11.25mm s 9mm s 2.82mm) TJMAX = 125°C, θJA = 23.4°C/W, θJC(BOTTOM) = 9.20°C/W, θJC(TOP) = 25.10°C/W, θJBOARD = 16°C/W θ VALUES DETERMINED PER JESD51-9 WEIGHT = 0.93g
ORDER INFORMATION LEAD FREE FINISH PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE (Note 2)
LTM8022EV#PBF LTM8022V 50-Pin (11.25mm × 9mm × 2.82mm) LGA –40°C to 85°C LTM8022IV#PBF LTM8022V 50-Pin (11.25mm × 9mm × 2.82mm) LGA –40°C to 85°C LTM8022MPV#PBF LTM8022MPV 50-Pin (11.25mm × 9mm × 2.82mm) LGA –55°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://linear.com/packaging/ 8022fd 2
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1) (See Table 3, Pin Assignment)
V GND (BANK 3) SHARE R ADJ IN, RUN/SS Voltage ...40V T ADJ, RT, SHARE, Voltage ..5V 7 V SYNC OUT , AUX ...10V SYNC, PG ..30V 6 PG BIAS ..16V 5 RUN/SS V BIAS IN + BIAS ...56V 4 Internal Operating Temperature..–40°C to 125°C AUX Solder Temperature ... 250°C 3 V Storage Temperature ..–55°C to 125°C OUT (BANK 2) 2 VIN (BANK 1) 1 A B C D E F G H LGA PACKAGE 50-LEAD (11.25mm s 9mm s 2.82mm) TJMAX = 125°C, θJA = 23.4°C/W, θJC(BOTTOM) = 9.20°C/W, θJC(TOP) = 25.10°C/W, θJBOARD = 16°C/W θ VALUES DETERMINED PER JESD51-9 WEIGHT = 0.93g
ORDER INFORMATION LEAD FREE FINISH PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE (Note 2)
LTM8022EV#PBF LTM8022V 50-Pin (11.25mm × 9mm × 2.82mm) LGA –40°C to 85°C LTM8022IV#PBF LTM8022V 50-Pin (11.25mm × 9mm × 2.82mm) LGA –40°C to 85°C LTM8022MPV#PBF LTM8022MPV 50-Pin (11.25mm × 9mm × 2.82mm) LGA –55°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://linear.com/packaging/ 8022fd 2
