Datasheet ADR512W (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 1.2 V Precision Low Noise Shunt Voltage Reference |
| Pages / Page | 12 / 5 — ADR512W. TYPICAL PERFORMANCE CHARACTERISTICS. 1.204. 1.203. 1.202. VIN = … |
| File Format / Size | PDF / 316 Kb |
| Document Language | English |

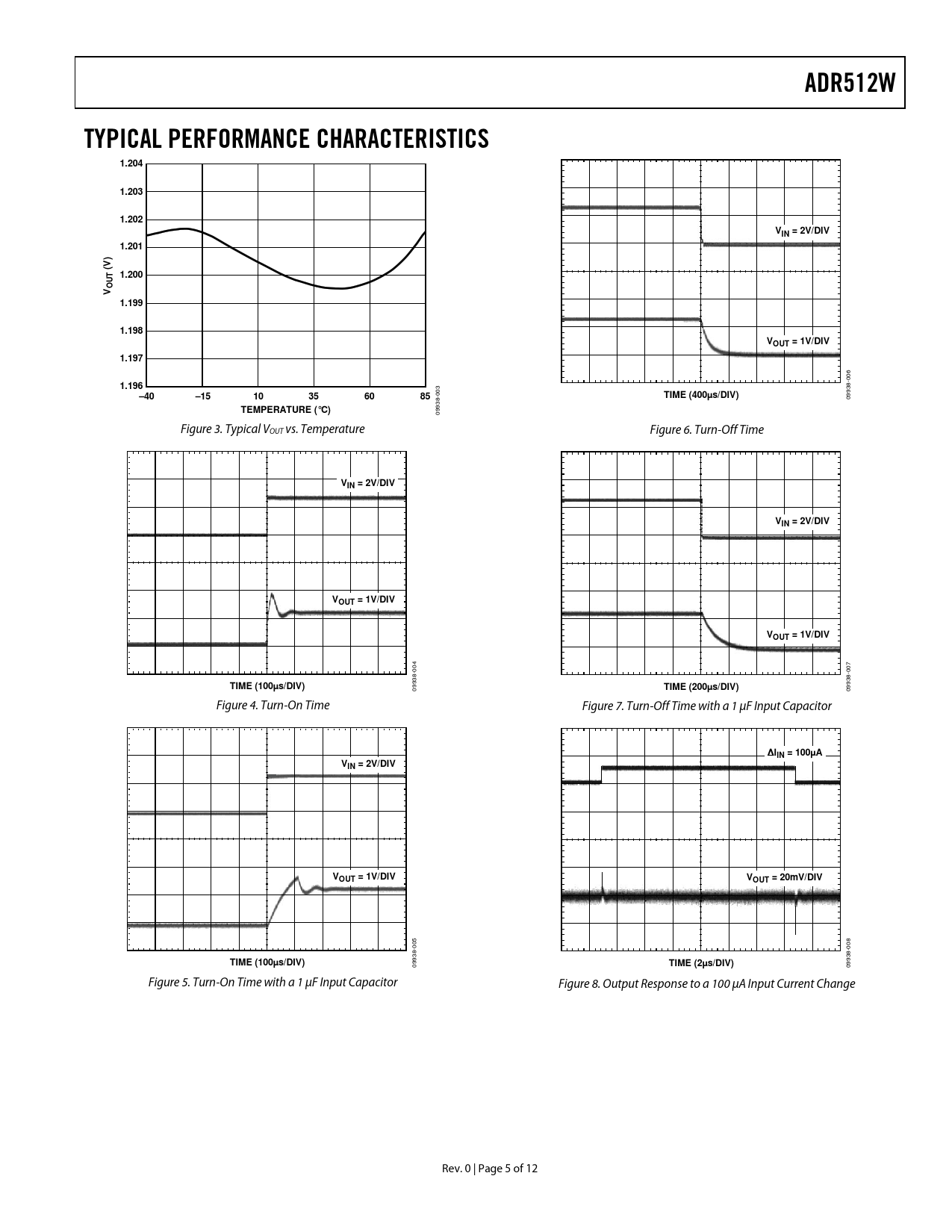

ADR512W. TYPICAL PERFORMANCE CHARACTERISTICS. 1.204. 1.203. 1.202. VIN = 2V/DIV. 1.201. (V). 1.200. UT OV. 1.199. 1.198. VOUT = 1V/DIV. 1.197
Model Line for this Datasheet
Text Version of Document
ADR512W TYPICAL PERFORMANCE CHARACTERISTICS 1.204 1.203 1.202 VIN = 2V/DIV 1.201 (V) 1.200 UT OV 1.199 1.198 VOUT = 1V/DIV 1.197
006
1.196 –40 –15 10 35 60 85
003
TIME (400µs/DIV)
09938-
TEMPERATURE (°C)
09938-
Figure 3. Typical VOUT vs. Temperature Figure 6. Turn-Off Time
VIN = 2V/DIV VIN = 2V/DIV VOUT = 1V/DIV VOUT = 1V/DIV
004 007
TIME (100µs/DIV)
09938-
TIME (200µs/DIV)
09938- Figure 4. Turn-On Time Figure 7. Turn-Off Time with a 1 μF Input Capacitor
ΔIIN = 100µA VIN = 2V/DIV VOUT = 1V/DIV VOUT = 20mV/DIV
005 008
TIME (100µs/DIV)
09938-
TIME (2µs/DIV)
09938- Figure 5. Turn-On Time with a 1 μF Input Capacitor Figure 8. Output Response to a 100 μA Input Current Change Rev. 0 | Page 5 of 12 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Terminology Applications Information Adjustable Precision Voltage Source Output Voltage Trim Using the ADR512W with Precision Data Converters Precise Negative Voltage Reference Outline Dimensions Ordering Guide Automotive Products
