Datasheet LTC6084, LTC6085 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Dual/Quad 1.5MHz, Rail-to-Rail, CMOS Amplifiers |
| Pages / Page | 16 / 3 — ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING. PACKAGE … |
| File Format / Size | PDF / 247 Kb |
| Document Language | English |
ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING. PACKAGE DESCRIPTION. SPECIFIED TEMPERATURE RANGE. The
Model Line for this Datasheet
Text Version of Document

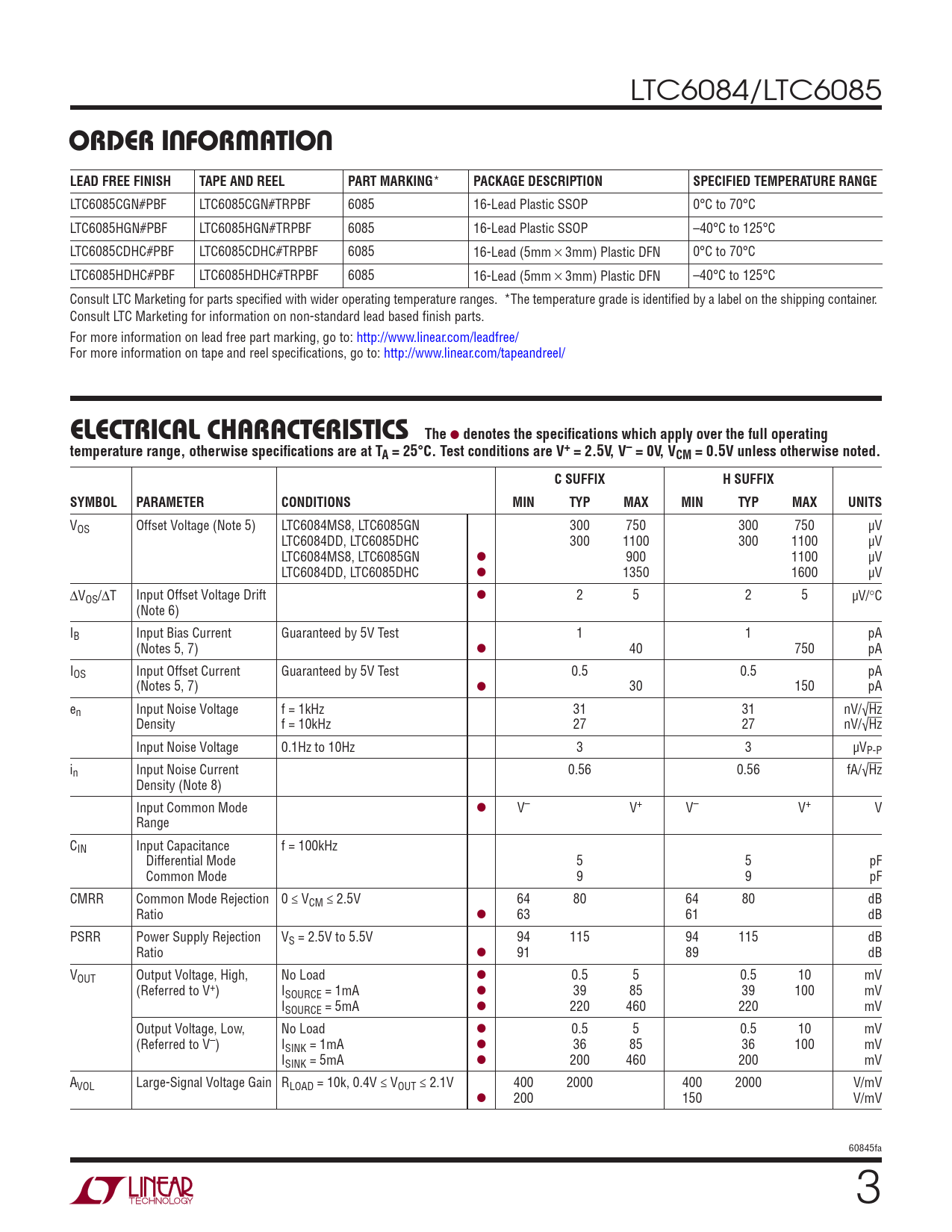

LTC6084/LTC6085
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6085CGN#PBF LTC6085CGN#TRPBF 6085 16-Lead Plastic SSOP 0°C to 70°C LTC6085HGN#PBF LTC6085HGN#TRPBF 6085 16-Lead Plastic SSOP –40°C to 125°C LTC6085CDHC#PBF LTC6085CDHC#TRPBF 6085 16-Lead (5mm × 3mm) Plastic DFN 0°C to 70°C LTC6085HDHC#PBF LTC6085HDHC#TRPBF 6085 16-Lead (5mm × 3mm) Plastic DFN –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
The ELECTRICAL CHARACTERISTICS
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. Test conditions are V+ = 2.5V, V– = 0V, VCM = 0.5V unless otherwise noted. C SUFFIX H SUFFIX SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Offset Voltage (Note 5) LTC6084MS8, LTC6085GN 300 750 300 750 μV LTC6084DD, LTC6085DHC 300 1100 300 1100 μV LTC6084MS8, LTC6085GN l 900 1100 μV LTC6084DD, LTC6085DHC l 1350 1600 μV ΔV l OS/ΔT Input Offset Voltage Drift 2 5 2 5 μV/°C (Note 6) IB Input Bias Current Guaranteed by 5V Test 1 1 pA (Notes 5, 7) l 40 750 pA IOS Input Offset Current Guaranteed by 5V Test 0.5 0.5 pA (Notes 5, 7) l 30 150 pA en Input Noise Voltage f = 1kHz 31 31 nV/√Hz Density f = 10kHz 27 27 nV/√Hz Input Noise Voltage 0.1Hz to 10Hz 3 3 μVP-P in Input Noise Current 0.56 0.56 fA/√Hz Density (Note 8) Input Common Mode l V– V+ V– V+ V Range CIN Input Capacitance f = 100kHz Differential Mode 5 5 pF Common Mode 9 9 pF CMRR Common Mode Rejection 0 ≤ VCM ≤ 2.5V 64 80 64 80 dB Ratio l 63 61 dB PSRR Power Supply Rejection VS = 2.5V to 5.5V 94 115 94 115 dB Ratio l 91 89 dB VOUT Output Voltage, High, No Load l 0.5 5 0.5 10 mV (Referred to V+) ISOURCE = 1mA l 39 85 39 100 mV ISOURCE = 5mA l 220 460 220 mV Output Voltage, Low, No Load l 0.5 5 0.5 10 mV (Referred to V–) ISINK = 1mA l 36 85 36 100 mV ISINK = 5mA l 200 460 200 mV AVOL Large-Signal Voltage Gain RLOAD = 10k, 0.4V ≤ VOUT ≤ 2.1V 400 2000 400 2000 V/mV l 200 150 V/mV 60845fa 3
