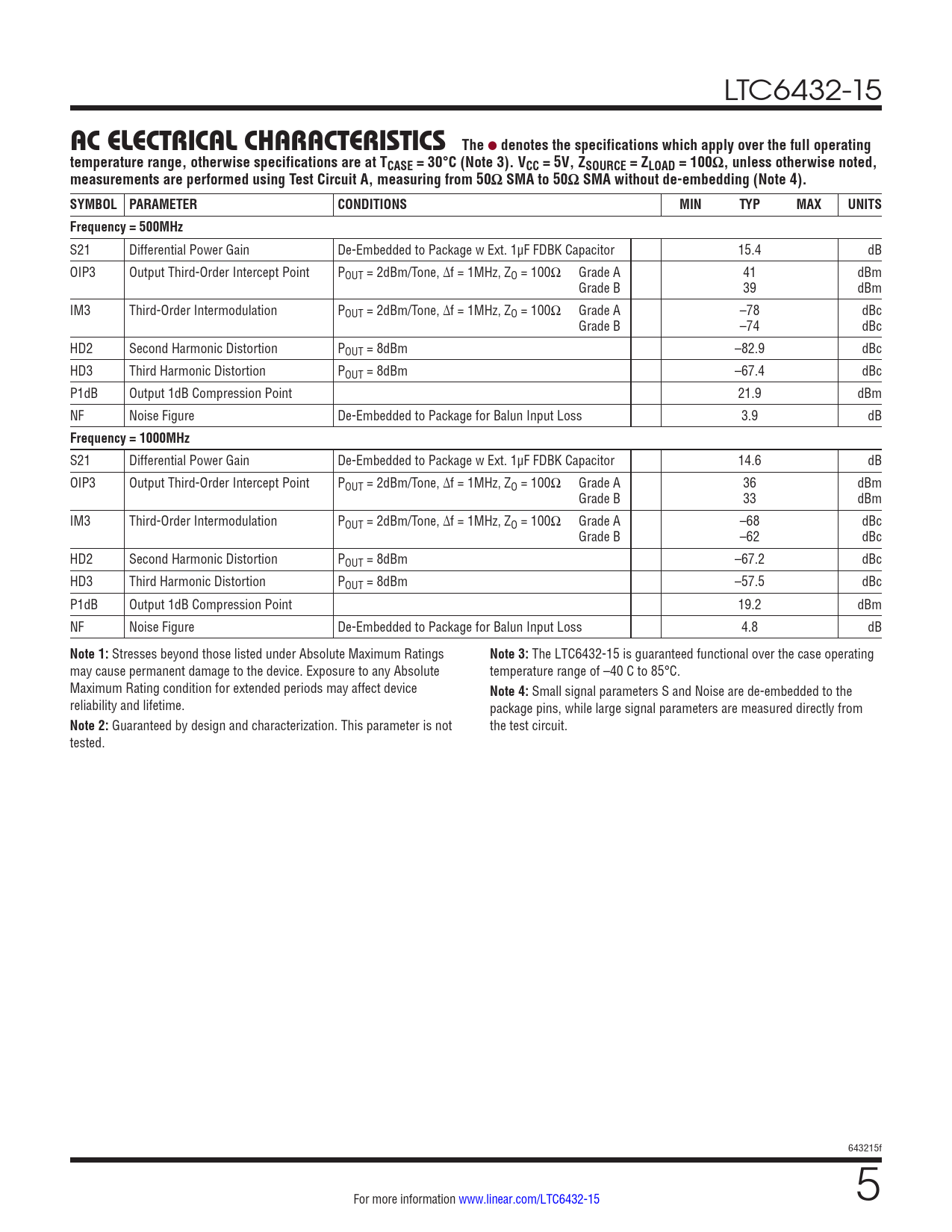

LTC6432-15
AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TCASE = 30°C (Note 3). VCC = 5V, ZSOURCE = ZLOAD = 100Ω, unless otherwise noted, measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Frequency = 500MHz
S21 Differential Power Gain De-Embedded to Package w Ext. 1µF FDBK Capacitor 15.4 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A 41 dBm Grade B 39 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A –78 dBc Grade B –74 dBc HD2 Second Harmonic Distortion POUT = 8dBm –82.9 dBc HD3 Third Harmonic Distortion POUT = 8dBm –67.4 dBc P1dB Output 1dB Compression Point 21.9 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.9 dB
Frequency = 1000MHz
S21 Differential Power Gain De-Embedded to Package w Ext. 1µF FDBK Capacitor 14.6 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A 36 dBm Grade B 33 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A –68 dBc Grade B –62 dBc HD2 Second Harmonic Distortion POUT = 8dBm –67.2 dBc HD3 Third Harmonic Distortion POUT = 8dBm –57.5 dBc P1dB Output 1dB Compression Point 19.2 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 4.8 dB
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
The LTC6432-15 is guaranteed functional over the case operating may cause permanent damage to the device. Exposure to any Absolute temperature range of –40 C to 85°C. Maximum Rating condition for extended periods may affect device
Note 4:
Small signal parameters S and Noise are de-embedded to the reliability and lifetime. package pins, while large signal parameters are measured directly from
Note 2:
Guaranteed by design and characterization. This parameter is not the test circuit. tested. 643215f For more information www.linear.com/LTC6432-15 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information Differential S Parameters Package Description Typical Application Related Parts
