Datasheet AD8369 (Analog Devices) - 23
| Manufacturer | Analog Devices |
| Description | 600 MHz, 45 dB Digitally Controlled Variable Gain Amplifier |
| Pages / Page | 24 / 23 — AD8369. AGILENT 8112A. PULSE. SPLITTER. TEK TDS 5104 DSO. GENERATOR. … |
| Revision | A |
| File Format / Size | PDF / 671 Kb |
| Document Language | English |
AD8369. AGILENT 8112A. PULSE. SPLITTER. TEK TDS 5104 DSO. GENERATOR. 5.0V. R & S SMT-03. SIGNAL GENERATOR. RF OUT. PULSE IN. 0.1. 1nF. 10nF
Model Line for this Datasheet
Text Version of Document
AD8369 AGILENT 8112A PULSE SPLITTER TEK TDS 5104 DSO GENERATOR VS 5.0V 2
F 10
F R & S SMT-03 SIGNAL GENERATOR RF OUT PULSE IN 0.1
F 1nF 10nF 16 15 14 13 12 11 10 9 100nF INHI COMM PWUP VPOS SENB FILT CMDC OPHI TEK P6248 TEK 1103 MINI-CIRCUITS PROBE TC4-1W 0
⍀
AD8369 1000
⍀
DIFF PROBE POWER SUPPLY 0
⍀
INLO COMM BIT0 BIT1 BIT2 BIT3 DENB OPLO 10nF 1 2 3 4 5 6 7 8 C2 100nF VS

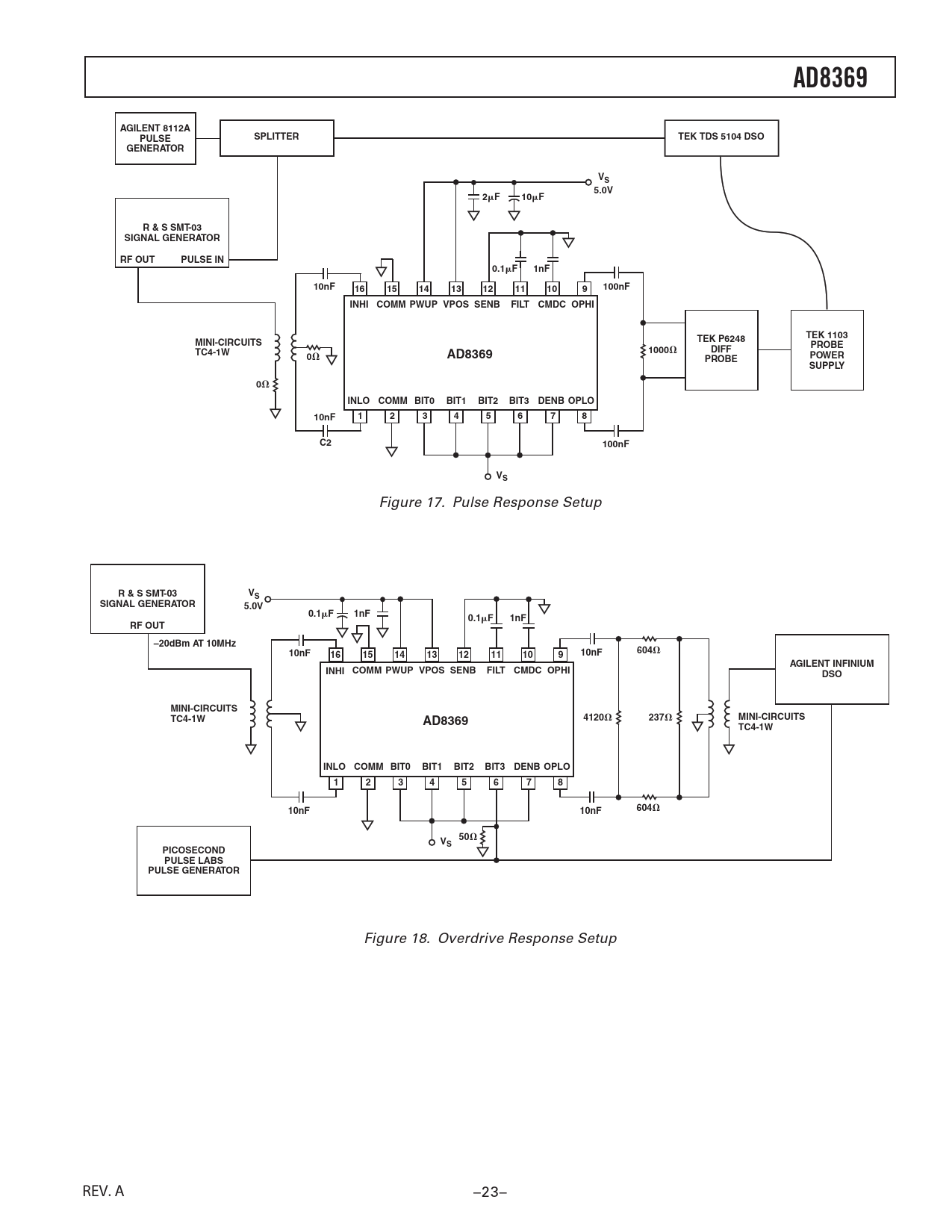

Figure 17. Pulse Response Setup
R & S SMT-03 VS SIGNAL GENERATOR 5.0V 0.1
F 1nF 0.1
F 1nF RF OUT –20dBm AT 10MHz 10nF 604 10nF
⍀
16 15 14 13 12 11 10 9 AGILENT INFINIUM INHI COMM PWUP VPOS SENB FILT CMDC OPHI DSO MINI-CIRCUITS R TC4-1W L AD8369 4120
⍀
237
⍀
MINI-CIRCUITS TC4-1W INLO COMM BIT0 BIT1 BIT2 BIT3 DENB OPLO 1 2 3 4 5 6 7 8 10nF 10nF 604
⍀
50
⍀
VS PICOSECOND PULSE LABS PULSE GENERATOR
Figure 18. Overdrive Response Setup REV. A –23– Document Outline Features Applications Functional Block Diagram Product Description Specifications Timing Specifications Absolute Maximum Ratings Pin Configuration Typical Performance Characteristics Theroy of Operation Input Attentuator and Output 3 dB Step Fixed Gain Amplifier Input and Output Interfaces Noise and Distortion Offset Control Loop Digital Control Basic Connections Input-Output Interface Reducing Gain Sensitivity to Input and Output Impedance Variation Operation from a Single-Sided Source Interfacing to an ADC PCB Layout Considerations Evaluation Board Evaluation Board Software Appendix Characterization Equipment Definitions of Selected Parameters Composite Waveform Assumption Outline Dimensions Ordering Guide Revision History
