Datasheet LT1223 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 100MHz Current Feedback Amplifier |
| Pages / Page | 16 / 2 — ABSOLUTE AXI U. RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). (OBSOLETE) … |
| File Format / Size | PDF / 258 Kb |
| Document Language | English |

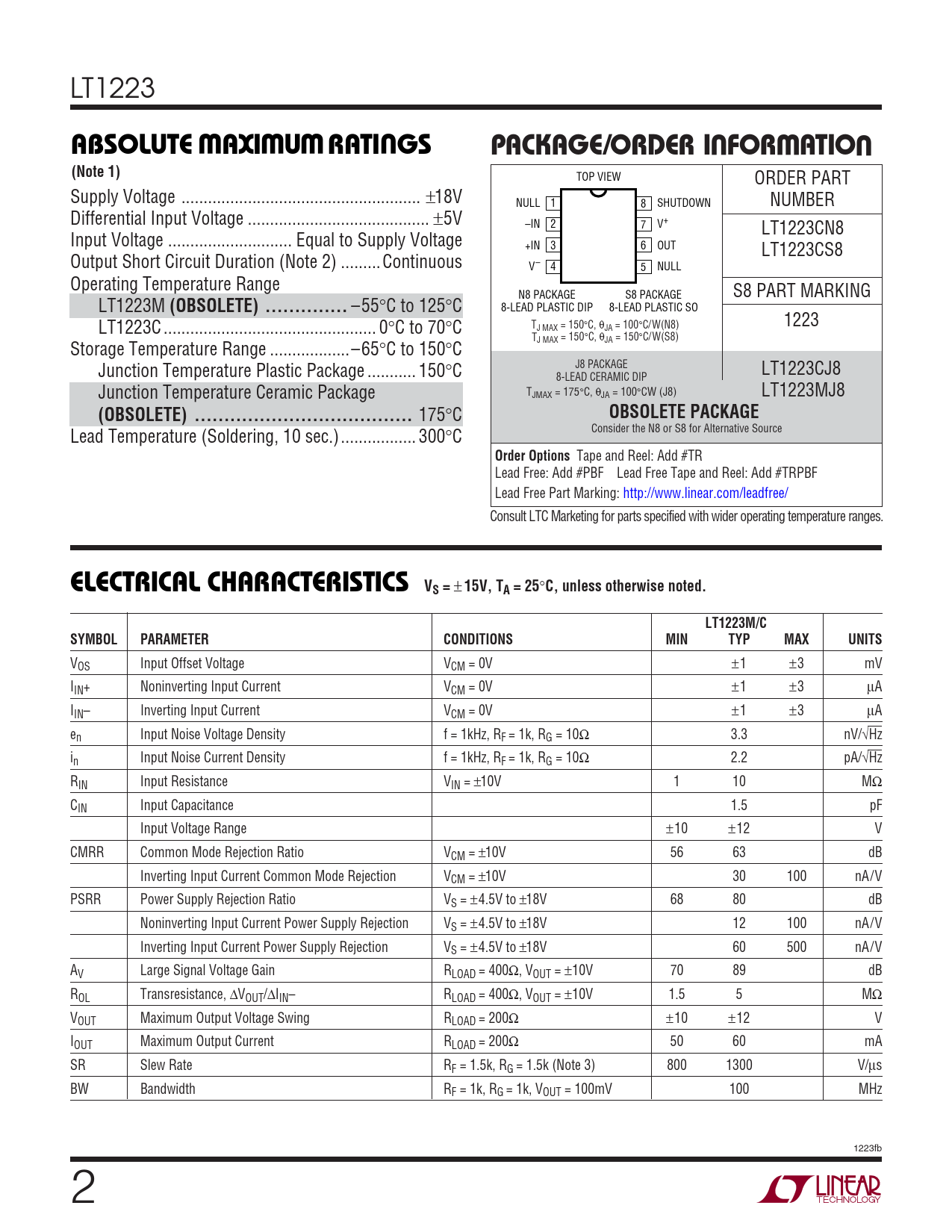

ABSOLUTE AXI U. RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). (OBSOLETE) .. (OBSOLETE) ... OBSOLETE PACKAGE. Order Options
Model Line for this Datasheet
Text Version of Document
LT1223
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
TOP VIEW ORDER PART Supply Voltage .. ±18V NULL 1 8 SHUTDOWN NUMBER Differential Input Voltage ... ±5V –IN 2 7 V+ LT1223CN8 Input Voltage .. Equal to Supply Voltage +IN 3 6 OUT LT1223CS8 Output Short Circuit Duration (Note 2) ... Continuous V– 4 5 NULL Operating Temperature Range N8 PACKAGE S8 PACKAGE S8 PART MARKING LT1223M
(OBSOLETE) ..
–55°C to 125°C 8-LEAD PLASTIC DIP 8-LEAD PLASTIC SO T 1223 J MAX = 150°C, θJA = 100°C/ W(N8) LT1223C .. 0°C to 70°C TJ MAX = 150°C, θJA = 150°C/W(S8) Storage Temperature Range ..–65°C to 150°C J8 PACKAGE Junction Temperature Plastic Package ... 150°C LT1223CJ8 8-LEAD CERAMIC DIP T Junction Temperature Ceramic Package JMAX = 175°C, θJA = 100°CW (J8) LT1223MJ8
(OBSOLETE) ...
175°C
OBSOLETE PACKAGE
Consider the N8 or S8 for Alternative Source Lead Temperature (Soldering, 10 sec.)... 300°C
Order Options
Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Free Part Marking: http://www.linear.com/leadfree/ Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS VS =
±
15V, TA = 25
°
C, unless otherwise noted. LT1223M/C SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = 0V ±1 ±3 mV IIN+ Noninverting Input Current VCM = 0V ±1 ±3 µA IIN– Inverting Input Current VCM = 0V ±1 ±3 µA en Input Noise Voltage Density f = 1kHz, RF = 1k, RG = 10Ω 3.3 nV/√Hz in Input Noise Current Density f = 1kHz, RF = 1k, RG = 10Ω 2.2 pA/√Hz RIN Input Resistance VIN = ±10V 1 10 MΩ CIN Input Capacitance 1.5 pF Input Voltage Range ±10 ±12 V CMRR Common Mode Rejection Ratio VCM = ±10V 56 63 dB Inverting Input Current Common Mode Rejection VCM = ±10V 30 100 nA/V PSRR Power Supply Rejection Ratio VS = ±4.5V to ±18V 68 80 dB Noninverting Input Current Power Supply Rejection VS = ±4.5V to ±18V 12 100 nA/V Inverting Input Current Power Supply Rejection VS = ±4.5V to ±18V 60 500 nA/V AV Large Signal Voltage Gain RLOAD = 400Ω, VOUT = ±10V 70 89 dB ROL Transresistance, ∆VOUT/∆IIN– RLOAD = 400Ω, VOUT = ±10V 1.5 5 MΩ VOUT Maximum Output Voltage Swing RLOAD = 200Ω ±10 ±12 V IOUT Maximum Output Current RLOAD = 200Ω 50 60 mA SR Slew Rate RF = 1.5k, RG = 1.5k (Note 3) 800 1300 V/µs BW Bandwidth RF = 1k, RG = 1k, VOUT = 100mV 100 MHz 1223fb 2
