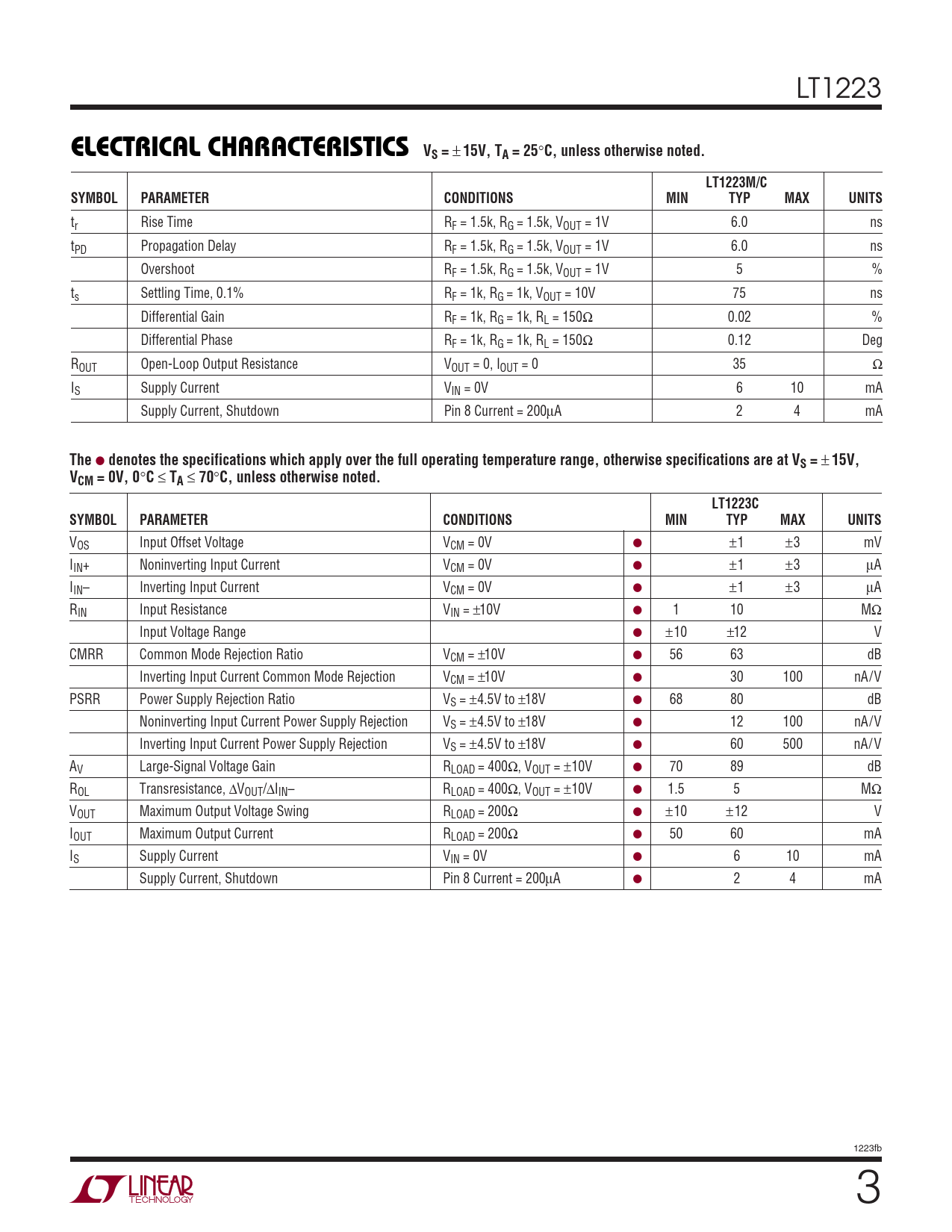

ELECTRICAL CHARACTERISTICS VS =
±
15V, TA = 25
°
C, unless otherwise noted. LT1223M/C SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tr Rise Time RF = 1.5k, RG = 1.5k, VOUT = 1V 6.0 ns tPD Propagation Delay RF = 1.5k, RG = 1.5k, VOUT = 1V 6.0 ns Overshoot RF = 1.5k, RG = 1.5k, VOUT = 1V 5 % ts Settling Time, 0.1% RF = 1k, RG = 1k, VOUT = 10V 75 ns Differential Gain RF = 1k, RG = 1k, RL = 150Ω 0.02 % Differential Phase RF = 1k, RG = 1k, RL = 150Ω 0.12 Deg ROUT Open-Loop Output Resistance VOUT = 0, IOUT = 0 35 Ω IS Supply Current VIN = 0V 6 10 mA Supply Current, Shutdown Pin 8 Current = 200µA 2 4 mA
The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at VS =
±
15V, VCM = 0V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. LT1223C SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = 0V ● ±1 ±3 mV IIN+ Noninverting Input Current VCM = 0V ● ±1 ±3 µA IIN– Inverting Input Current VCM = 0V ● ±1 ±3 µA RIN Input Resistance VIN = ±10V ● 1 10 MΩ Input Voltage Range ● ±10 ±12 V CMRR Common Mode Rejection Ratio VCM = ±10V ● 56 63 dB Inverting Input Current Common Mode Rejection VCM = ±10V ● 30 100 nA/V PSRR Power Supply Rejection Ratio VS = ±4.5V to ±18V ● 68 80 dB Noninverting Input Current Power Supply Rejection VS = ±4.5V to ±18V ● 12 100 nA/V Inverting Input Current Power Supply Rejection VS = ±4.5V to ±18V ● 60 500 nA/ V AV Large-Signal Voltage Gain RLOAD = 400Ω, VOUT = ±10V ● 70 89 dB ROL Transresistance, ∆VOUT/∆IIN– RLOAD = 400Ω, VOUT = ±10V ● 1.5 5 MΩ VOUT Maximum Output Voltage Swing RLOAD = 200Ω ● ±10 ±12 V IOUT Maximum Output Current RLOAD = 200Ω ● 50 60 mA IS Supply Current VIN = 0V ● 6 10 mA Supply Current, Shutdown Pin 8 Current = 200µA ● 2 4 mA 1223fb 3
