Datasheet LT1630, LT1631 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 30MHz, 10V/µs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps |
| Pages / Page | 20 / 7 — TA = 25°C, VS = ±15V, VCM = 0V, VOUT = 0V, unless otherwise noted. … |
| File Format / Size | PDF / 367 Kb |
| Document Language | English |
TA = 25°C, VS = ±15V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNITS
Model Line for this Datasheet
Text Version of Document
LT1630/LT1631 e
lecTrical characTerisTics

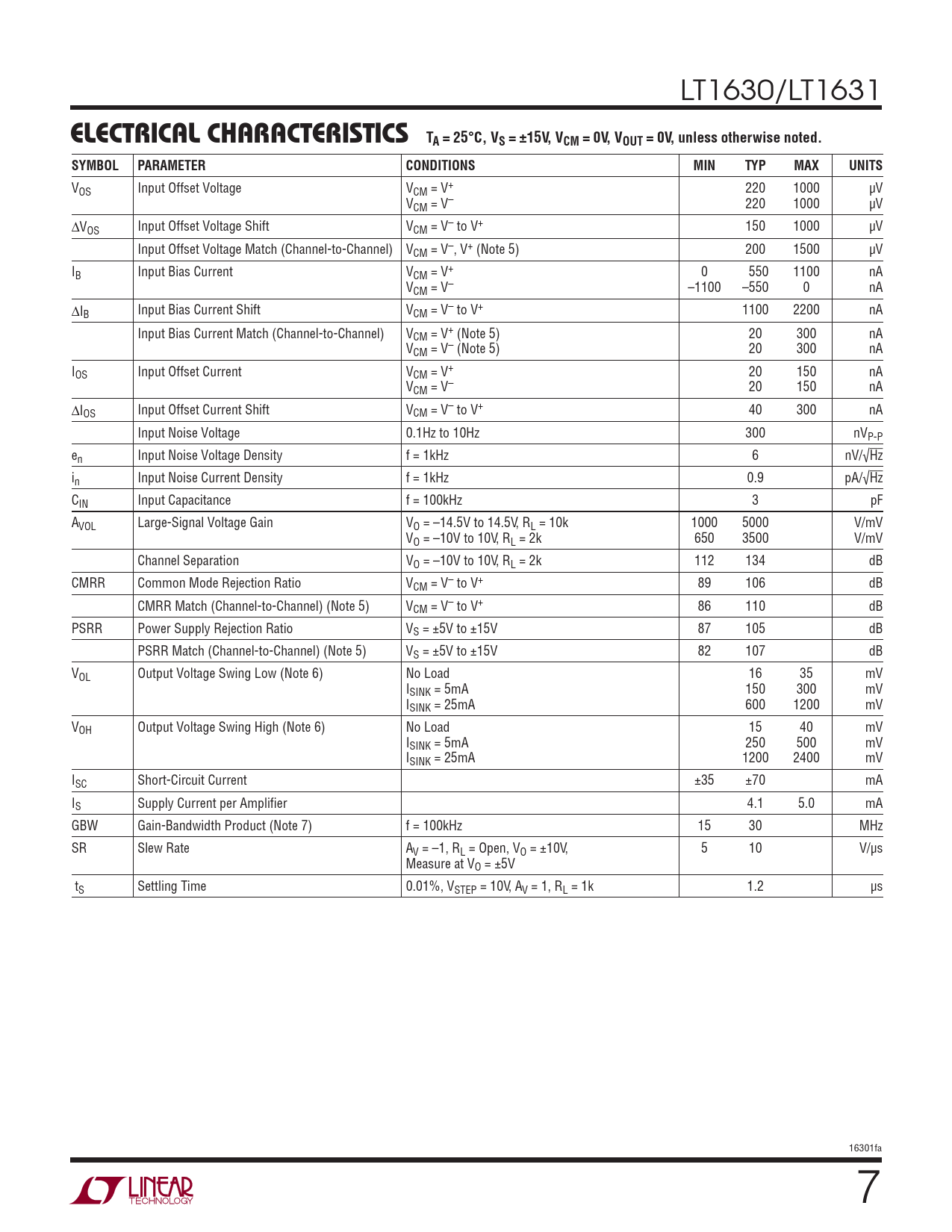

TA = 25°C, VS = ±15V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ 220 1000 µV VCM = V– 220 1000 µV ∆VOS Input Offset Voltage Shift VCM = V– to V+ 150 1000 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V–, V+ (Note 5) 200 1500 µV IB Input Bias Current VCM = V+ 0 550 1100 nA VCM = V– –1100 –550 0 nA ∆IB Input Bias Current Shift VCM = V– to V+ 1100 2200 nA Input Bias Current Match (Channel-to-Channel) VCM = V+ (Note 5) 20 300 nA VCM = V– (Note 5) 20 300 nA IOS Input Offset Current VCM = V+ 20 150 nA VCM = V– 20 150 nA ∆IOS Input Offset Current Shift VCM = V– to V+ 40 300 nA Input Noise Voltage 0.1Hz to 10Hz 300 nVP-P en Input Noise Voltage Density f = 1kHz 6 nV/√Hz in Input Noise Current Density f = 1kHz 0.9 pA/√Hz CIN Input Capacitance f = 100kHz 3 pF AVOL Large-Signal Voltage Gain VO = –14.5V to 14.5V, RL = 10k 1000 5000 V/mV VO = –10V to 10V, RL = 2k 650 3500 V/mV Channel Separation VO = –10V to 10V, RL = 2k 112 134 dB CMRR Common Mode Rejection Ratio VCM = V– to V+ 89 106 dB CMRR Match (Channel-to-Channel) (Note 5) VCM = V– to V+ 86 110 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V 87 105 dB PSRR Match (Channel-to-Channel) (Note 5) VS = ±5V to ±15V 82 107 dB VOL Output Voltage Swing Low (Note 6) No Load 16 35 mV ISINK = 5mA 150 300 mV ISINK = 25mA 600 1200 mV VOH Output Voltage Swing High (Note 6) No Load 15 40 mV ISINK = 5mA 250 500 mV ISINK = 25mA 1200 2400 mV ISC Short-Circuit Current ±35 ±70 mA IS Supply Current per Amplifier 4.1 5.0 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz 15 30 MHz SR Slew Rate AV = –1, RL = Open, VO = ±10V, 5 10 V/µs Measure at VO = ±5V tS Settling Time 0.01%, VSTEP = 10V, AV = 1, RL = 1k 1.2 µs 16301fa Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
lecTrical characTerisTics
TA = 25°C, VS = ±15V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ 220 1000 µV VCM = V– 220 1000 µV ∆VOS Input Offset Voltage Shift VCM = V– to V+ 150 1000 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V–, V+ (Note 5) 200 1500 µV IB Input Bias Current VCM = V+ 0 550 1100 nA VCM = V– –1100 –550 0 nA ∆IB Input Bias Current Shift VCM = V– to V+ 1100 2200 nA Input Bias Current Match (Channel-to-Channel) VCM = V+ (Note 5) 20 300 nA VCM = V– (Note 5) 20 300 nA IOS Input Offset Current VCM = V+ 20 150 nA VCM = V– 20 150 nA ∆IOS Input Offset Current Shift VCM = V– to V+ 40 300 nA Input Noise Voltage 0.1Hz to 10Hz 300 nVP-P en Input Noise Voltage Density f = 1kHz 6 nV/√Hz in Input Noise Current Density f = 1kHz 0.9 pA/√Hz CIN Input Capacitance f = 100kHz 3 pF AVOL Large-Signal Voltage Gain VO = –14.5V to 14.5V, RL = 10k 1000 5000 V/mV VO = –10V to 10V, RL = 2k 650 3500 V/mV Channel Separation VO = –10V to 10V, RL = 2k 112 134 dB CMRR Common Mode Rejection Ratio VCM = V– to V+ 89 106 dB CMRR Match (Channel-to-Channel) (Note 5) VCM = V– to V+ 86 110 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V 87 105 dB PSRR Match (Channel-to-Channel) (Note 5) VS = ±5V to ±15V 82 107 dB VOL Output Voltage Swing Low (Note 6) No Load 16 35 mV ISINK = 5mA 150 300 mV ISINK = 25mA 600 1200 mV VOH Output Voltage Swing High (Note 6) No Load 15 40 mV ISINK = 5mA 250 500 mV ISINK = 25mA 1200 2400 mV ISC Short-Circuit Current ±35 ±70 mA IS Supply Current per Amplifier 4.1 5.0 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz 15 30 MHz SR Slew Rate AV = –1, RL = Open, VO = ±10V, 5 10 V/µs Measure at VO = ±5V tS Settling Time 0.01%, VSTEP = 10V, AV = 1, RL = 1k 1.2 µs 16301fa Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
