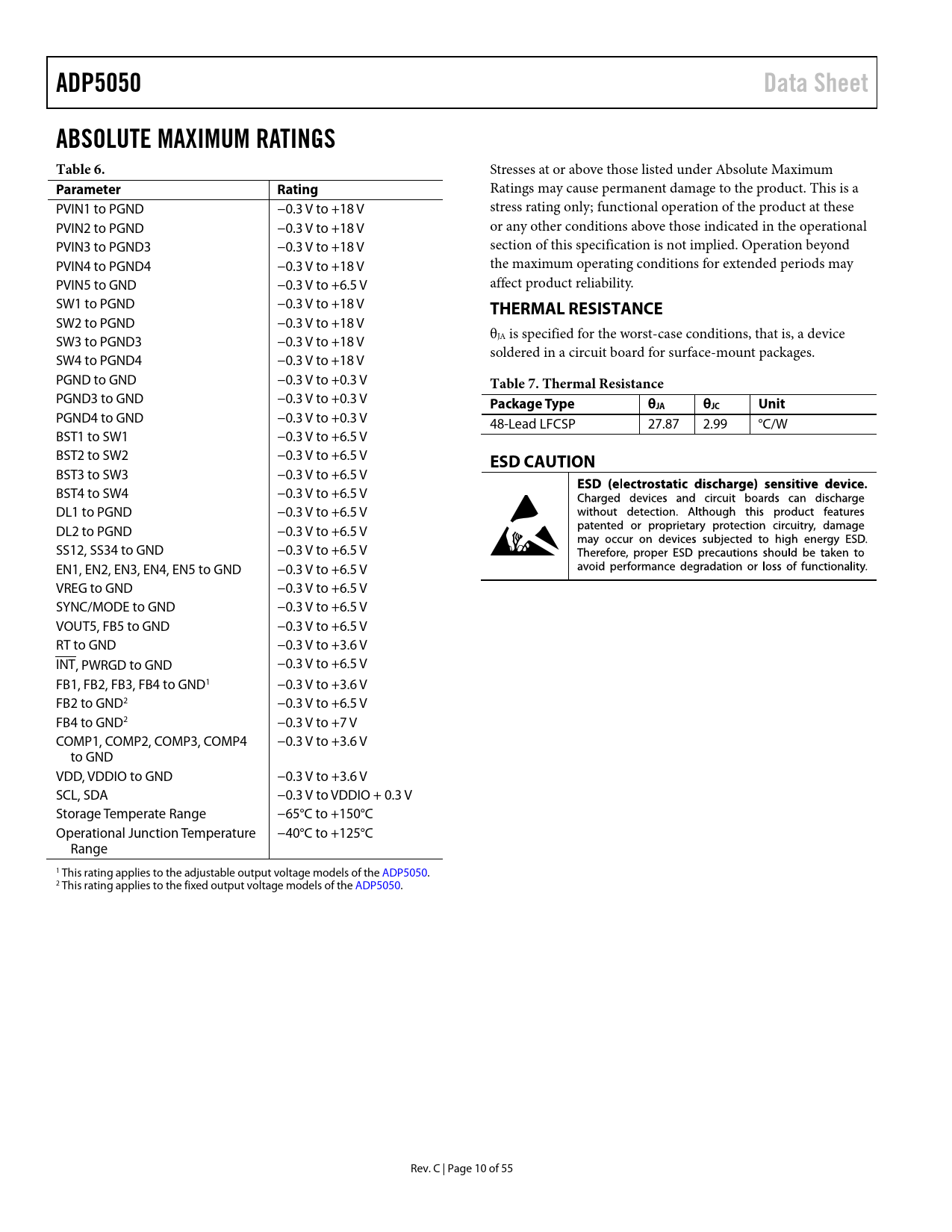

ADP5050 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 6.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a PVIN1 to PGND −0.3 V to +18 V stress rating only; functional operation of the product at these PVIN2 to PGND −0.3 V to +18 V or any other conditions above those indicated in the operational PVIN3 to PGND3 −0.3 V to +18 V section of this specification is not implied. Operation beyond PVIN4 to PGND4 −0.3 V to +18 V the maximum operating conditions for extended periods may PVIN5 to GND −0.3 V to +6.5 V affect product reliability. SW1 to PGND −0.3 V to +18 V
THERMAL RESISTANCE
SW2 to PGND −0.3 V to +18 V θ SW3 to PGND3 −0.3 V to +18 V JA is specified for the worst-case conditions, that is, a device SW4 to PGND4 −0.3 V to +18 V soldered in a circuit board for surface-mount packages. PGND to GND −0.3 V to +0.3 V
Table 7. Thermal Resistance
PGND3 to GND −0.3 V to +0.3 V
Package Type θJA θJC Unit
PGND4 to GND −0.3 V to +0.3 V 48-Lead LFCSP 27.87 2.99 °C/W BST1 to SW1 −0.3 V to +6.5 V BST2 to SW2 −0.3 V to +6.5 V
