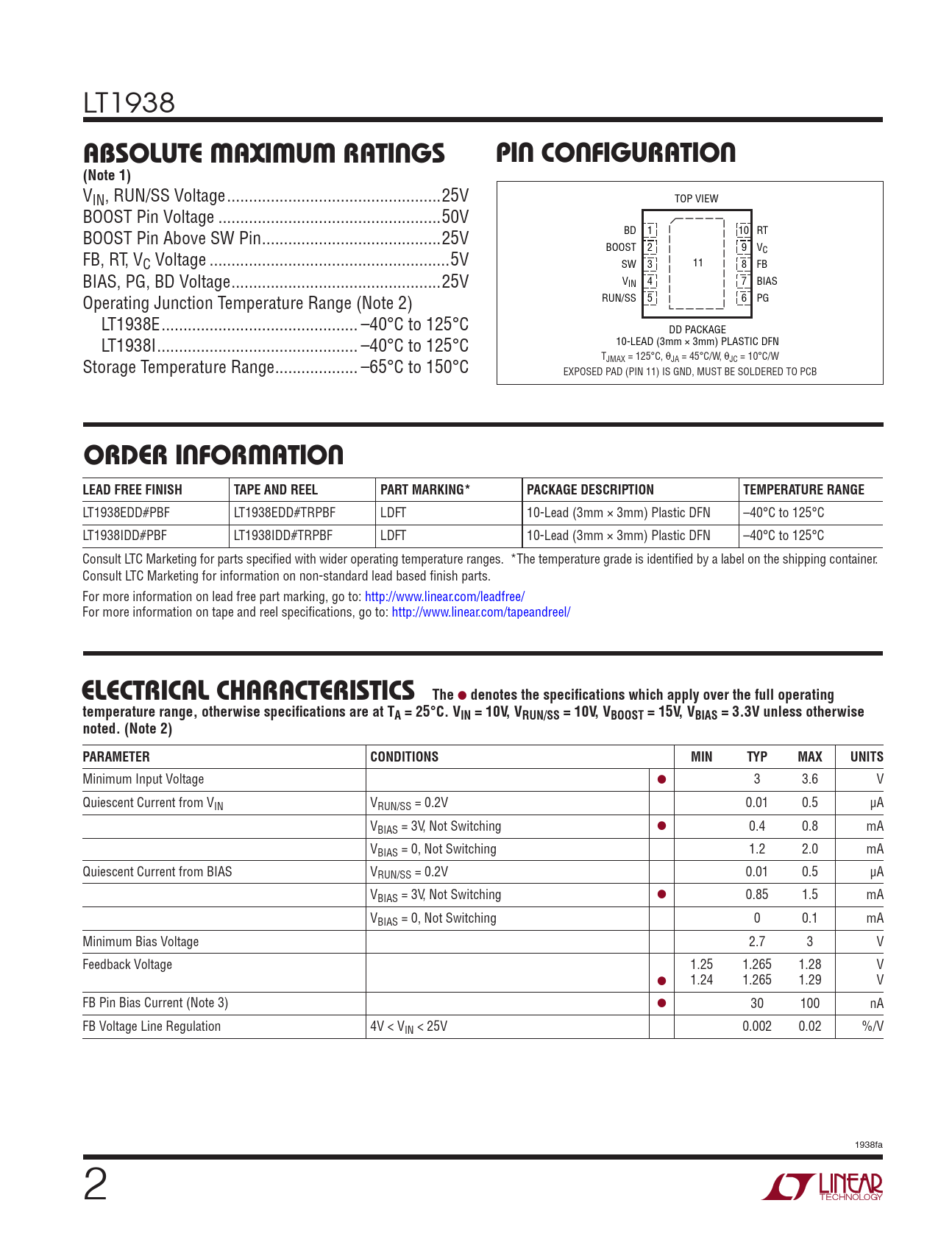

AbSOLUTE MAxIMUM RATINgS. PIN CONFIgURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LT1938
AbSOLUTE MAxIMUM RATINgS PIN CONFIgURATION (Note 1)
VIN, RUN/SS Voltage ...25V TOP VIEW BOOST Pin Voltage ...50V BOOST Pin Above SW Pin ...25V BD 1 10 RT BOOST 2 9 V FB, RT, V C C Voltage ...5V SW 3 11 8 FB BIAS, PG, BD Voltage ..25V VIN 4 7 BIAS Operating Junction Temperature Range (Note 2) RUN/SS 5 6 PG LT1938E ... –40°C to 125°C DD PACKAGE LT1938I .. –40°C to 125°C 10-LEAD (3mm × 3mm) PLASTIC DFN Storage Temperature Range ... –65°C to 150°C TJMAX = 125°C, θJA = 45°C/W, θJC = 10°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1938EDD#PBF LT1938EDD#TRPBF LDFT 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT1938IDD#PBF LT1938IDD#TRPBF LDFT 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
