ADSP-BF522/ADSP-BF523/ADSP-BF524/ADSP-BF525/ADSP-BF526/ADSP-BF527

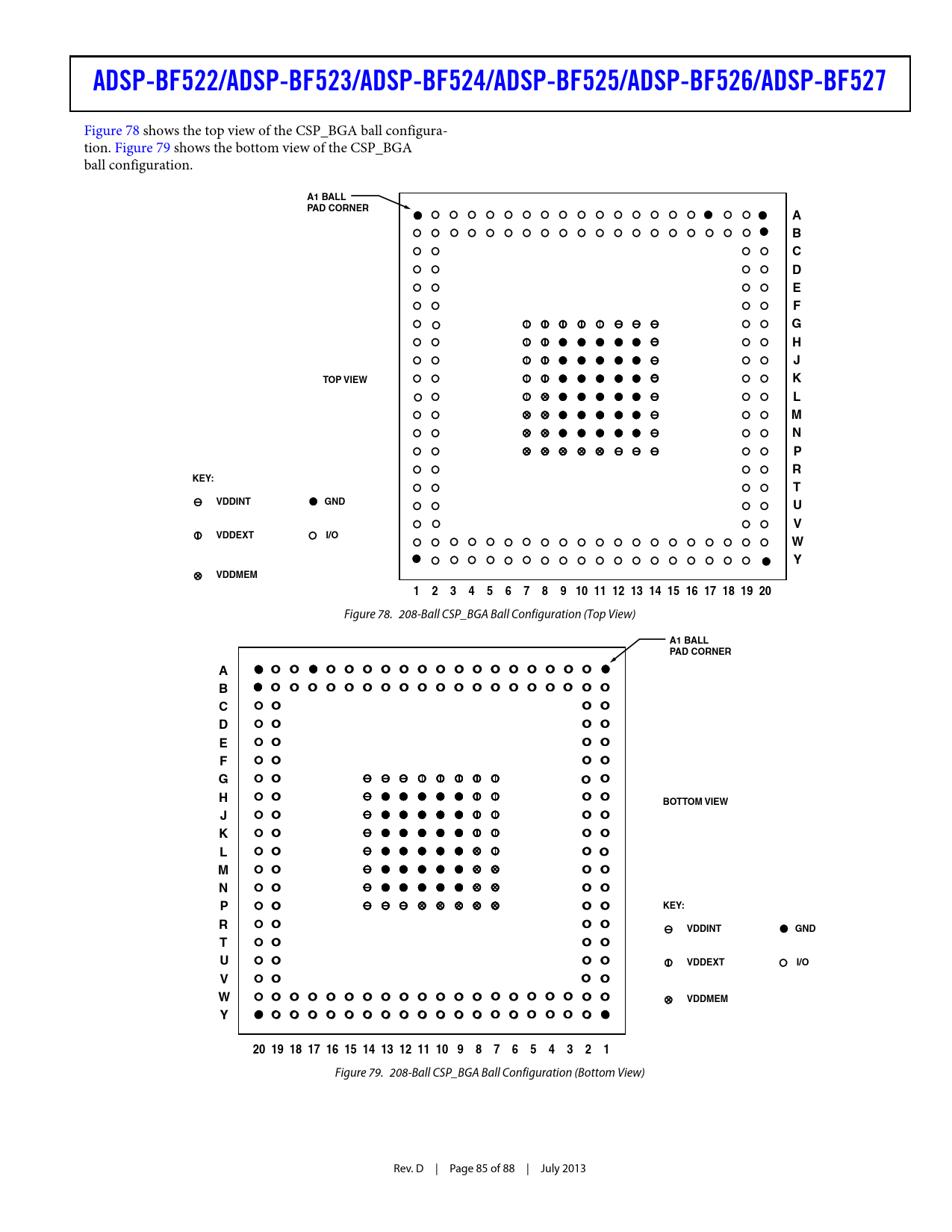

Figure 78 shows the top view of the CSP_BGA ball configura- tion. Figure 79 shows the bottom view of the CSP_BGA ball configuration.
A1 BALL PAD CORNER A B C D E F G H J TOP VIEW K L M N P R KEY: T VDDINT GND U V VDDEXT I/O W Y VDDMEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Figure 78. 208-Ball CSP_BGA Ball Configuration (Top View)
A1 BALL PAD CORNER A B C D E F G H BOTTOM VIEW J K L M N P KEY: R VDDINT GND T U VDDEXT I/O V W VDDMEM Y 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
