Single-Channel, 64-Position, Push Button,. ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer. Data Sheet. AD5116

Datasheet AD5116 Analog Devices, Revision: B

Model Line for this Datasheet

Text Version of Document

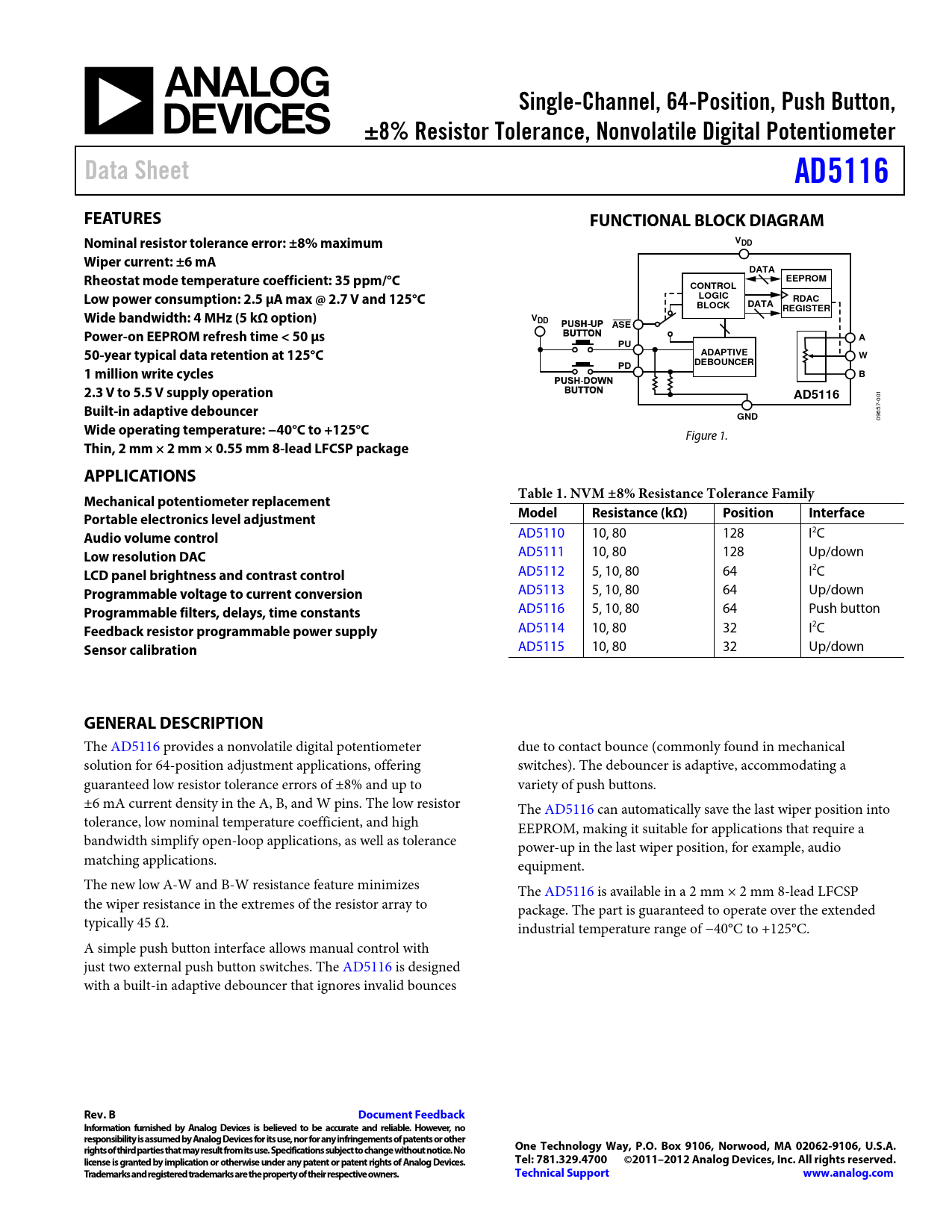

Single-Channel, 64-Position, Push Button, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer Data Sheet AD5116 FEATURES FUNCTIONAL BLOCK DIAGRAM Nominal resistor tolerance error: ±8% maximum VDD Wiper current: ±6 mA DATA Rheostat mode temperature coefficient: 35 ppm/°C EEPROM CONTROL Low power consumption: 2.5 µA max @ 2.7 V and 125°C LOGIC RDAC BLOCK DATA REGISTER Wide bandwidth: 4 MHz (5 kΩ option) VDD ASE Power-on EEPROM refresh time < 50 μs A PU 50-year typical data retention at 125°C ADAPTIVE W DEBOUNCER 1 million write cycles PD B 2.3 V to 5.5 V supply operation AD5116
001
Built-in adaptive debouncer GND
09657-
Wide operating temperature: −40°C to +125°C
Figure 1.
Thin, 2 mm × 2 mm × 0.55 mm 8-lead LFCSP package APPLICATIONS Mechanical potentiometer replacement Table 1. NVM ±8% Resistance Tolerance Family Portable electronics level adjustment Model Resistance (kΩ) Position Interface Audio volume control
AD5110 10, 80 128 I2C
Low resolution DAC
AD5111 10, 80 128 Up/down
LCD panel brightness and contrast control
AD5112 5, 10, 80 64 I2C
Programmable voltage to current conversion
AD5113 5, 10, 80 64 Up/down
Programmable filters, delays, time constants
AD5116 5, 10, 80 64 Push button
Feedback resistor programmable power supply
AD5114 10, 80 32 I2C
Sensor calibration
AD5115 10, 80 32 Up/down
GENERAL DESCRIPTION
The AD5116 provides a nonvolatile digital potentiometer due to contact bounce (commonly found in mechanical solution for 64-position adjustment applications, offering switches). The debouncer is adaptive, accommodating a guaranteed low resistor tolerance errors of ±8% and up to variety of push buttons. ±6 mA current density in the A, B, and W pins. The low resistor The AD5116 can automatical y save the last wiper position into tolerance, low nominal temperature coefficient, and high EEPROM, making it suitable for applications that require a bandwidth simplify open-loop applications, as well as tolerance power-up in the last wiper position, for example, audio matching applications. equipment. The new low A-W and B-W resistance feature minimizes The AD5116 is available in a 2 mm × 2 mm 8-lead LFCSP the wiper resistance in the extremes of the resistor array to package. The part is guaranteed to operate over the extended typical y 45 Ω. industrial temperature range of −40°C to +125°C. A simple push button interface al ows manual control with just two external push button switches. The AD5116 is designed with a built-in adaptive debouncer that ignores invalid bounces
