Datasheet ADSP-21477, ADSP-21478, ADSP-21479 (Analog Devices) - 26

ADSP-21477 /ADSP-21478 /ADSP-21479 PMCTL (SDCKR) PMCTL PLL (PLLBP) CLKIN f f CCLK CLKIN INPUT LOOP VCO SDRAM PLL VCO DIVIDER FILTER DIVIDER DIVIDER MUX fCCLK BYPASS XTAL SDCLK BUF MUX CLK_CFGx/ BYPASS PMCTL PMCTL PMCTL (2 × PLLM) PCLK (PLLD) DIVIDE PMCTL (INDIV) BY 2 (PLLBP) f ÷ (2 × PLLM) VCO PCLK CCLK CLKOUT (TEST ONLY)* DELAY OF BUF RESETOUT RESETOUT RESET PIN 4096 CLKIN MUX CYCLES CORERST *CLKOUT (TEST ONLY) FREQUENCY IS THE SAME AS fINPUT. THIS SIGNAL IS NOT SPECIFIED OR SUPPORTED FOR ANY DESIGN.

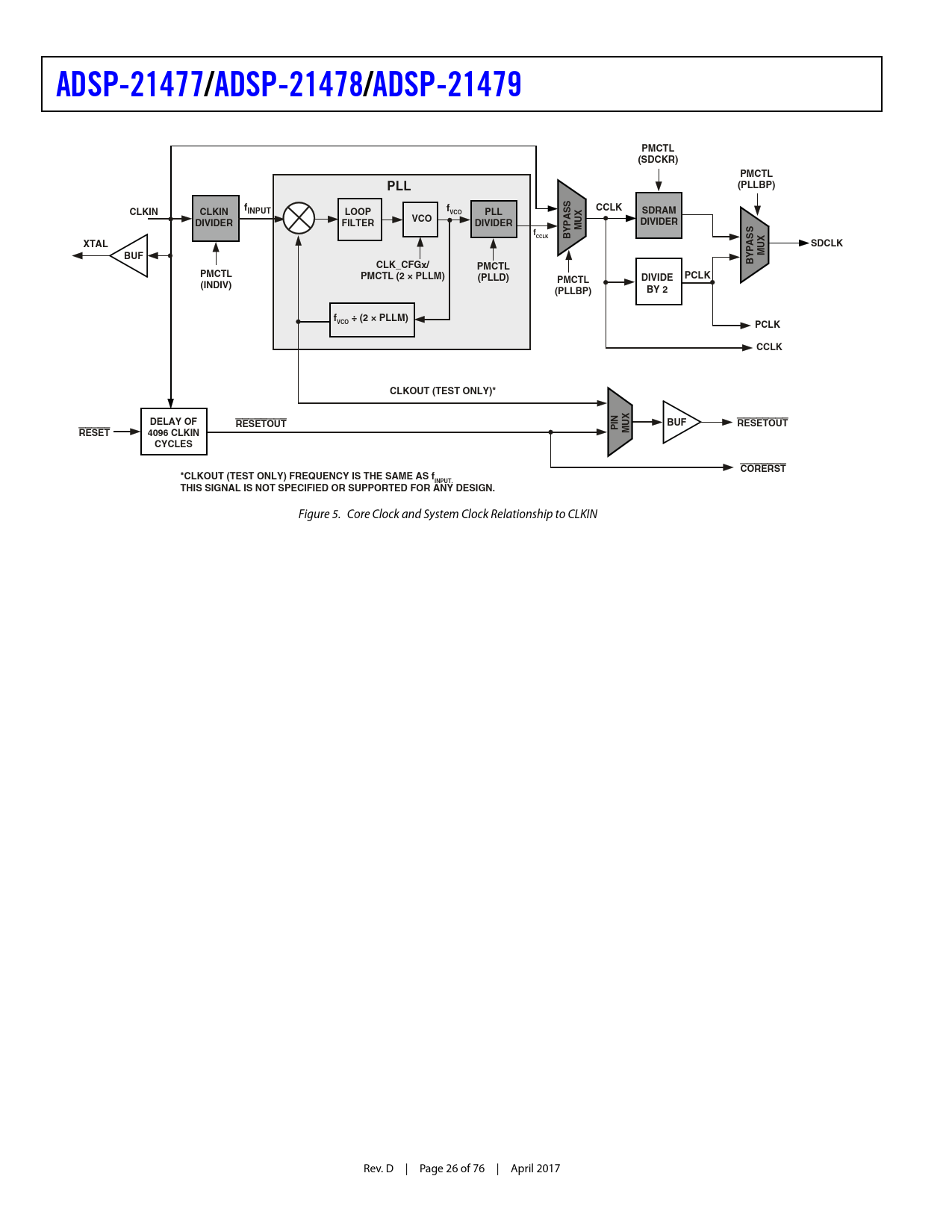

Figure 5. Core Clock and System Clock Relationship to CLKIN Rev. D | Page 26 of 76 | April 2017 Document Outline SHARC Processor Summary Revision History Product Application Restriction General Description Family Core Architecture SIMD Computational Engine Independent, Parallel Computation Units Timer Data Register File Context Switch Universal Registers Single-Cycle Fetch of Instruction and Four Operands Instruction Cache Data Address Generators with Zero-Overhead Hardware Circular Buffer Support Flexible Instruction Set Variable Instruction Set Architecture (VISA) On-Chip Memory On-Chip Memory Bandwidth ROM Based Security Digital Transmission Content Protection Family Peripheral Architecture External Memory External Port SIMD Access to External Memory VISA and ISA Access to External Memory SDRAM Controller Asynchronous Memory Controller External Port Throughput MediaLB Digital Applications Interface (DAI) Serial Ports (SPORTs) S/PDIF-Compatible Digital Audio Receiver/Transmitter Asynchronous Sample Rate Converter (SRC) Input Data Port Precision Clock Generators Digital Peripheral Interface (DPI) Serial Peripheral (Compatible) Interface (SPI) UART Port Pulse-Width Modulation Timers 2-Wire Interface Port (TWI) Shift Register I/O Processor Features DMA Controller Delay Line DMA Scatter/Gather DMA FFT Accelerator FIR Accelerator IIR Accelerator Watchdog Timer (WDT) Real-Time Clock System Design Program Booting Power Supplies Target Board JTAG Emulator Connector Development Tools Integrated Development Environments (IDEs) EZ-KIT Lite Evaluation Board EZ-KIT Lite Evaluation Kits Software Add-Ins for CrossCore Embedded Studio Board Support Packages for Evaluation Hardware Middleware Packages Algorithmic Modules Designing an Emulator-Compatible DSP Board (Target) Additional Information Related Signal Chains Pin Function Descriptions Specifications Operating Conditions Electrical Characteristics Total Power Dissipation Maximum Power Dissipation Package Information ESD Sensitivity Absolute Maximum Ratings Timing Specifications Core Clock Requirements Voltage Controlled Oscillator (VCO) Power-Up Sequencing Clock Input Clock Signals Reset Running Reset Interrupts Core Timer Timer PWM_OUT Cycle Timing Timer WDTH_CAP Timing Watchdog Timer Timing Pin to Pin Direct Routing (DAI and DPI) Precision Clock Generator (Direct Pin Routing) Flags SDRAM Interface Timing AMI Read AMI Write Serial Ports Input Data Port (IDP) Parallel Data Acquisition Port (PDAP) Sample Rate Converter—Serial Input Port Sample Rate Converter—Serial Output Port Pulse-Width Modulation Generators (PWM) S/PDIF Transmitter S/PDIF Transmitter-Serial Input Waveforms S/PDIF Transmitter Input Data Timing Oversampling Clock (TxCLK) Switching Characteristics S/PDIF Receiver Internal Digital PLL Mode SPI Interface—Master SPI Interface—Slave Media Local Bus Shift Register Universal Asynchronous Receiver-Transmitter (UART) Ports—Receive and Transmit Timing 2-Wire Interface (TWI)—Receive and Transmit Timing JTAG Test Access Port and Emulation Output Drive Currents Test Conditions Capacitive Loading Thermal Characteristics Thermal Diode 88-LFCSP_VQ Lead Assignment 100-LQFP_EP Lead Assignment 196-BGA Ball Assignment Outline Dimensions Surface-Mount Design Automotive Products Ordering Guide
