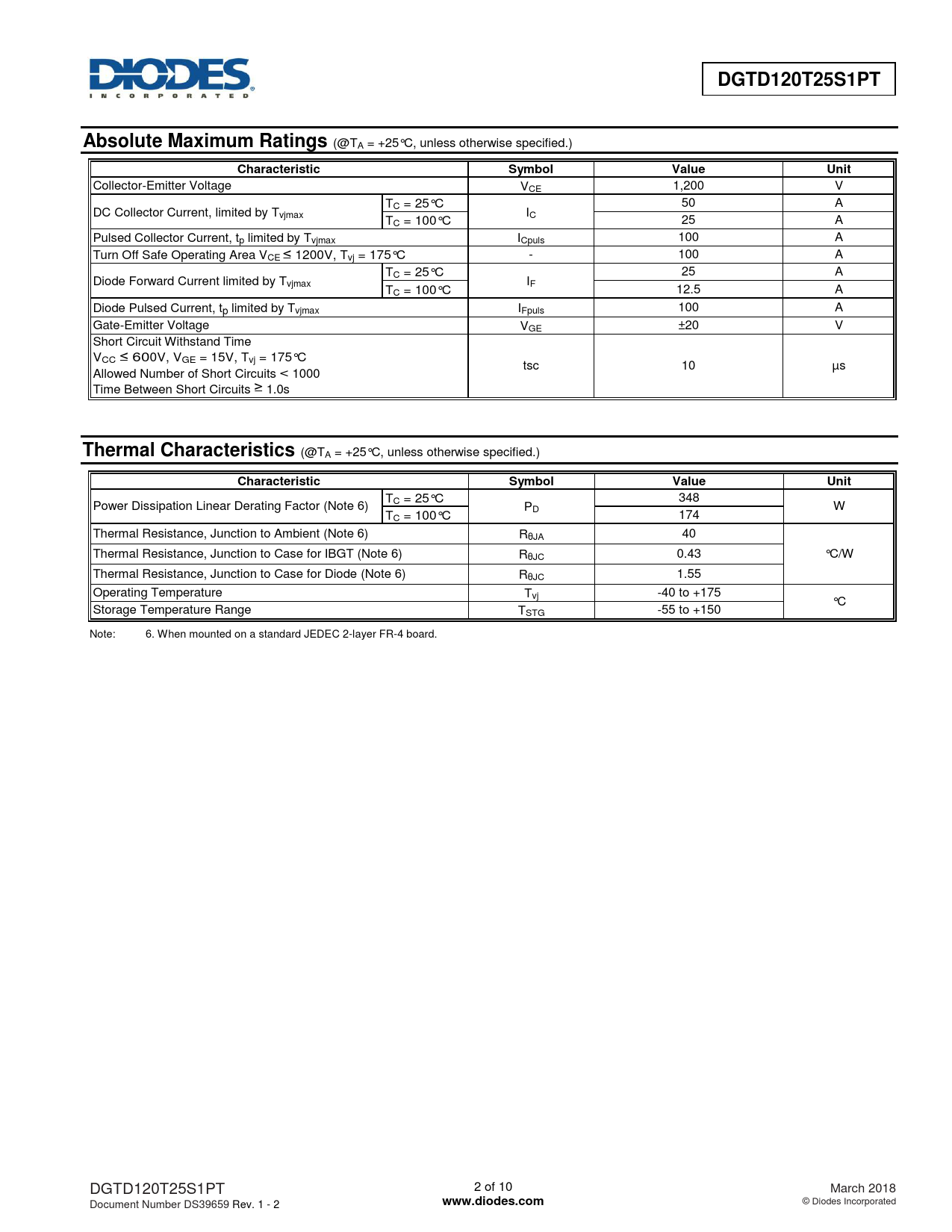

DGTD120T25S1PT. Absolute Maximum Ratings. Characteristic. Symbol. Value. Unit. Thermal Characteristics. www.diodes.com
Model Line for this Datasheet
Text Version of Document
DGTD120T25S1PT Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Collector-Emitter Voltage VCE 1,200 V TC = 25°C 50 A DC Collector Current, limited by Tvjmax IC TC = 100°C 25 A Pulsed Collector Current, tp limited by Tvjmax ICpuls 100 A Turn Off Safe Operating Area VCE ≤ 1200V, Tvj = 175°C - 100 A TC = 25°C 25 A Diode Forward Current limited by Tvjmax IF TC = 100°C 12.5 A Diode Pulsed Current, tp limited by Tvjmax IFpuls 100 A Gate-Emitter Voltage VGE ±20 V Short Circuit Withstand Time VCC ≤ 600V, VGE = 15V, Tvj = 175°C tsc 10 µs Allowed Number of Short Circuits < 1000 Time Between Short Circuits ≥ 1.0s
Thermal Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
348 Power Dissipation Linear Derating Factor (Note 6) TC = 25°C PD W TC = 100°C 174 Thermal Resistance, Junction to Ambient (Note 6) RθJA 40 Thermal Resistance, Junction to Case for IBGT (Note 6) RθJC 0.43 °C/W Thermal Resistance, Junction to Case for Diode (Note 6) RθJC 1.55 Operating Temperature Tvj -40 to +175 °C Storage Temperature Range TSTG -55 to +150 Note: 6. When mounted on a standard JEDEC 2-layer FR-4 board. DGTD120T25S1PT 2 of 10 March 2018 Document Number DS39659 Rev. 1 - 2
