Datasheet DGTD65T50S1PT (Diodes)
| Manufacturer | Diodes |
| Description | 650V Field Stop IGBT |
| Pages / Page | 9 / 1 — DGTD65T50S1PT. 650V FIELD STO. P IGBT IN TO-247. Description. Features. … |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |

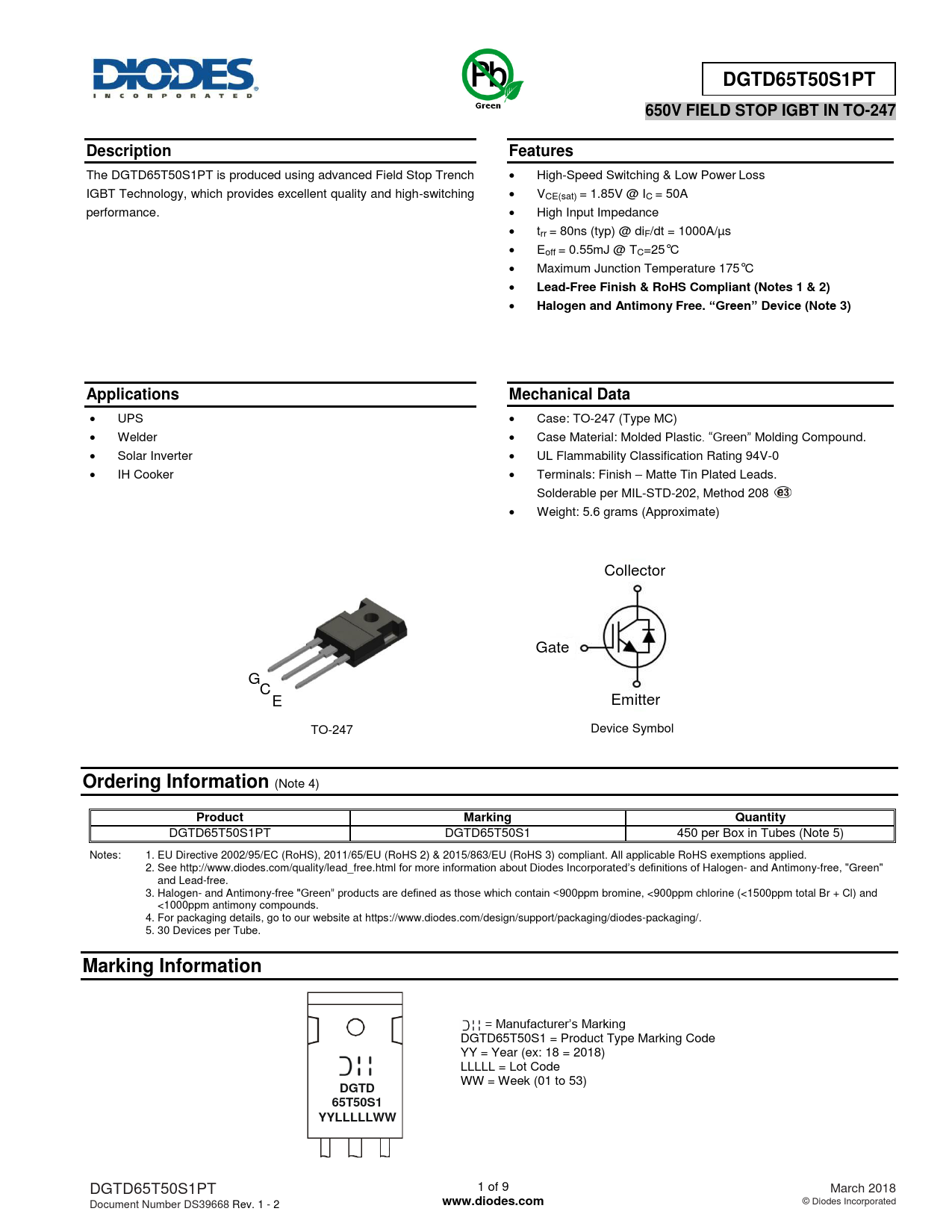

DGTD65T50S1PT. 650V FIELD STO. P IGBT IN TO-247. Description. Features. Lead-Free Finish & RoHS Compliant (Notes 1 & 2)
Model Line for this Datasheet
Text Version of Document
DGTD65T50S1PT 650V FIELD STO P IGBT IN TO-247 Description Features
The DGTD65T50S1PT is produced using advanced Field Stop Trench High-Speed Switching & Low Power Loss IGBT Technology, which provides excellent quality and high-switching VCE(sat) = 1.85V @ IC = 50A performance. High Input Impedance trr = 80ns (typ) @ diF/dt = 1000A/µs Eoff = 0.55mJ @ TC=25°C Maximum Junction Temperature 175°C
Lead-Free Finish & RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Applications Mechanical Data
UPS Case: TO-247 (Type MC) Welder Case Material: Molded Plastic. “Green” Molding Compound. Solar Inverter UL Flammability Classification Rating 94V-0 IH Cooker Terminals: Finish – Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 Weight: 5.6 grams (Approximate) Collector Gate G C E Emitter TO-247 Device Symbol
Ordering Information
(Note 4)
Product Marking Quantity
DGTD65T50S1PT DGTD65T50S1 450 per Box in Tubes (Note 5) Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See http://www.diod es.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. 5. 30 Devices per Tube .
Marking Information
= Manufacturer’s Marking Typical Configuration DGTD65T50S1 = Product Type Marking Code YY = Year (ex: 18 = 2018) LLLLL = Lot Code
WW = Week (01 to 53)
DGTD 65T50S1 YYLLLLLWW
DGTD65T50S1PT 1 of 9 March 2018 Document Number DS39668 Rev. 1 - 2
