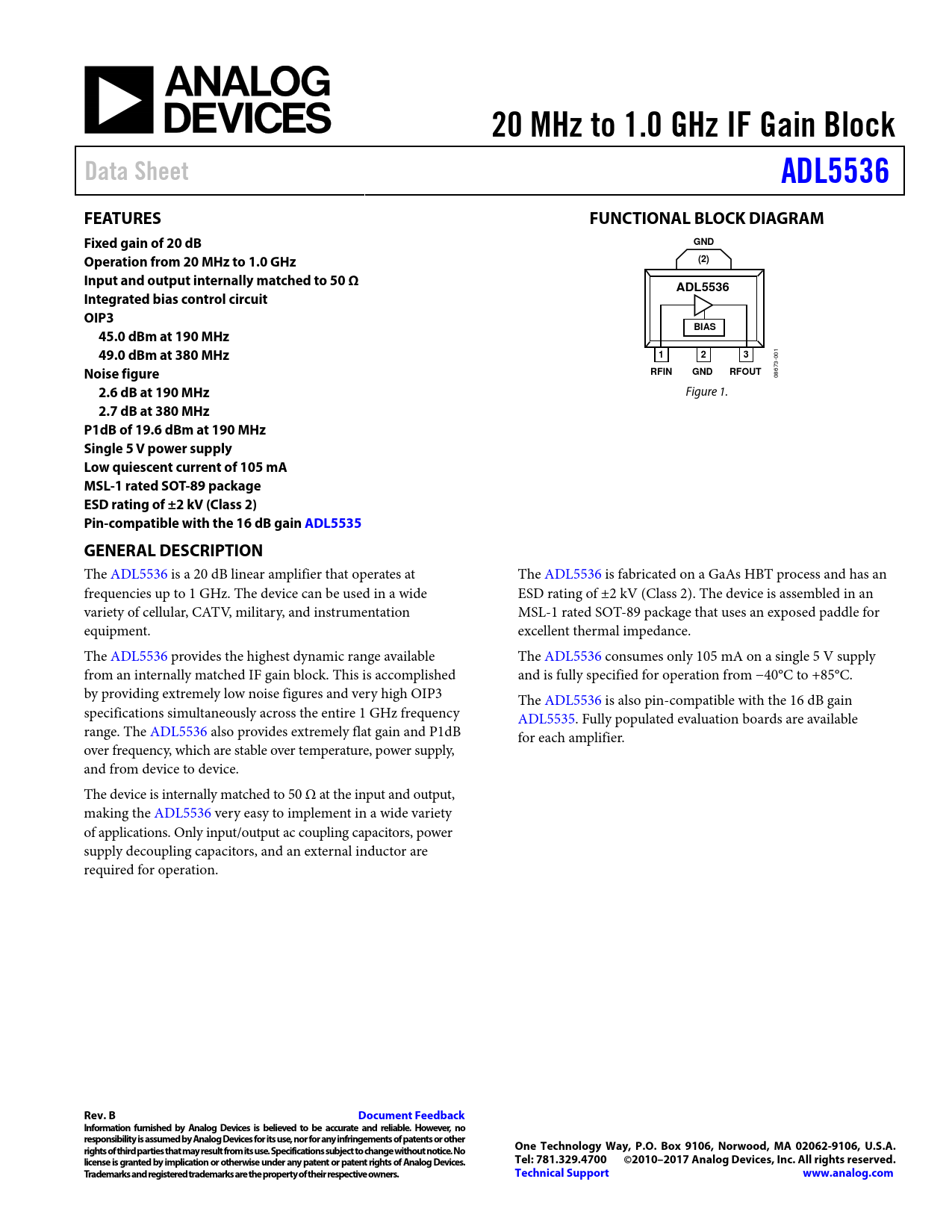

20 MHz to 1.0 GHz IF Gain Block. Data Sheet. ADL5536. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Fixed gain of 20 dB. GND

Datasheet ADL5536 Analog Devices, Revision: B

Model Line for this Datasheet

Text Version of Document

20 MHz to 1.0 GHz IF Gain Block Data Sheet ADL5536 FEATURES FUNCTIONAL BLOCK DIAGRAM Fixed gain of 20 dB GND Operation from 20 MHz to 1.0 GHz (2) Input and output internally matched to 50 Ω ADL5536 Integrated bias control circuit OIP3 BIAS 45.0 dBm at 190 MHz 49.0 dBm at 380 MHz 1 2 3
001
Noise figure RFIN GND RFOUT
08673-
2.6 dB at 190 MHz
Figure 1.
2.7 dB at 380 MHz P1dB of 19.6 dBm at 190 MHz Single 5 V power supply Low quiescent current of 105 mA MSL-1 rated SOT-89 package ESD rating of ±2 kV (Class 2) Pin-compatible with the 16 dB gain ADL5535 GENERAL DESCRIPTION
The ADL5536 is a 20 dB linear amplifier that operates at The ADL5536 is fabricated on a GaAs HBT process and has an frequencies up to 1 GHz. The device can be used in a wide ESD rating of ±2 kV (Class 2). The device is assembled in an variety of cellular, CATV, military, and instrumentation MSL-1 rated SOT-89 package that uses an exposed paddle for equipment. excellent thermal impedance. The ADL5536 provides the highest dynamic range available The ADL5536 consumes only 105 mA on a single 5 V supply from an internally matched IF gain block. This is accomplished and is fully specified for operation from −40°C to +85°C. by providing extremely low noise figures and very high OIP3 The ADL5536 is also pin-compatible with the 16 dB gain specifications simultaneously across the entire 1 GHz frequency ADL5535. Fully populated evaluation boards are available range. The ADL5536 also provides extremely flat gain and P1dB for each amplifier. over frequency, which are stable over temperature, power supply, and from device to device. The device is internal y matched to 50 Ω at the input and output, making the ADL5536 very easy to implement in a wide variety of applications. Only input/output ac coupling capacitors, power supply decoupling capacitors, and an external inductor are required for operation.
