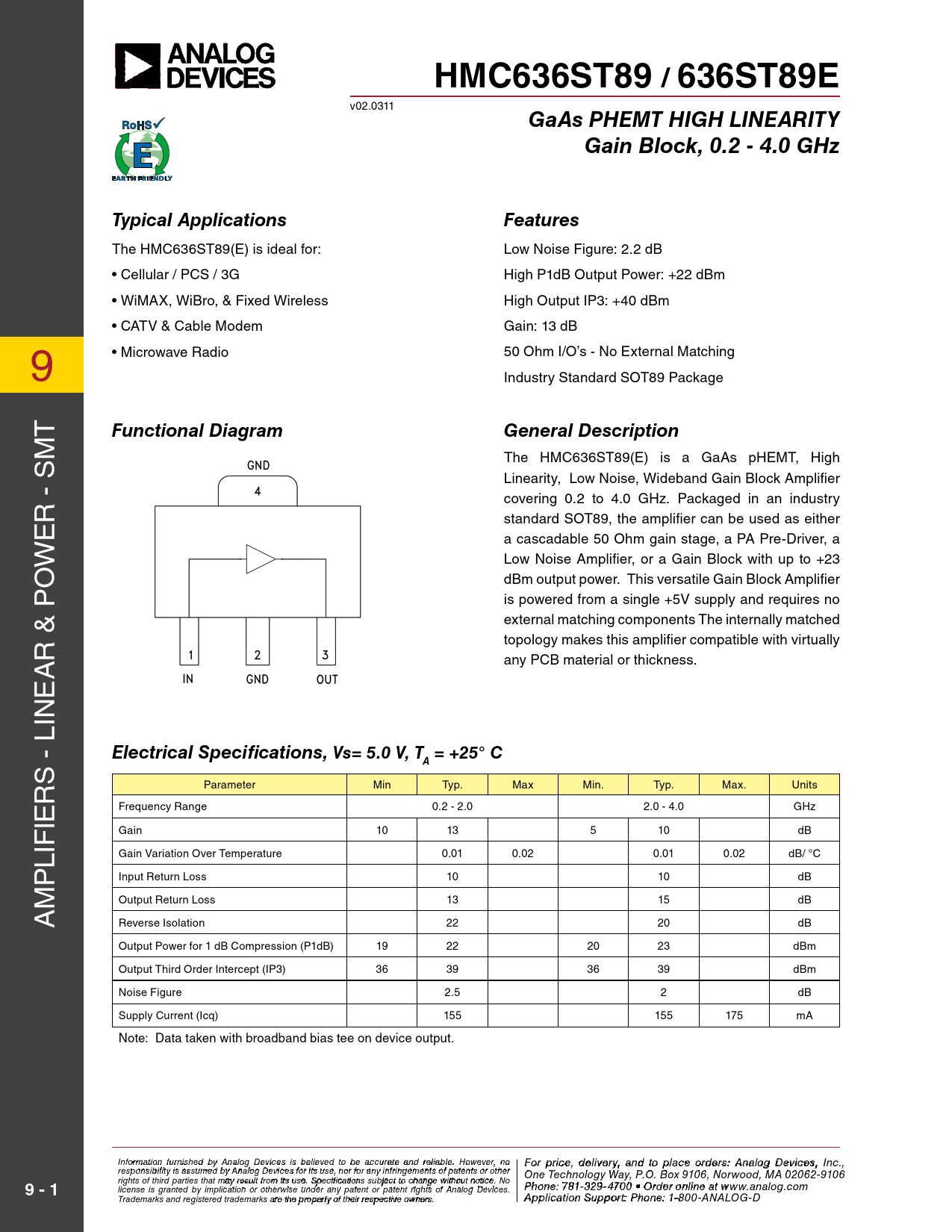

HMC636ST89 / 636ST89E
v02.0311
GaAs pHEMT HiGH LinEAriTy Gain Block, 0.2 - 4.0 GHz Typical Applications Features
The HmC636sT89(e) is ideal for: low noise figure: 2.2 dB • Cel ular / PCS / 3G High p1dB output power: +22 dBm • WiMAX, WiBro, & Fixed Wireless High output ip3: +40 dBm • CATV & Cable Modem Gain: 13 dB 9 • Microwave Radio 50 ohm i/o’s - no external matching industry standard soT89 package T
Functional Diagram General Description
m s The HmC636sT89(e) is a GaAs pHemT, High linearity, low noise, wideband Gain Block Amplifier r - covering 0.2 to 4.0 GHz. packaged in an industry e standard soT89, the amplifier can be used as either a cascadable 50 ohm gain stage, a pA pre-Driver, a w low noise Amplifier, or a Gain Block with up to +23 o dBm output power. This versatile Gain Block Amplifier p is powered from a single +5V supply and requires no external matching components The internal y matched r & topology makes this amplifier compatible with virtual y A any pCB material or thickness. e lin
Electrical Specifications, Vs= 5.0 V, T = +25° C
s -
A
r parameter min Typ. max min. Typ. max. Units ie frequency range 0.2 - 2.0 2.0 - 4.0 GHz Gain 10 13 5 10 dB lif Gain Variation over Temperature 0.01 0.02 0.01 0.02 dB/ °C p input return loss 10 10 dB m output return loss 13 15 dB A reverse isolation 22 20 dB output power for 1 dB Compression (p1dB) 19 22 20 23 dBm output Third order intercept (ip3) 36 39 36 39 dBm noise figure 2.5 2 dB supply Current (icq) 155 155 175 mA note: Data taken with broadband bias tee on device output. Inf F or o m rat ip o r n ifc ur e n ,is hd e e d lbiv y e Anry alo a g n D d evi cto es ips la beclie ev eo d rtd o e b r e sa: ccH ur iattte itaen M d reliic a r bl o e w . H a o v weev eC r, o n r o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other poration, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 rights of third parties that may result from its use. Specifications subject to change without notice. No Or P d hoe n r e O : 7 n- 81-li 3 n 2 e 9- a 4 t 7 0 www 0 • O . rdh e itt r o it n e li . n co e a m
9 - 1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 p p liocra t ia o pp n S s u @ p h por ittti : Pte. ho c n o e m : 1-800-ANALOG-D
