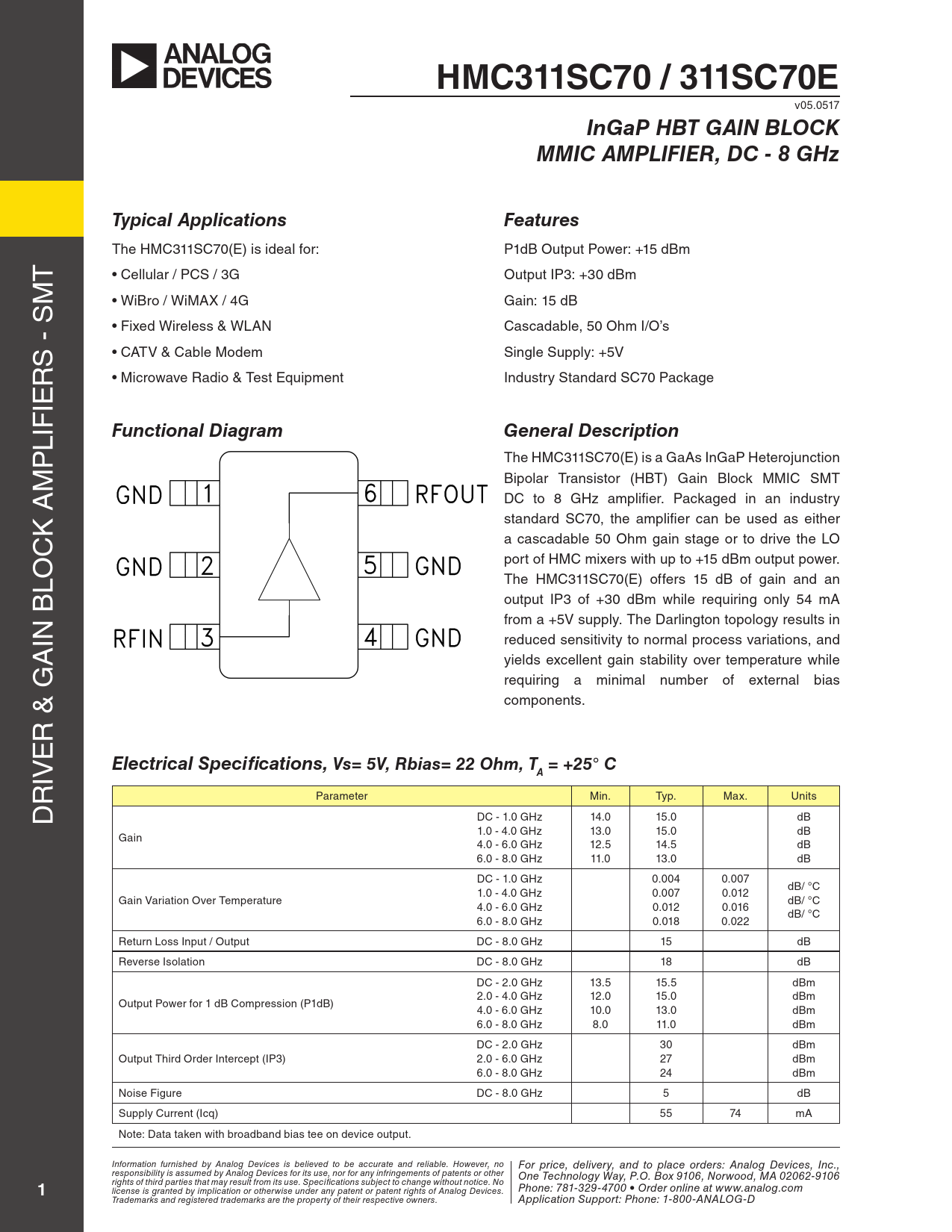

HMC311SC70 / 311SC70E
v05.0517
InGaP HBT GAIN BLOCK MMIC AMPLIFIER, DC - 8 GHz Typical Applications Features
The HMC311SC70(E) is ideal for: P1dB Output Power: +15 dBm T • Cel ular / PCS / 3G Output IP3: +30 dBm M • WiBro / WiMAX / 4G Gain: 15 dB • Fixed Wireless & WLAN Cascadable, 50 Ohm I/O’s S - S • CATV & Cable Modem Single Supply: +5V R • Microwave Radio & Test Equipment Industry Standard SC70 Package IE LIF
Functional Diagram General Description
P The HMC311SC70(E) is a GaAs InGaP Heterojunction M Bipolar Transistor (HBT) Gain Block MMIC SMT DC to 8 GHz amplifier. Packaged in an industry K A standard SC70, the amplifier can be used as either C a cascadable 50 Ohm gain stage or to drive the LO port of HMC mixers with up to +15 dBm output power. LO The HMC311SC70(E) offers 15 dB of gain and an output IP3 of +30 dBm while requiring only 54 mA from a +5V supply. The Darlington topology results in IN B reduced sensitivity to normal process variations, and A yields excellent gain stability over temperature while requiring a minimal number of external bias components. R & G E IV
Electrical Specifications, Vs= 5V, Rbias= 22 Ohm, T = +25° C A
R Parameter Min. Typ. Max. Units D DC - 1.0 GHz 14.0 15.0 dB 1.0 - 4.0 GHz 13.0 15.0 dB Gain 4.0 - 6.0 GHz 12.5 14.5 dB 6.0 - 8.0 GHz 11.0 13.0 dB DC - 1.0 GHz 0.004 0.007 dB/ °C 1.0 - 4.0 GHz 0.007 0.012 Gain Variation Over Temperature dB/ °C 4.0 - 6.0 GHz 0.012 0.016 dB/ °C 6.0 - 8.0 GHz 0.018 0.022 Return Loss Input / Output DC - 8.0 GHz 15 dB Reverse Isolation DC - 8.0 GHz 18 dB DC - 2.0 GHz 13.5 15.5 dBm 2.0 - 4.0 GHz 12.0 15.0 dBm Output Power for 1 dB Compression (P1dB) 4.0 - 6.0 GHz 10.0 13.0 dBm 6.0 - 8.0 GHz 8.0 11.0 dBm DC - 2.0 GHz 30 dBm Output Third Order Intercept (IP3) 2.0 - 6.0 GHz 27 dBm 6.0 - 8.0 GHz 24 dBm Noise Figure DC - 8.0 GHz 5 dB Supply Current (Icq) 55 74 mA Note: Data taken with broadband bias tee on device output. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
