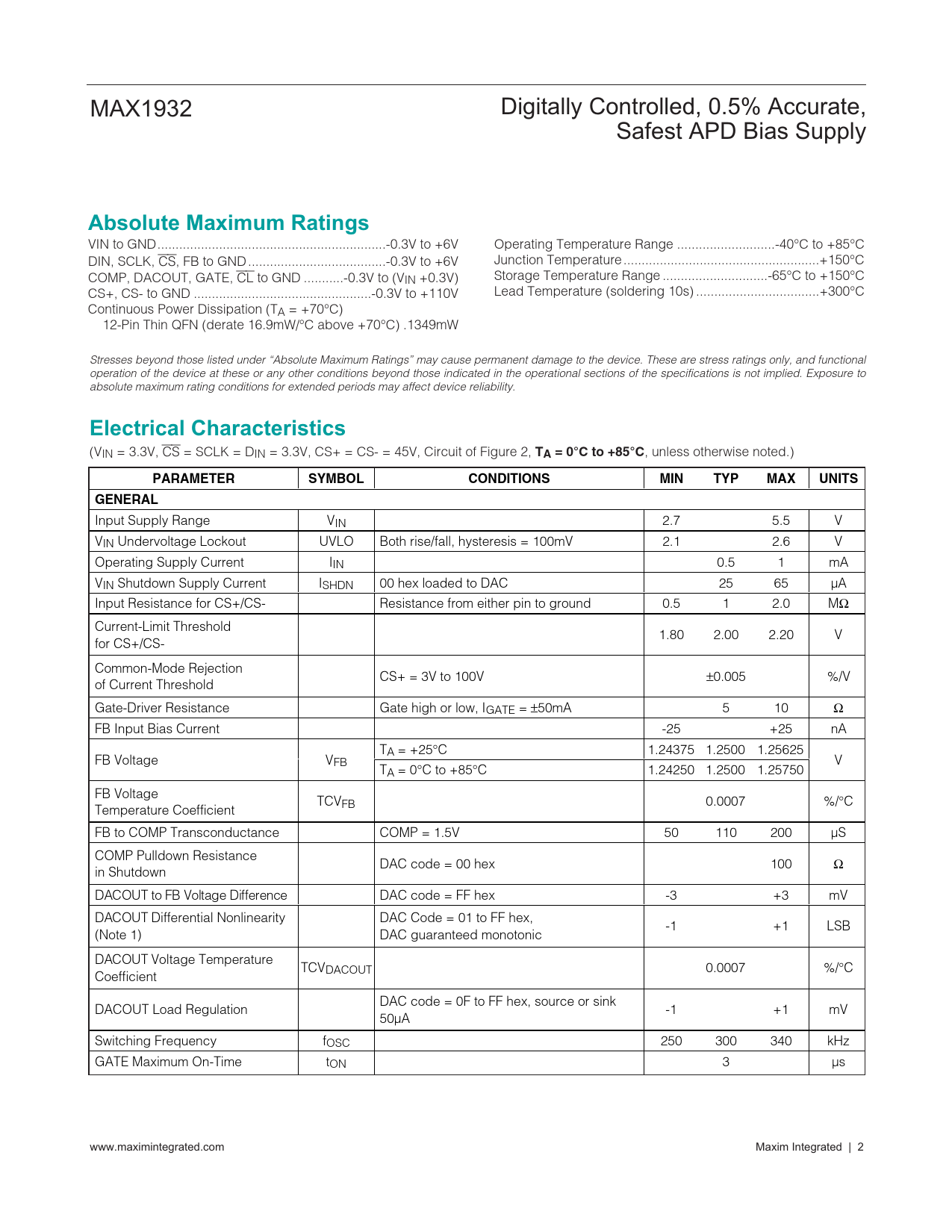

Absolute Maximum Ratings. Electrical Characteristics. TA = 0°C to +85°C. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. GENERAL
Model Line for this Datasheet
Text Version of Document
MAX1932 Digitally Controlled, 0.5% Accurate, Safest APD Bias Supply
Absolute Maximum Ratings
VIN to GND...-0.3V to +6V Operating Temperature Range ...-40°C to +85°C DIN, SCLK, CS, FB to GND ..-0.3V to +6V Junction Temperature ..+150°C COMP, DACOUT, GATE, CL to GND ...-0.3V to (VIN +0.3V) Storage Temperature Range ...-65°C to +150°C CS+, CS- to GND ...-0.3V to +110V Lead Temperature (soldering 10s) ..+300°C Continuous Power Dissipation (TA = +70°C) 12-Pin Thin QFN (derate 16.9mW/°C above +70°C) .1349mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Electrical Characteristics
(VIN = 3.3V, CS = SCLK = DIN = 3.3V, CS+ = CS- = 45V, Circuit of Figure 2,
TA = 0°C to +85°C
, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS GENERAL
Input Supply Range VIN 2.7 5.5 V VIN Undervoltage Lockout UVLO Both rise/fall, hysteresis = 100mV 2.1 2.6 V Operating Supply Current IIN 0.5 1 mA VIN Shutdown Supply Current ISHDN 00 hex loaded to DAC 25 65 µA Input Resistance for CS+/CS- Resistance from either pin to ground 0.5 1 2.0 MΩ Current-Limit Threshold 1.80 2.00 2.20 V for CS+/CS- Common-Mode Rejection CS+ = 3V to 100V ±0.005 %/V of Current Threshold Gate-Driver Resistance Gate high or low, IGATE = ±50mA 5 10 Ω FB Input Bias Current -25 +25 nA TA = +25°C 1.24375 1.2500 1.25625 FB Voltage VFB V TA = 0°C to +85°C 1.24250 1.2500 1.25750 FB Voltage TCVFB 0.0007 %/°C Temperature Coefficient FB to COMP Transconductance COMP = 1.5V 50 110 200 µS COMP Pulldown Resistance DAC code = 00 hex 100 Ω in Shutdown D AC OU T to FB V ol tag e D i ffer ence DAC code = FF hex -3 +3 mV D AC OU T Differential Nonlinearity DAC Code = 01 to FF hex, -1 +1 LSB (Note 1) DAC guaranteed monotonic D AC OU T Voltage Temperature TCVDACOUT 0.0007 %/°C Coefficient DAC code = 0F to FF hex, source or sink DACOUT Load Regulation -1 +1 mV 50µA Switching Frequency fOSC 250 300 340 kHz GATE Maximum On-Time tON 3 µs www.maximintegrated.com Maxim Integrated | 2
