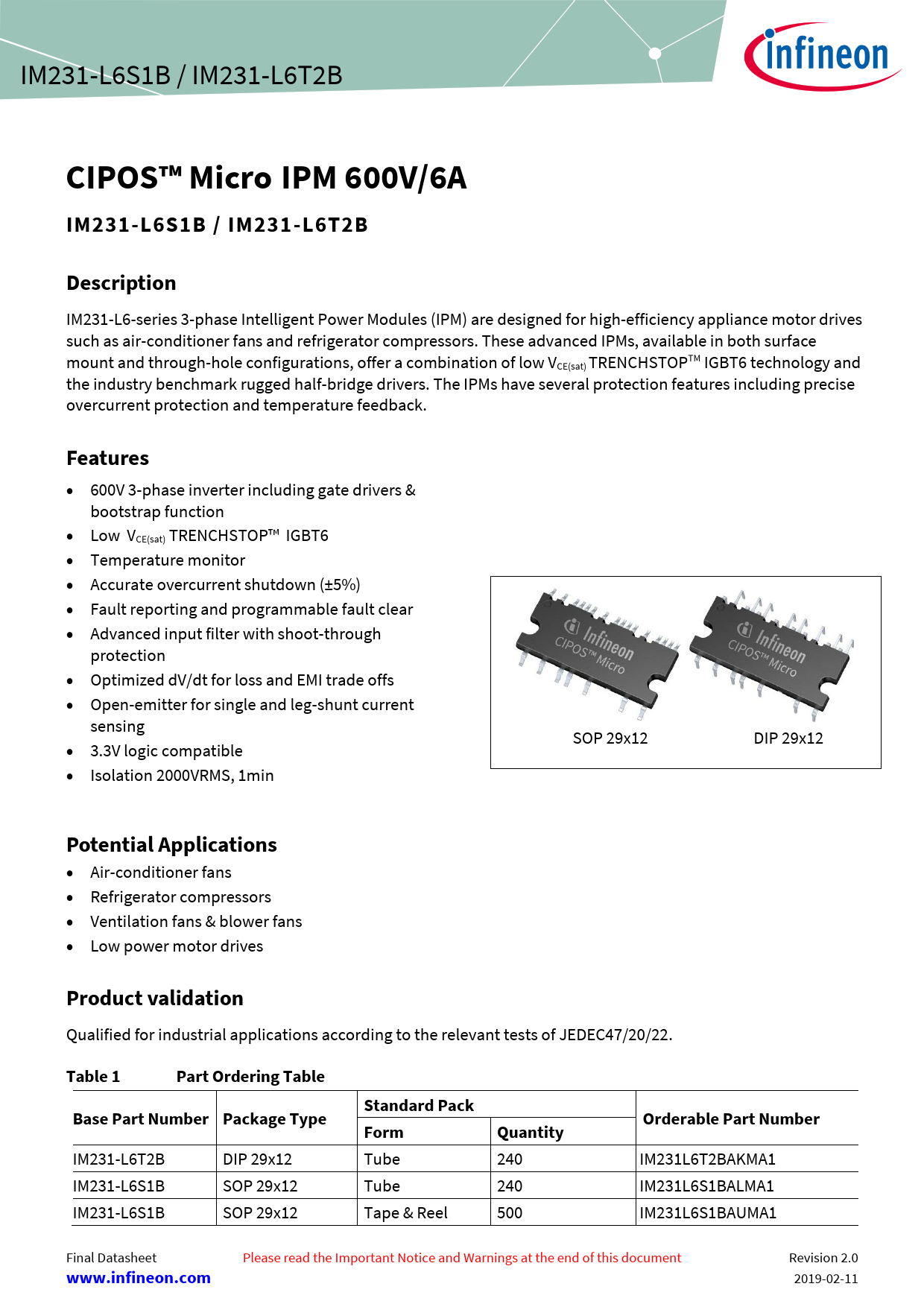

CIPOS™ Micro IPM 600V/6A IM231-L6S1B / IM231-L6T2B Description
IM231-L6-series 3-phase Intelligent Power Modules (IPM) are designed for high-efficiency appliance motor drives such as air-conditioner fans and refrigerator compressors. These advanced IPMs, available in both surface mount and through-hole configurations, offer a combination of low VCE(sat) TRENCHSTOPTM IGBT6 technology and the industry benchmark rugged half-bridge drivers. The IPMs have several protection features including precise overcurrent protection and temperature feedback.
Features
600V 3-phase inverter including gate drivers & bootstrap function Low VCE(sat) TRENCHSTOP™ IGBT6 Temperature monitor Accurate overcurrent shutdown (±5%) Fault reporting and programmable fault clear Advanced input filter with shoot-through protection Optimized dV/dt for loss and EMI trade offs Open-emitter for single and leg-shunt current sensing SOP 29x12 DIP 29x12 3.3V logic compatible Isolation 2000VRMS, 1min
Potential Applications
Air-conditioner fans Refrigerator compressors Ventilation fans & blower fans Low power motor drives
Product validation
Qualified for industrial applications according to the relevant tests of JEDEC47/20/22.
Table 1 Part Ordering Table Standard Pack Base Part Number Package Type Orderable Part Number Form Quantity
IM231-L6T2B DIP 29x12 Tube 240 IM231L6T2BAKMA1 IM231-L6S1B SOP 29x12 Tube 240 IM231L6S1BALMA1 IM231-L6S1B SOP 29x12 Tape & Reel 500 IM231L6S1BAUMA1 Final Datasheet Please read the Important Notice and Warnings at the end of this document Revision 2.0
