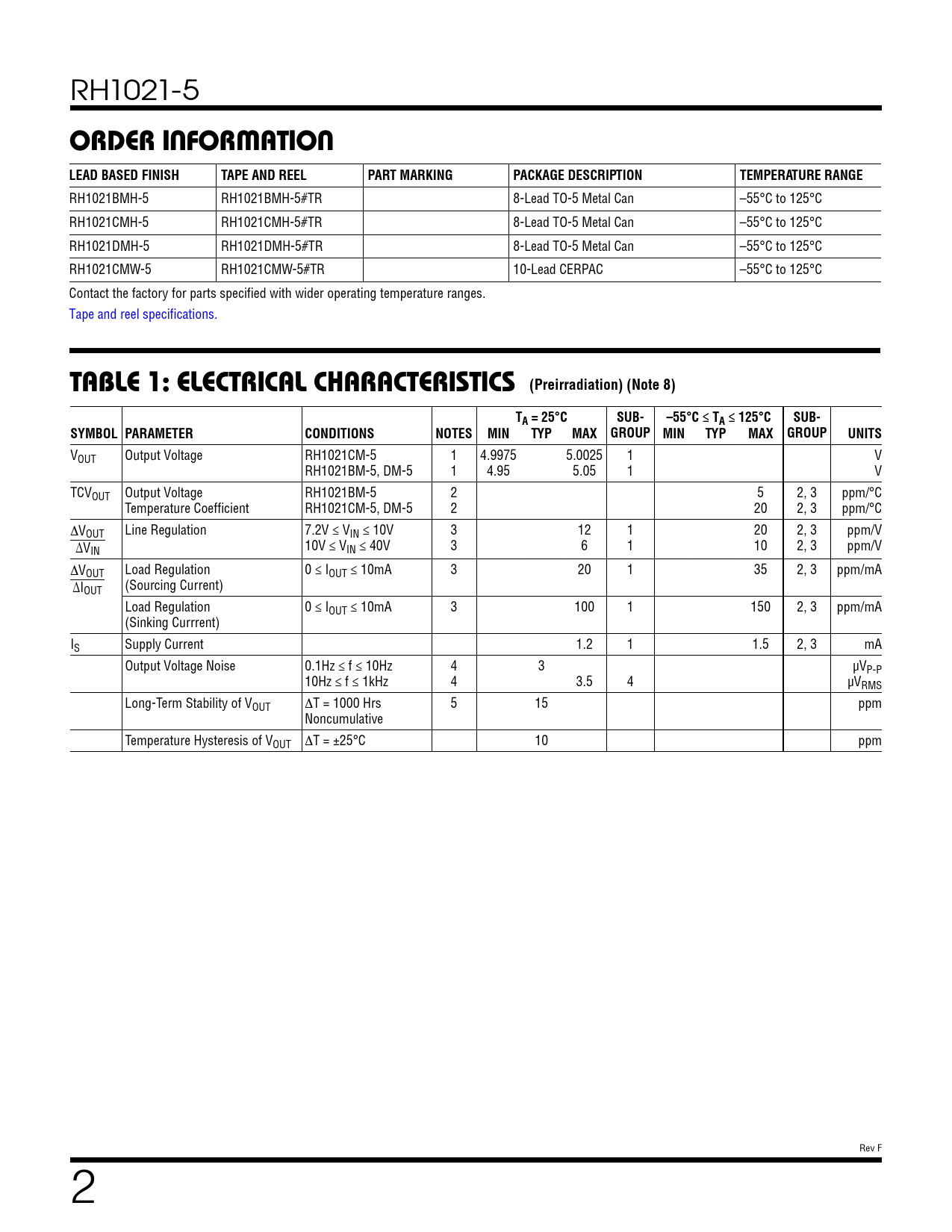

ORDER INFORMATION LEAD BASED FINISH. TAPE AND REEL. PART MARKING. PACKAGE DESCRIPTION. TEMPERATURE RANGE
Model Line for this Datasheet
Text Version of Document
RH1021-5
ORDER INFORMATION LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
RH1021BMH-5 RH1021BMH-5#TR 8-Lead TO-5 Metal Can –55°C to 125°C RH1021CMH-5 RH1021CMH-5#TR 8-Lead TO-5 Metal Can –55°C to 125°C RH1021DMH-5 RH1021DMH-5#TR 8-Lead TO-5 Metal Can –55°C to 125°C RH1021CMW-5 RH1021CMW-5#TR 10-Lead CERPAC –55°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. Tape and reel specifications.
TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) (Note 8) TA = 25°C SUB- –55°C ≤ TA ≤ 125°C SUB- SYMBOL PARAMETER CONDITIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
VOUT Output Voltage RH1021CM-5 1 4.9975 5.0025 1 V RH1021BM-5, DM-5 1 4.95 5.05 1 V TCVOUT Output Voltage RH1021BM-5 2 5 2, 3 ppm/°C Temperature Coefficient RH1021CM-5, DM-5 2 20 2, 3 ppm/°C ∆VOUT Line Regulation 7.2V ≤ VIN ≤ 10V 3 12 1 20 2, 3 ppm/V ∆VIN 10V ≤ VIN ≤ 40V 3 6 1 10 2, 3 ppm/V ∆VOUT Load Regulation 0 ≤ IOUT ≤ 10mA 3 20 1 35 2, 3 ppm/mA ∆IOUT (Sourcing Current) Load Regulation 0 ≤ IOUT ≤ 10mA 3 100 1 150 2, 3 ppm/mA (Sinking Currrent) IS Supply Current 1.2 1 1.5 2, 3 mA Output Voltage Noise 0.1Hz ≤ f ≤ 10Hz 4 3 µVP-P 10Hz ≤ f ≤ 1kHz 4 3.5 4 µVRMS Long-Term Stability of VOUT ∆T = 1000 Hrs 5 15 ppm Noncumulative Temperature Hysteresis of VOUT ∆T = ±25°C 10 ppm Rev F 2 Document Outline Description Absolute Maximum Ratings Burn-In Circuits Pin Configuration Order Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Revision History Typical Performance Characteristics
