XDPL8210 Digital Flyback Controller IC. XDP™ Digital Power. Functional description. Figure 8. Switching waveforms in DCM. ABM. DCM
Model Line for this Datasheet
Text Version of Document
link to page 47 link to page 47 link to page 47

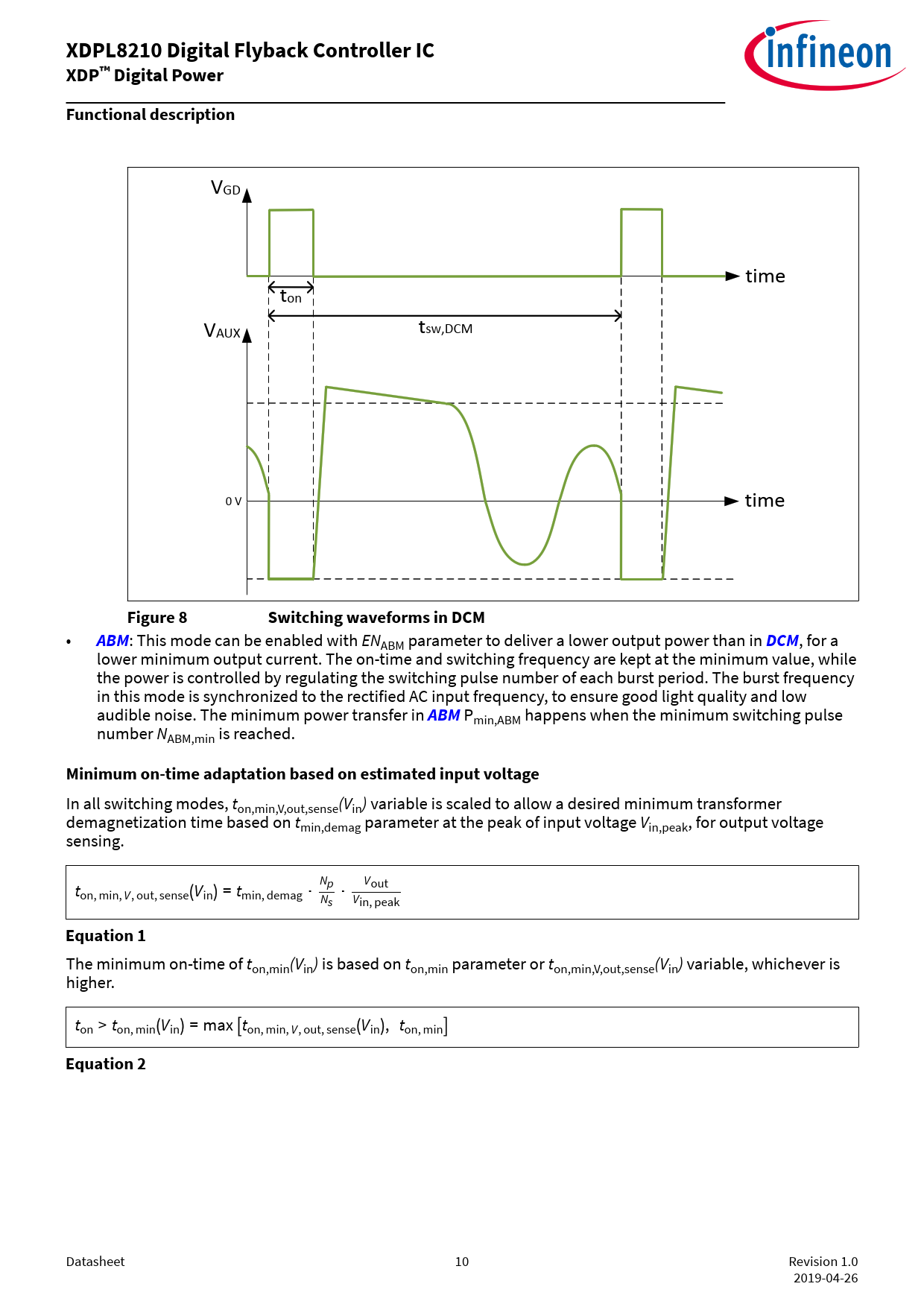

XDPL8210 Digital Flyback Controller IC XDP™ Digital Power Functional description
VGD time ton VAUX tsw,DCM 0 V time
Figure 8 Switching waveforms in DCM
•
ABM
: This mode can be enabled with ENABM parameter to deliver a lower output power than in
DCM
, for a lower minimum output current. The on-time and switching frequency are kept at the minimum value, while the power is controlled by regulating the switching pulse number of each burst period. The burst frequency in this mode is synchronized to the rectified AC input frequency, to ensure good light quality and low audible noise. The minimum power transfer in
ABM
Pmin,ABM happens when the minimum switching pulse number NABM,min is reached.
Minimum on-time adaptation based on estimated input voltage
In all switching modes, ton,min,V,out,sense(Vin) variable is scaled to allow a desired minimum transformer demagnetization time based on tmin,demag parameter at the peak of input voltage Vin,peak, for output voltage sensing. ton,min,V,out,sense Vin = tmin,demag ⋅ Np N ⋅ Vout s Vin, peak
Equation 1
The minimum on-time of ton,min(Vin) is based on ton,min parameter or ton,min,V,out,sense(Vin) variable, whichever is higher. ton > ton,min Vin = max ton,min,V,out,sense Vin , ton,min
Equation 2
