Datasheet MAX16956 (Maxim)

ManufacturerMaxim
Description36V, 300mA, Mini Buck Converter with 1.1µA IQ
Pages / Page16 / 1 — EVALUATION KIT AVAILABLE. MAX16956. 36V, 300mA, Mini Buck Converter with. …
File Format / SizePDF / 1.9 Mb
Document LanguageEnglish

EVALUATION KIT AVAILABLE. MAX16956. 36V, 300mA, Mini Buck Converter with. 1.1µA IQ. General Description. Benefits and Features

Datasheet MAX16956 Maxim

Model Line for this Datasheet

Text Version of Document

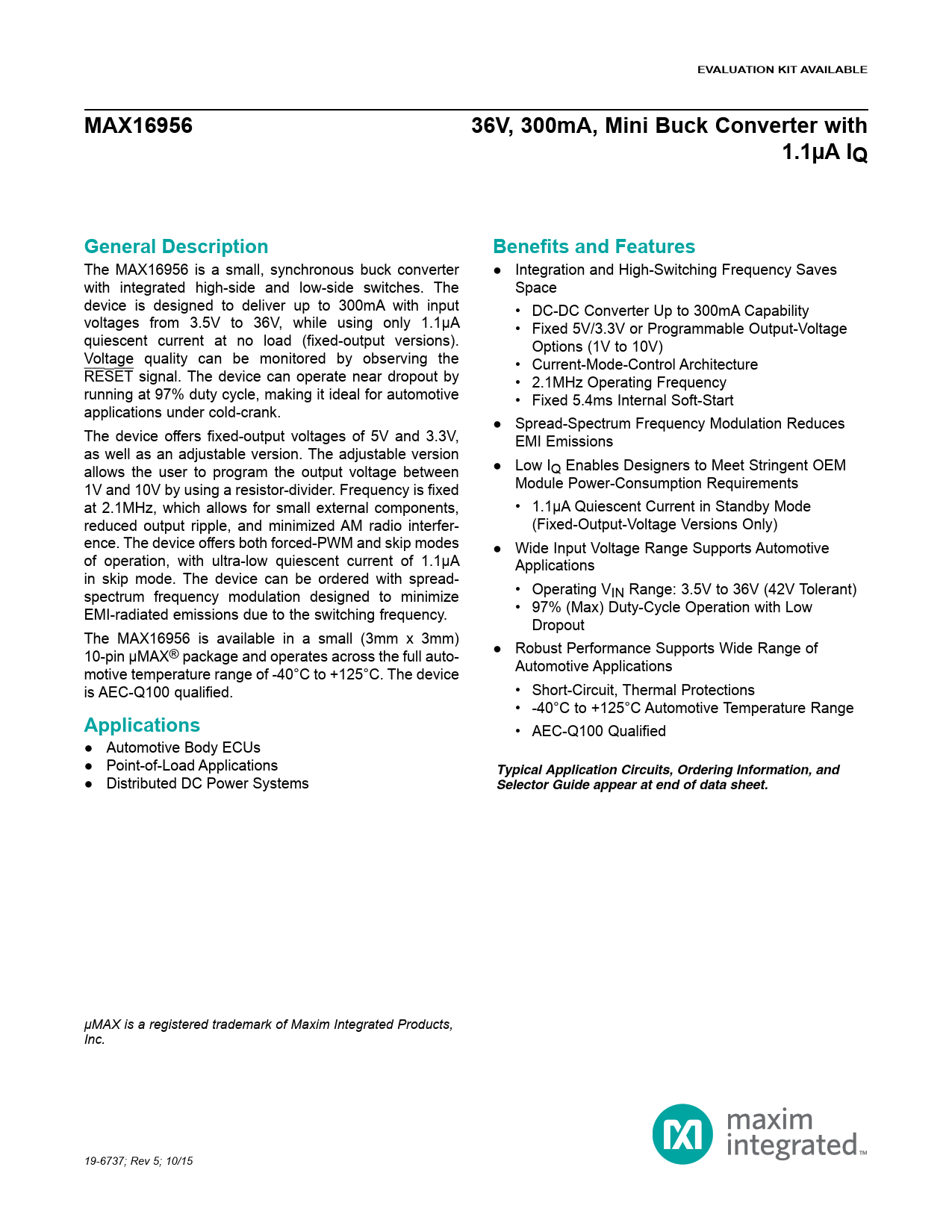

EVALUATION KIT AVAILABLE MAX16956 36V, 300mA, Mini Buck Converter with 1.1µA IQ General Description Benefits and Features
The MAX16956 is a small, synchronous buck converter ● Integration and High-Switching Frequency Saves with integrated high-side and low-side switches. The Space device is designed to deliver up to 300mA with input • DC-DC Converter Up to 300mA Capability voltages from 3.5V to 36V, while using only 1.1µA • Fixed 5V/3.3V or Programmable Output-Voltage quiescent current at no load (fixed-output versions). Options (1V to 10V) Voltage quality can be monitored by observing the • Current-Mode-Control Architecture RESET signal. The device can operate near dropout by • 2.1MHz Operating Frequency running at 97% duty cycle, making it ideal for automotive • Fixed 5.4ms Internal Soft-Start applications under cold-crank. ● Spread-Spectrum Frequency Modulation Reduces The device offers fixed-output voltages of 5V and 3.3V, EMI Emissions as well as an adjustable version. The adjustable version allows the user to program the output voltage between ● Low IQ Enables Designers to Meet Stringent OEM 1V and 10V by using a resistor-divider. Frequency is fixed Module Power-Consumption Requirements at 2.1MHz, which allows for small external components, • 1.1µA Quiescent Current in Standby Mode reduced output ripple, and minimized AM radio interfer- (Fixed-Output-Voltage Versions Only) ence. The device offers both forced-PWM and skip modes ● Wide Input Voltage Range Supports Automotive of operation, with ultra-low quiescent current of 1.1µA Applications in skip mode. The device can be ordered with spread- spectrum frequency modulation designed to minimize • Operating VIN Range: 3.5V to 36V (42V Tolerant) EMI-radiated emissions due to the switching frequency. • 97% (Max) Duty-Cycle Operation with Low Dropout The MAX16956 is available in a small (3mm x 3mm) 10-pin µMAX® package and operates across the full auto- ● Robust Performance Supports Wide Range of motive temperature range of -40°C to +125°C. The device Automotive Applications is AEC-Q100 qualified. • Short-Circuit, Thermal Protections • -40°C to +125°C Automotive Temperature Range
Applications
• AEC-Q100 Qualified ● Automotive Body ECUs ● Point-of-Load Applications Typical Application Circuits, Ordering Information, and ● Distributed DC Power Systems Selector Guide appear at end of data sheet. µMAX is a registered trademark of Maxim Integrated Products, Inc. 19-6737; Rev 5; 10/15
