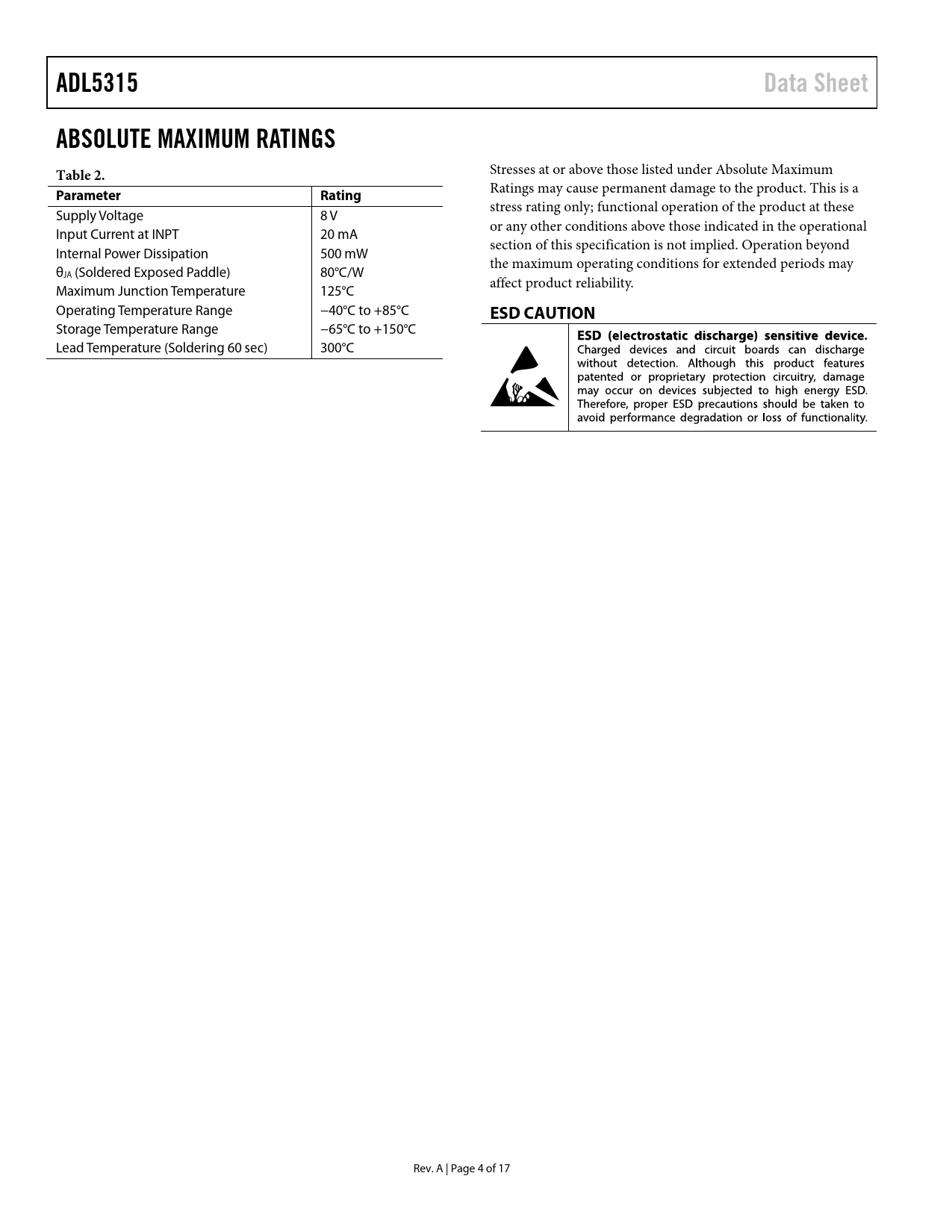

ADL5315. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADL5315 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage 8 V Input Current at INPT 20 mA or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond Internal Power Dissipation 500 mW the maximum operating conditions for extended periods may θJA (Soldered Exposed Paddle) 80°C/W affect product reliability. Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C
ESD CAUTION
Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering 60 sec) 300°C Rev. A | Page 4 of 17 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BIAS CONTROL INTERFACE NOISE PERFORMANCE MIRROR RESPONSE TIME INPUT CURRENT LIMITING APPLICATIONS AVERAGE POWER MONITORING TRANSLINEAR LOG AMP INTERFACING EXTENDED OPERATING RANGE USING RLIM AS A SECONDARY MONITOR CHARACTERIZATION METHODS EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
