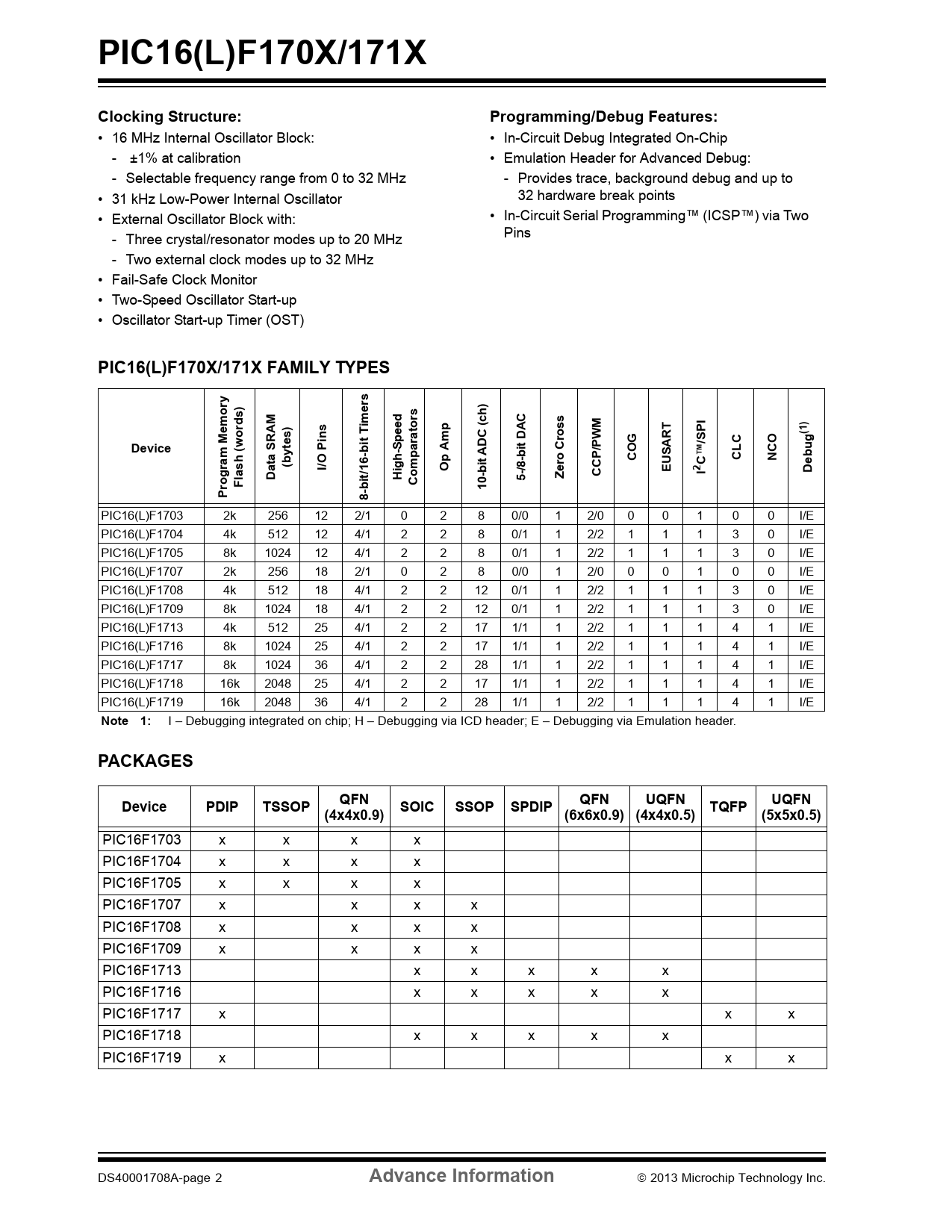

PIC16(L)F170X/171X Clocking Structure: Programming/Debug Features:
• 16 MHz Internal Oscillator Block: • In-Circuit Debug Integrated On-Chip - ±1% at calibration • Emulation Header for Advanced Debug: - Selectable frequency range from 0 to 32 MHz - Provides trace, background debug and up to • 31 kHz Low-Power Internal Oscillator 32 hardware break points • External Oscillator Block with: • In-Circuit Serial Programming™ (ICSP™) via Two - Three crystal/resonator modes up to 20 MHz Pins - Two external clock modes up to 32 MHz • Fail-Safe Clock Monitor • Two-Speed Oscil ator Start-up • Oscillator Start-up Timer (OST)
PIC16(L)F170X/171X FAMILY TYPES ry rs ) o ) e ds rs C s s im p M T or eed (1) RAM in R it T p m DA ros W /SPI C Device w ( S ytes) -S arato A it C /P SA h a h -b P COG CL NCO bug ram Mem s (b O P I/ g mp it ADC (ch ro C e g Op EU 2 D la Dat I it/16-b Hi 5-/8 Ze CC ro F Co 10-b P 8-b
PIC16(L)F1703 2k 256 12 2/1 0 2 8 0/0 1 2/0 0 0 1 0 0 I/E PIC16(L)F1704 4k 512 12 4/1 2 2 8 0/1 1 2/2 1 1 1 3 0 I/E PIC16(L)F1705 8k 1024 12 4/1 2 2 8 0/1 1 2/2 1 1 1 3 0 I/E PIC16(L)F1707 2k 256 18 2/1 0 2 8 0/0 1 2/0 0 0 1 0 0 I/E PIC16(L)F1708 4k 512 18 4/1 2 2 12 0/1 1 2/2 1 1 1 3 0 I/E PIC16(L)F1709 8k 1024 18 4/1 2 2 12 0/1 1 2/2 1 1 1 3 0 I/E PIC16(L)F1713 4k 512 25 4/1 2 2 17 1/1 1 2/2 1 1 1 4 1 I/E PIC16(L)F1716 8k 1024 25 4/1 2 2 17 1/1 1 2/2 1 1 1 4 1 I/E PIC16(L)F1717 8k 1024 36 4/1 2 2 28 1/1 1 2/2 1 1 1 4 1 I/E PIC16(L)F1718 16k 2048 25 4/1 2 2 17 1/1 1 2/2 1 1 1 4 1 I/E PIC16(L)F1719 16k 2048 36 4/1 2 2 28 1/1 1 2/2 1 1 1 4 1 I/E
Note 1:
I – Debugging integrated on chip; H – Debugging via ICD header; E – Debugging via Emulation header.
PACKAGES QFN QFN UQFN UQFN Device PDIP TSSOP SOIC SSOP SPDIP TQFP (4x4x0.9) (6x6x0.9) (4x4x0.5) (5x5x0.5)
PIC16F1703 x x x x PIC16F1704 x x x x PIC16F1705 x x x x PIC16F1707 x x x x PIC16F1708 x x x x PIC16F1709 x x x x PIC16F1713 x x x x x PIC16F1716 x x x x x PIC16F1717 x x x PIC16F1718 x x x x x PIC16F1719 x x x DS40001708A-page 2
