Datasheet AOZ6683CI (Alpha & Omega) - 2
| Manufacturer | Alpha & Omega |
| Description | EZBuck 3A Synchronous Buck Regulator |
| Pages / Page | 15 / 2 — AOZ6683CI. Ordering Information. Part Number. Ambient Temperature Range. … |
| File Format / Size | PDF / 631 Kb |
| Document Language | English |

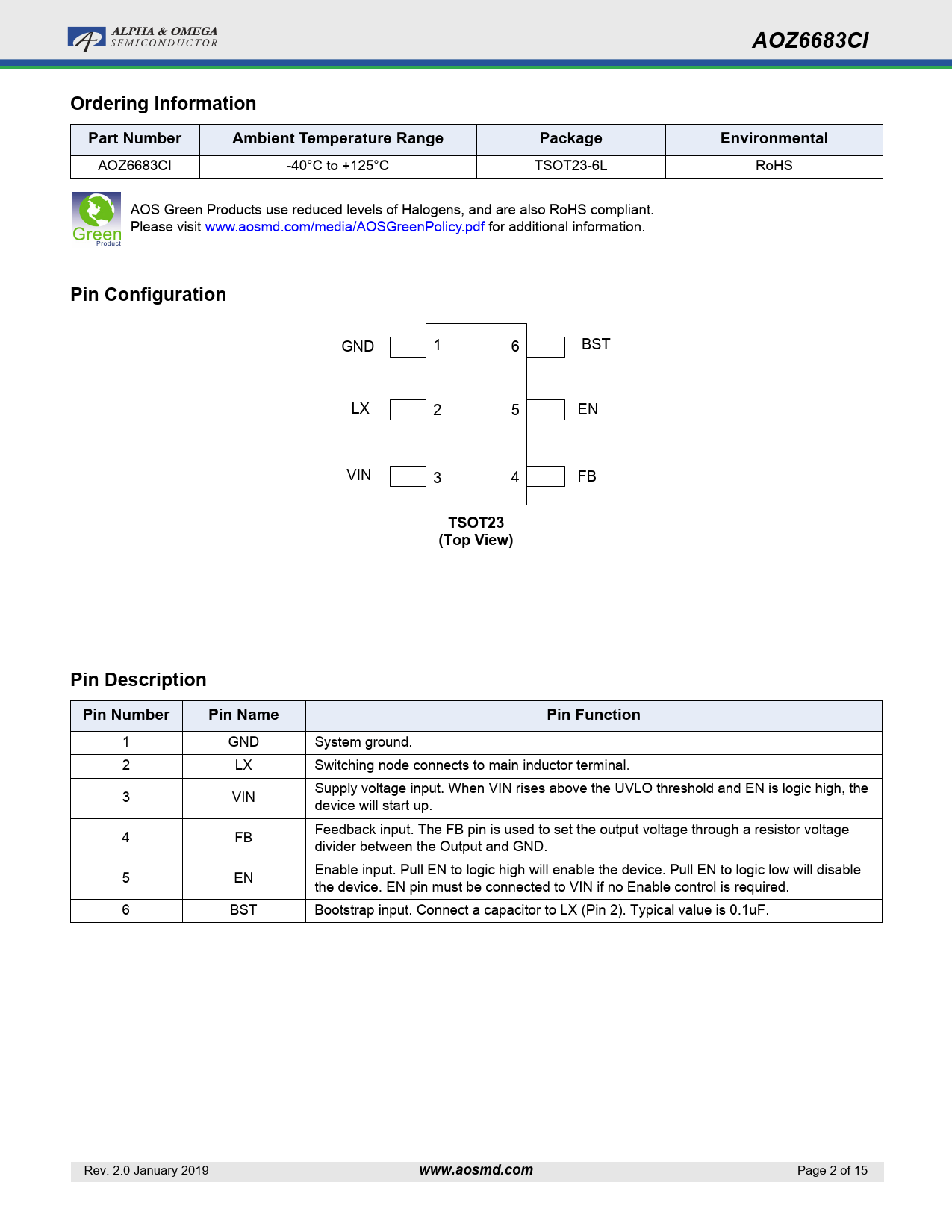

AOZ6683CI. Ordering Information. Part Number. Ambient Temperature Range. Package. Environmental. Pin Configuration. TSOT23. (Top View)
Model Line for this Datasheet
Text Version of Document
AOZ6683CI Ordering Information Part Number Ambient Temperature Range Package Environmental
AOZ6683CI -40°C to +125°C TSOT23-6L RoHS AOS Green Products use reduced levels of Halogens, and are also RoHS compliant. Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Pin Configuration
GND 1 6 BST LX 2 5 EN VIN 3 4 FB
TSOT23 (Top View) Pin Description Pin Number Pin Name Pin Function
1 GND System ground. 2 LX Switching node connects to main inductor terminal. Supply voltage input. When VIN rises above the UVLO threshold and EN is logic high, the 3 VIN device will start up. Feedback input. The FB pin is used to set the output voltage through a resistor voltage 4 FB divider between the Output and GND. Enable input. Pull EN to logic high will enable the device. Pull EN to logic low will disable 5 EN the device. EN pin must be connected to VIN if no Enable control is required. 6 BST Bootstrap input. Connect a capacitor to LX (Pin 2). Typical value is 0.1uF. Rev. 2.0 January 2019
www.aosmd.com
Page 2 of 15
AOZ6683CI -40°C to +125°C TSOT23-6L RoHS AOS Green Products use reduced levels of Halogens, and are also RoHS compliant. Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Pin Configuration
GND 1 6 BST LX 2 5 EN VIN 3 4 FB
TSOT23 (Top View) Pin Description Pin Number Pin Name Pin Function
1 GND System ground. 2 LX Switching node connects to main inductor terminal. Supply voltage input. When VIN rises above the UVLO threshold and EN is logic high, the 3 VIN device will start up. Feedback input. The FB pin is used to set the output voltage through a resistor voltage 4 FB divider between the Output and GND. Enable input. Pull EN to logic high will enable the device. Pull EN to logic low will disable 5 EN the device. EN pin must be connected to VIN if no Enable control is required. 6 BST Bootstrap input. Connect a capacitor to LX (Pin 2). Typical value is 0.1uF. Rev. 2.0 January 2019
