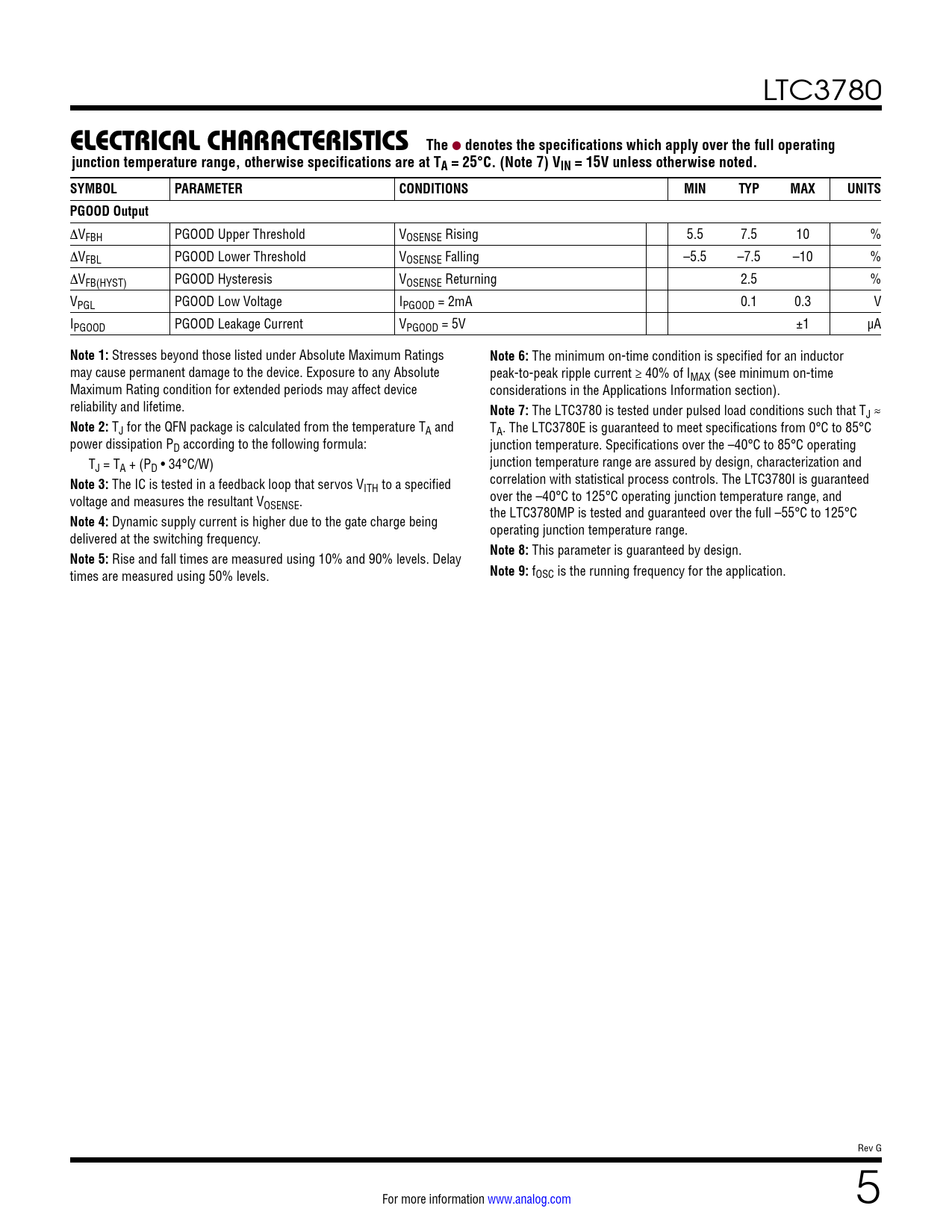

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
link to page 17 LTC3780
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating junction temperature range, otherwise specifications are at TA = 25°C. (Note 7) VIN = 15V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS PGOOD Output
∆VFBH PGOOD Upper Threshold VOSENSE Rising 5.5 7.5 10 % ∆VFBL PGOOD Lower Threshold VOSENSE Falling –5.5 –7.5 –10 % ∆VFB(HYST) PGOOD Hysteresis VOSENSE Returning 2.5 % VPGL PGOOD Low Voltage IPGOOD = 2mA 0.1 0.3 V IPGOOD PGOOD Leakage Current VPGOOD = 5V ±1 µA
