TLP2363. Photocouplers. Infrared. LED. &. Photo. IC. TLP2363. 1. Applications. •. Programmable. Logic. Controllers. (PLCs). (IEC. 61131-2). •. Factory

Datasheet TLP2363 Toshiba

Model Line for this Datasheet

Text Version of Document

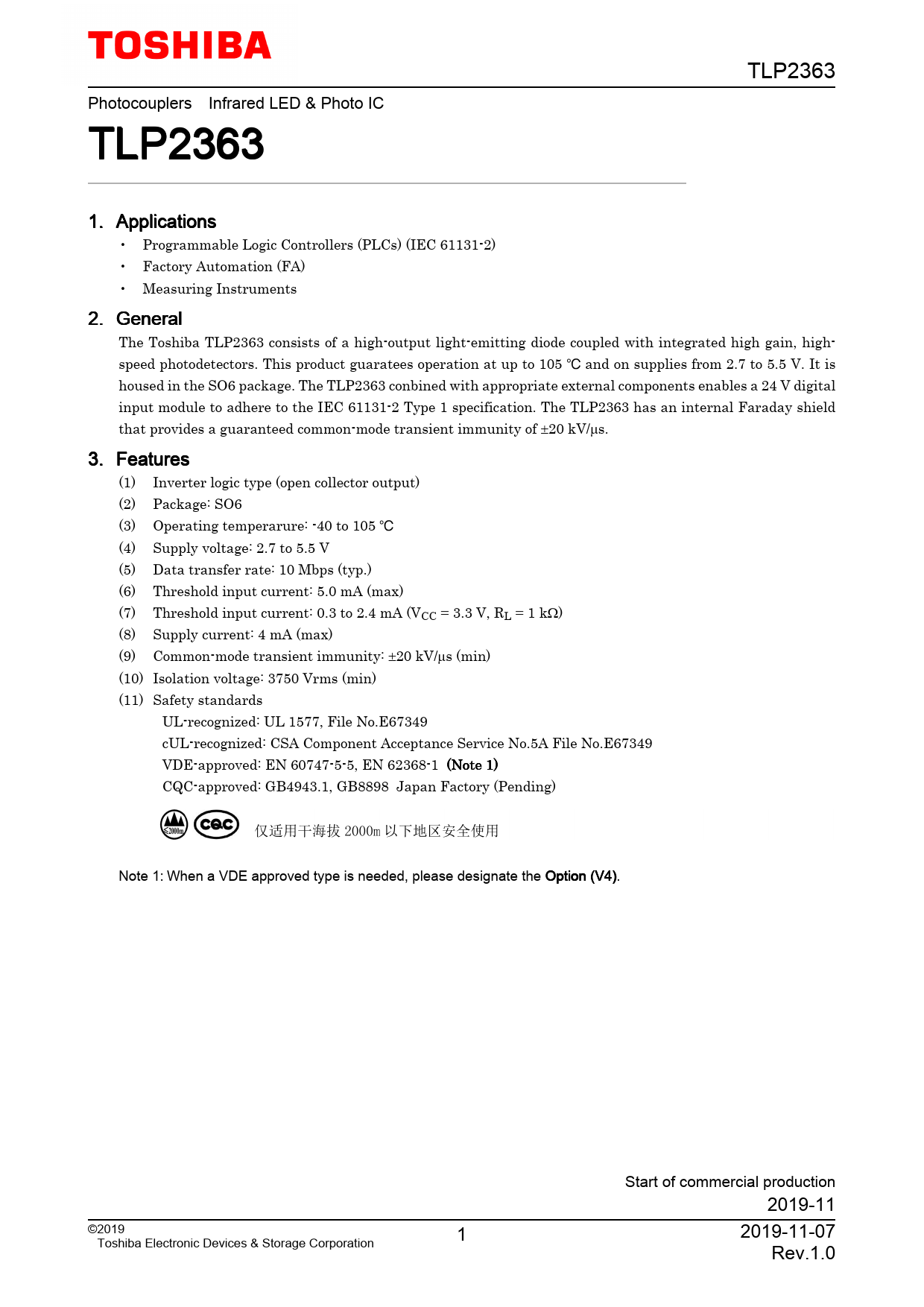

TLP2363 Photocouplers Infrared LED & Photo IC TLP2363 1. Applications • Programmable Logic Controllers (PLCs) (IEC 61131-2) • Factory Automation (FA) • Measuring Instruments 2. General The Toshiba TLP2363 consists of a high-output light-emitting diode coupled with integrated high gain, high- speed photodetectors. This product guaratees operation at up to 105 and on supplies from 2.7 to 5.5 V. It is housed in the SO6 package. The TLP2363 conbined with appropriate external components enables a 24 V digital input module to adhere to the IEC 61131-2 Type 1 specification. The TLP2363 has an internal Faraday shield that provides a guaranteed common-mode transient immunity of ±20 kV/µs. 3. Features (1) Inverter logic type (open collector output) (2) Package: SO6 (3) Operating temperarure: -40 to 105 (4) Supply voltage: 2.7 to 5.5 V (5) Data transfer rate: 10 Mbps (typ.) (6) Threshold input current: 5.0 mA (max) (7) Threshold input current: 0.3 to 2.4 mA (VCC = 3.3 V, RL = 1 kΩ) (8) Supply current: 4 mA (max) (9) Common-mode transient immunity: ±20 kV/µs (min) (10) Isolation voltage: 3750 Vrms (min) (11) Safety standards UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1) CQC-approved: GB4943.1, GB8898 Japan Factory (Pending) Note 1: When a VDE approved type is needed, please designate the Option (V4). Start of commercial production 2019-11 ©2019 1 2019-11-07 Toshiba Electronic Devices & Storage Corporation Rev.1.0
