Datasheet TLP2363 (Toshiba) - 3

ManufacturerToshiba
DescriptionPhotocouplers Infrared LED & Photo IC
Pages / Page18 / 3 — TLP2363. 7. Absolute. Maximum. Ratings. (Note). (Unless. otherwise. …
File Format / SizePDF / 856 Kb
Document LanguageEnglish

TLP2363. 7. Absolute. Maximum. Ratings. (Note). (Unless. otherwise. specified,. Ta. =. 25. ). Characteristics. Symbol. Note. Rating. Unit. LED. Input. forward

TLP2363 7 Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Rating Unit LED Input forward

Model Line for this Datasheet

Text Version of Document

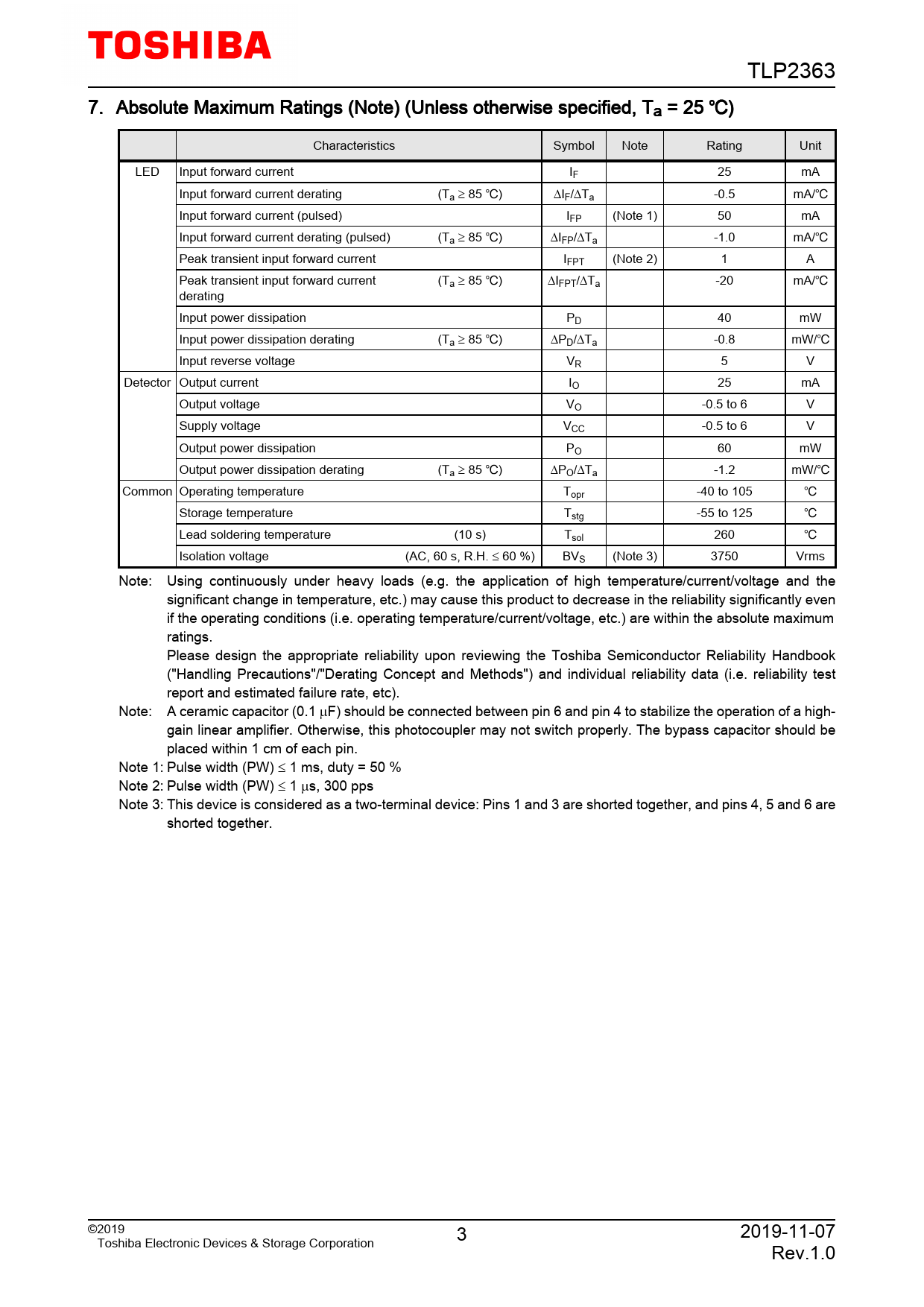

TLP2363 7. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Rating Unit LED Input forward current IF 25 mA Input forward current derating (Ta ≥ 85 ) ∆IF/∆Ta -0.5 mA/ Input forward current (pulsed) IFP (Note 1) 50 mA Input forward current derating (pulsed) (Ta ≥ 85 ) ∆IFP/∆Ta -1.0 mA/ Peak transient input forward current IFPT (Note 2) 1 A Peak transient input forward current (Ta ≥ 85 ) ∆IFPT/∆Ta -20 mA/ derating Input power dissipation PD 40 mW Input power dissipation derating (Ta ≥ 85 ) ∆PD/∆Ta -0.8 mW/ Input reverse voltage VR 5 V Detector Output current IO 25 mA Output voltage VO -0.5 to 6 V Supply voltage VCC -0.5 to 6 V Output power dissipation PO 60 mW Output power dissipation derating (Ta ≥ 85 ) ∆PO/∆Ta -1.2 mW/ Common Operating temperature Topr -40 to 105 Storage temperature Tstg -55 to 125 Lead soldering temperature (10 s) Tsol 260 Isolation voltage (AC, 60 s, R.H. ≤ 60 %) BVS (Note 3) 3750 Vrms Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Note: A ceramic capacitor (0.1 µF) should be connected between pin 6 and pin 4 to stabilize the operation of a high- gain linear amplifier. Otherwise, this photocoupler may not switch properly. The bypass capacitor should be placed within 1 cm of each pin. Note 1: Pulse width (PW) ≤ 1 ms, duty = 50 % Note 2: Pulse width (PW) ≤ 1 µs, 300 pps Note 3: This device is considered as a two-terminal device: Pins 1 and 3 are shorted together, and pins 4, 5 and 6 are shorted together. ©2019 3 2019-11-07 Toshiba Electronic Devices & Storage Corporation Rev.1.0
