Coreless, High Precision, Hall-Effect Current Sensor IC ACS37612 with Common-Mode Field Rejection and High Bandwidth (240 kHz) Multiple Busbar Design Options
The ACS37612 device offers many different mounting possibili- Refer to Allegro’s website for application notes explaining the ties, addressing different needs (bandwidth, mounting tolerances, tradeoffs between different topologies. crosstalk). The figures below show different mounting options.

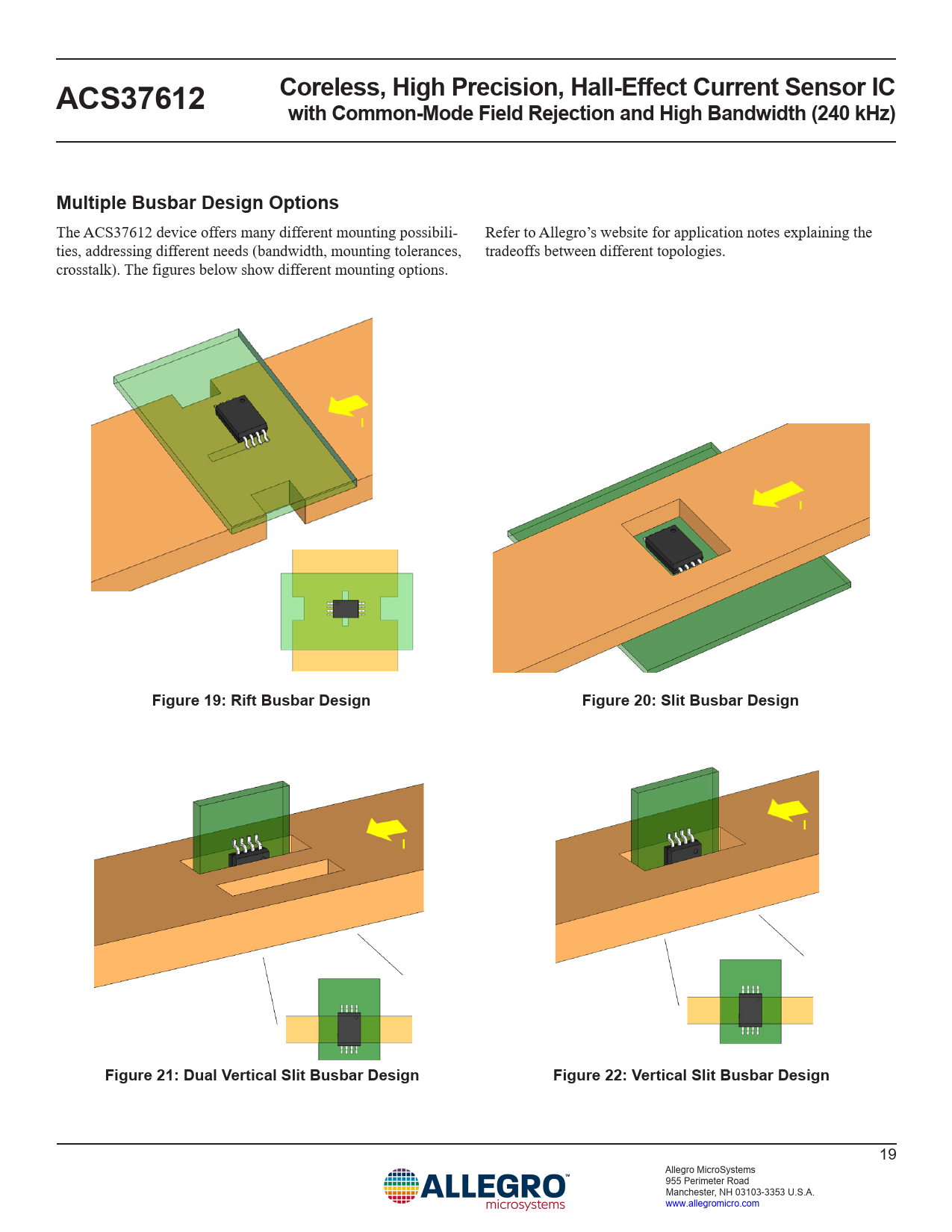

Figure 19: Rift Busbar Design Figure 20: Slit Busbar Design Figure 21: Dual Vertical Slit Busbar Design Figure 22: Vertical Slit Busbar Design
