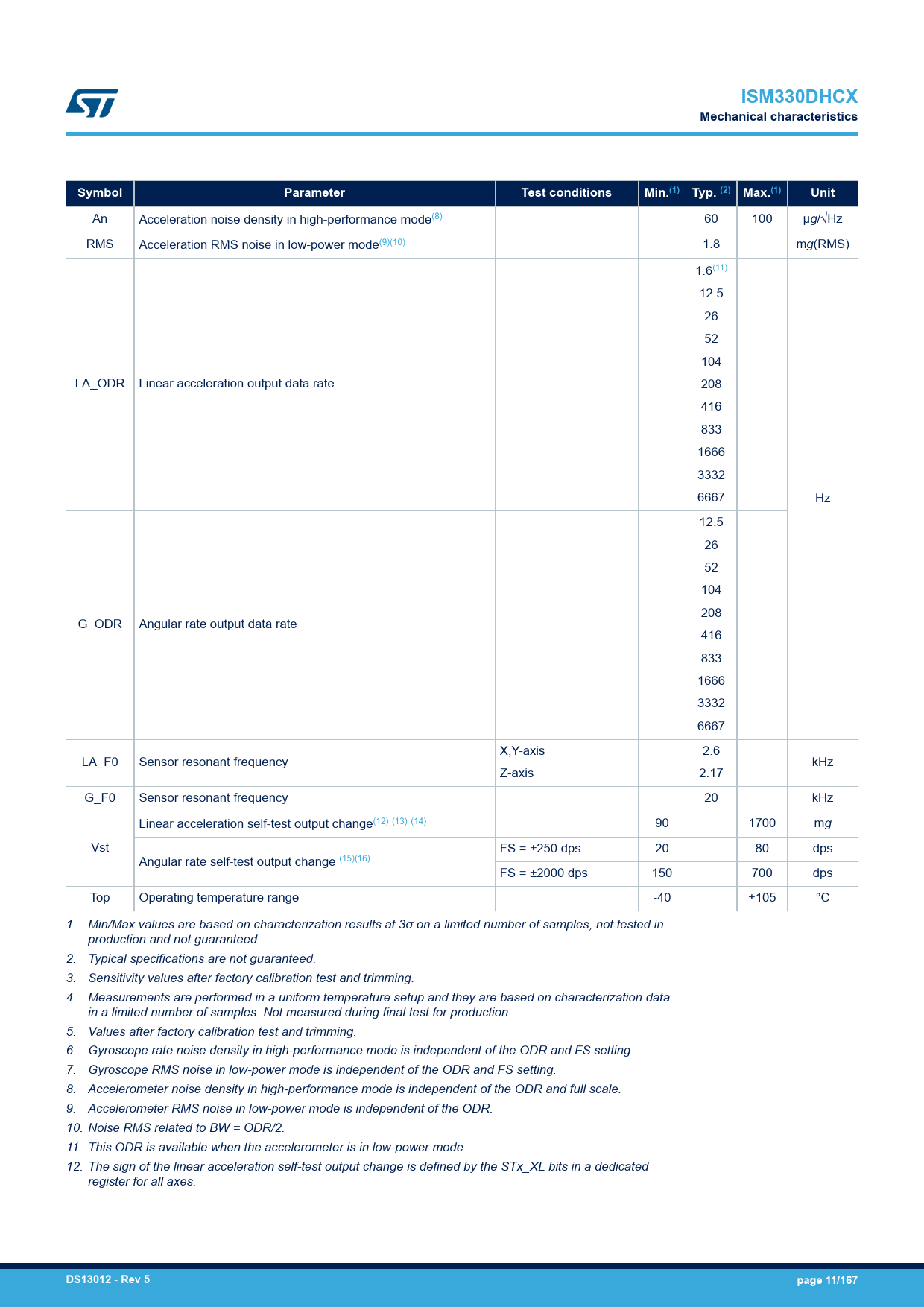

ISM330DHCX. Mechanical characteristics. Symbol. Parameter. Test conditions. Min.(1). Typ. (2). Max.(1). Unit. DS13012. Rev 5. page 11/167
Model Line for this Datasheet
Text Version of Document
link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 12 link to page 12 link to page 12 link to page 12
ISM330DHCX Mechanical characteristics Symbol Parameter Test conditions Min.(1) Typ. (2) Max.(1) Unit
An Acceleration noise density in high-performance mode(8) 60 100 µg/√Hz RMS Acceleration RMS noise in low-power mode(9)(10) 1.8 mg(RMS) 1.6(11) 12.5 26 52 104 LA_ODR Linear acceleration output data rate 208 416 833 1666 3332 6667 Hz 12.5 26 52 104 208 G_ODR Angular rate output data rate 416 833 1666 3332 6667 X,Y-axis 2.6 LA_F0 Sensor resonant frequency kHz Z-axis 2.17 G_F0 Sensor resonant frequency 20 kHz Linear acceleration self-test output change(12) (13) (14) 90 1700 mg Vst FS = ±250 dps 20 80 dps Angular rate self-test output change (15)(16) FS = ±2000 dps 150 700 dps Top Operating temperature range -40 +105 °C 1. Min/Max values are based on characterization results at 3σ on a limited number of samples, not tested in production and not guaranteed. 2. Typical specifications are not guaranteed. 3. Sensitivity values after factory calibration test and trimming. 4. Measurements are performed in a uniform temperature setup and they are based on characterization data in a limited number of samples. Not measured during final test for production. 5. Values after factory calibration test and trimming. 6. Gyroscope rate noise density in high-performance mode is independent of the ODR and FS setting. 7. Gyroscope RMS noise in low-power mode is independent of the ODR and FS setting. 8. Accelerometer noise density in high-performance mode is independent of the ODR and full scale. 9. Accelerometer RMS noise in low-power mode is independent of the ODR. 10. Noise RMS related to BW = ODR/2. 11. This ODR is available when the accelerometer is in low-power mode. 12. The sign of the linear acceleration self-test output change is defined by the STx_XL bits in a dedicated register for all axes.
