Datasheet OP97 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Low Power, High Precision Operational Amplifier |
| Pages / Page | 16 / 5 — OP97. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter … |
| Revision | G |
| File Format / Size | PDF / 612 Kb |
| Document Language | English |
OP97. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter Rating. Table 4. Package Type. θ 1. θJC Unit. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 5 link to page 5 link to page 5

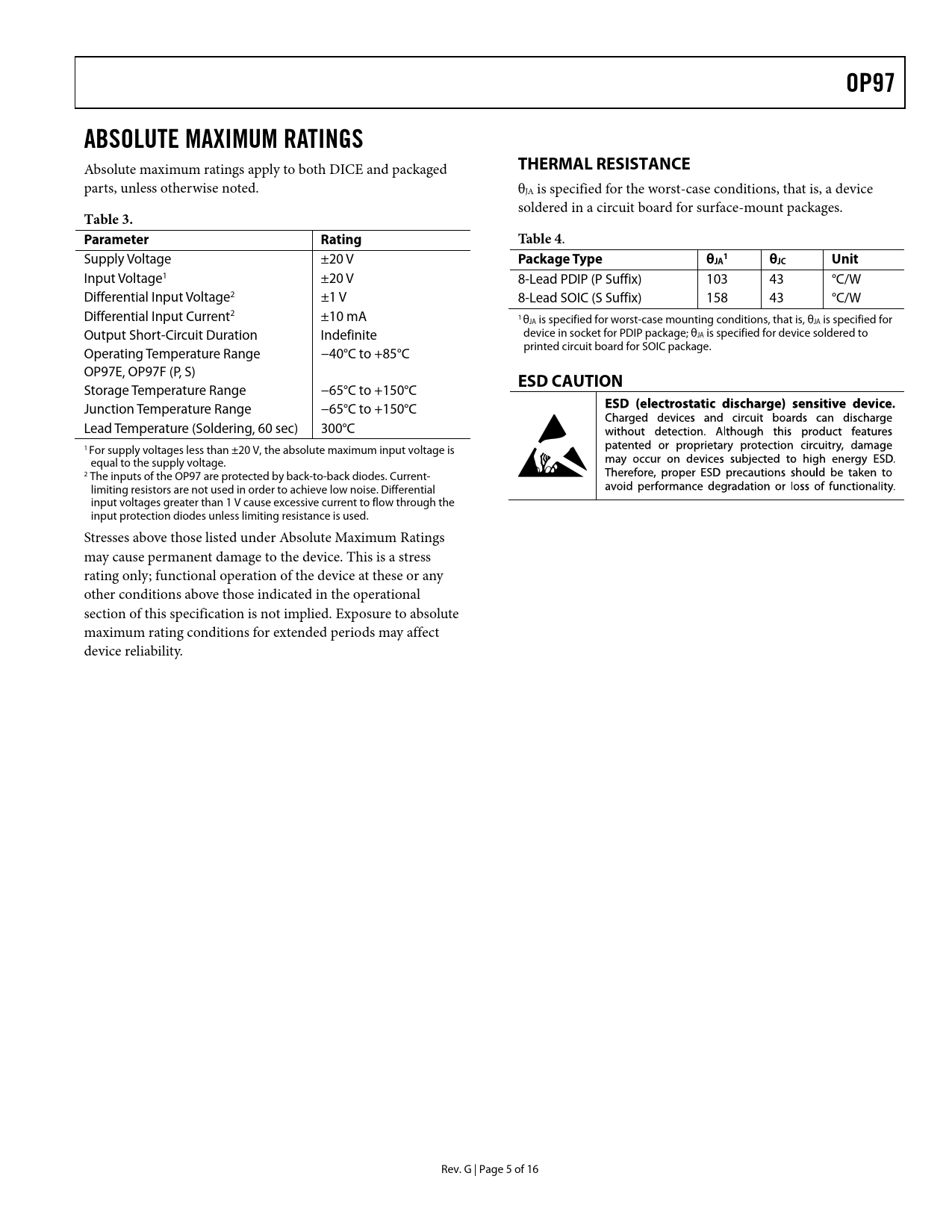

OP97 ABSOLUTE MAXIMUM RATINGS
Absolute maximum ratings apply to both DICE and packaged
THERMAL RESISTANCE
parts, unless otherwise noted. θJA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages.
Table 3. Parameter Rating Table 4
. Supply Voltage ±20 V
Package Type θ 1 JA θJC Unit
Input Voltage1 ±20 V 8-Lead PDIP (P Suffix) 103 43 °C/W Differential Input Voltage2 ±1 V 8-Lead SOIC (S Suffix) 158 43 °C/W Differential Input Current2 ±10 mA 1 θJA is specified for worst-case mounting conditions, that is, θJA is specified for Output Short-Circuit Duration Indefinite device in socket for PDIP package; θJA is specified for device soldered to printed circuit board for SOIC package. Operating Temperature Range −40°C to +85°C OP97E, OP97F (P, S)
ESD CAUTION
Storage Temperature Range −65°C to +150°C Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C 1 For supply voltages less than ±20 V, the absolute maximum input voltage is equal to the supply voltage. 2 The inputs of the OP97 are protected by back-to-back diodes. Current- limiting resistors are not used in order to achieve low noise. Differential input voltages greater than 1 V cause excessive current to flow through the input protection diodes unless limiting resistance is used. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. G | Page 5 of 16 Document Outline FEATURES PIN CONNECTIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION INFORMATION AC PERFORMANCE GUARDING AND SHIELDING OUTLINE DIMENSIONS ORDERING GUIDE
