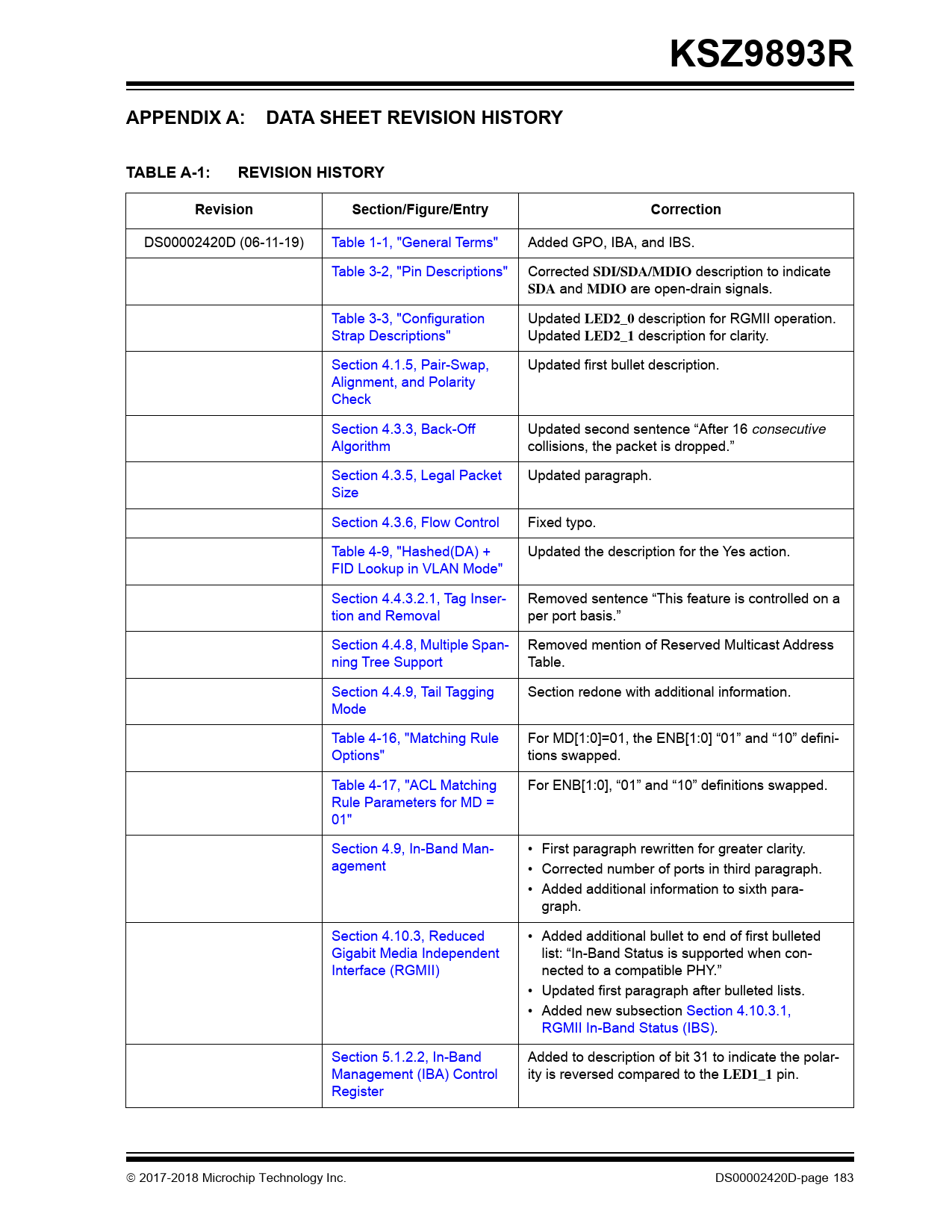

KSZ9893R APPENDIX A: DATA SHEET REVISION HISTORY TABLE A-1: REVISION HISTORY Revision Section/Figure/Entry Correction
DS00002420D (06-11-19) Table 1-1, "General Terms" Added GPO, IBA, and IBS. Table 3-2, "Pin Descriptions" Corrected
SDI/SDA/MDIO
description to indicate
SDA
and
MDIO
are open-drain signals. Table 3-3, "Configuration Updated
LED2_0
description for RGMII operation. Strap Descriptions" Updated
LED2_1
description for clarity. Section 4.1.5, Pair-Swap, Updated first bullet description. Alignment, and Polarity Check Section 4.3.3, Back-Off Updated second sentence “After 16 consecutive Algorithm collisions, the packet is dropped.” Section 4.3.5, Legal Packet Updated paragraph. Size Section 4.3.6, Flow Control Fixed typo. Table 4-9, "Hashed(DA) + Updated the description for the Yes action. FID Lookup in VLAN Mode" Section 4.4.3.2.1, Tag Inser- Removed sentence “This feature is controlled on a tion and Removal per port basis.” Section 4.4.8, Multiple Span- Removed mention of Reserved Multicast Address ning Tree Support Table. Section 4.4.9, Tail Tagging Section redone with additional information. Mode Table 4-16, "Matching Rule For MD[1:0]=01, the ENB[1:0] “01” and “10” defini- Options" tions swapped. Table 4-17, "ACL Matching For ENB[1:0], “01” and “10” definitions swapped. Rule Parameters for MD = 01" Section 4.9, In-Band Man- • First paragraph rewritten for greater clarity. agement • Corrected number of ports in third paragraph. • Added additional information to sixth para- graph. Section 4.10.3, Reduced • Added additional bullet to end of first bulleted Gigabit Media Independent list: “In-Band Status is supported when con- Interface (RGMII) nected to a compatible PHY.” • Updated first paragraph after bulleted lists. • Added new subsection Section 4.10.3.1, RGMII In-Band Status (IBS). Section 5.1.2.2, In-Band Added to description of bit 31 to indicate the polar- Management (IBA) Control ity is reversed compared to the
LED1_1
