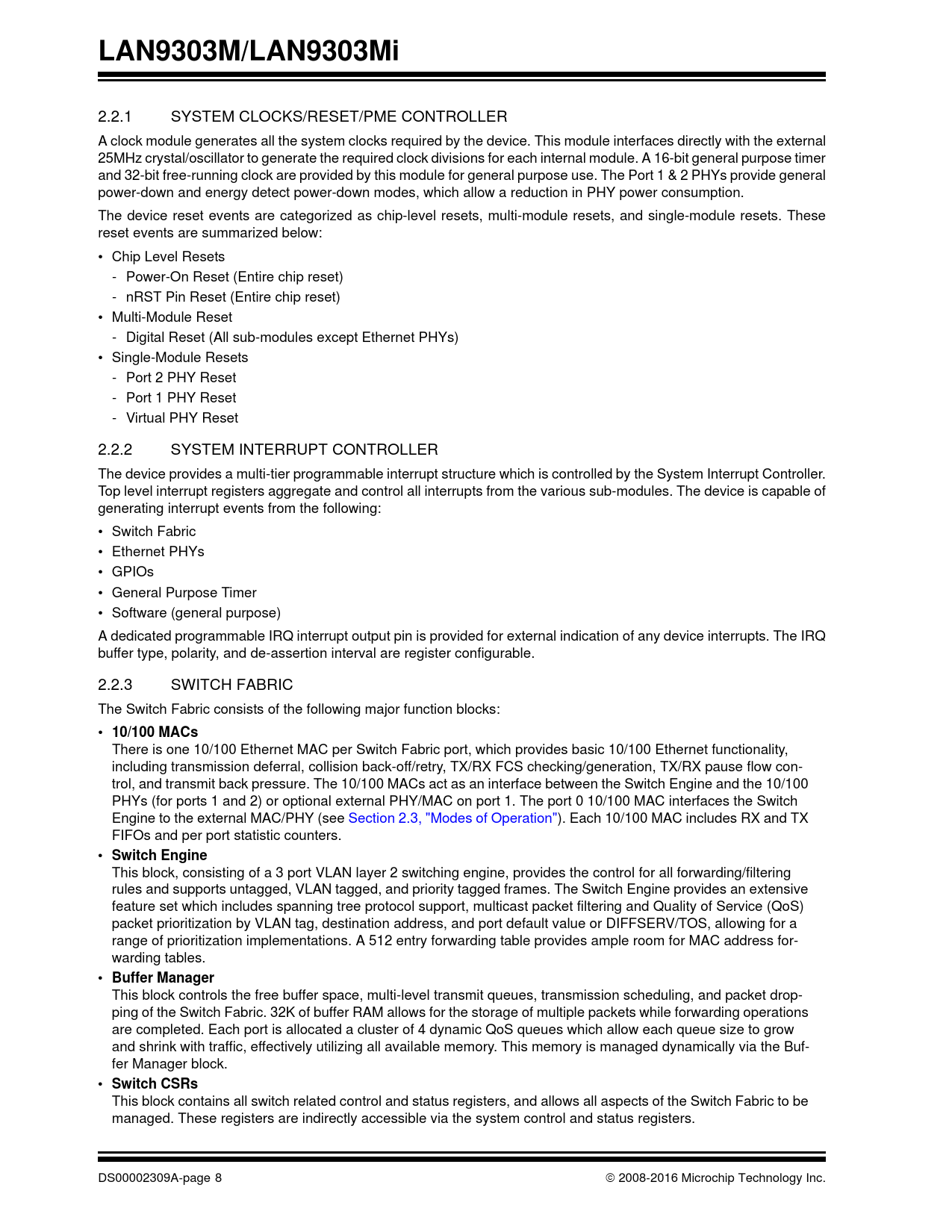

2.2.1 SYSTEM CLOCKS/RESET/PME CONTROLLER A clock module generates all the system clocks required by the device. This module interfaces directly with the external 25MHz crystal/oscillator to generate the required clock divisions for each internal module. A 16-bit general purpose timer and 32-bit free-running clock are provided by this module for general purpose use. The Port 1 & 2 PHYs provide general power-down and energy detect power-down modes, which allow a reduction in PHY power consumption. The device reset events are categorized as chip-level resets, multi-module resets, and single-module resets. These reset events are summarized below: • Chip Level Resets - Power-On Reset (Entire chip reset) - nRST Pin Reset (Entire chip reset) • Multi-Module Reset - Digital Reset (All sub-modules except Ethernet PHYs) • Single-Module Resets - Port 2 PHY Reset - Port 1 PHY Reset - Virtual PHY Reset 2.2.2 SYSTEM INTERRUPT CONTROLLER The device provides a multi-tier programmable interrupt structure which is controlled by the System Interrupt Controller. Top level interrupt registers aggregate and control all interrupts from the various sub-modules. The device is capable of generating interrupt events from the following: • Switch Fabric • Ethernet PHYs • GPIOs • General Purpose Timer • Software (general purpose) A dedicated programmable IRQ interrupt output pin is provided for external indication of any device interrupts. The IRQ buffer type, polarity, and de-assertion interval are register configurable. 2.2.3 SWITCH FABRIC The Switch Fabric consists of the following major function blocks: •
10/100 MACs
There is one 10/100 Ethernet MAC per Switch Fabric port, which provides basic 10/100 Ethernet functionality, including transmission deferral, collision back-off/retry, TX/RX FCS checking/generation, TX/RX pause flow con- trol, and transmit back pressure. The 10/100 MACs act as an interface between the Switch Engine and the 10/100 PHYs (for ports 1 and 2) or optional external PHY/MAC on port 1. The port 0 10/100 MAC interfaces the Switch Engine to the external MAC/PHY (see Section 2.3, "Modes of Operation"). Each 10/100 MAC includes RX and TX FIFOs and per port statistic counters. •
Switch Engine
This block, consisting of a 3 port VLAN layer 2 switching engine, provides the control for all forwarding/filtering rules and supports untagged, VLAN tagged, and priority tagged frames. The Switch Engine provides an extensive feature set which includes spanning tree protocol support, multicast packet filtering and Quality of Service (QoS) packet prioritization by VLAN tag, destination address, and port default value or DIFFSERV/TOS, allowing for a range of prioritization implementations. A 512 entry forwarding table provides ample room for MAC address for- warding tables. •
Buffer Manager
This block controls the free buffer space, multi-level transmit queues, transmission scheduling, and packet drop- ping of the Switch Fabric. 32K of buffer RAM allows for the storage of multiple packets while forwarding operations are completed. Each port is allocated a cluster of 4 dynamic QoS queues which allow each queue size to grow and shrink with traffic, effectively utilizing all available memory. This memory is managed dynamically via the Buf- fer Manager block. •
Switch CSRs
This block contains all switch related control and status registers, and allows all aspects of the Switch Fabric to be managed. These registers are indirectly accessible via the system control and status registers. DS00002309A-page 8
