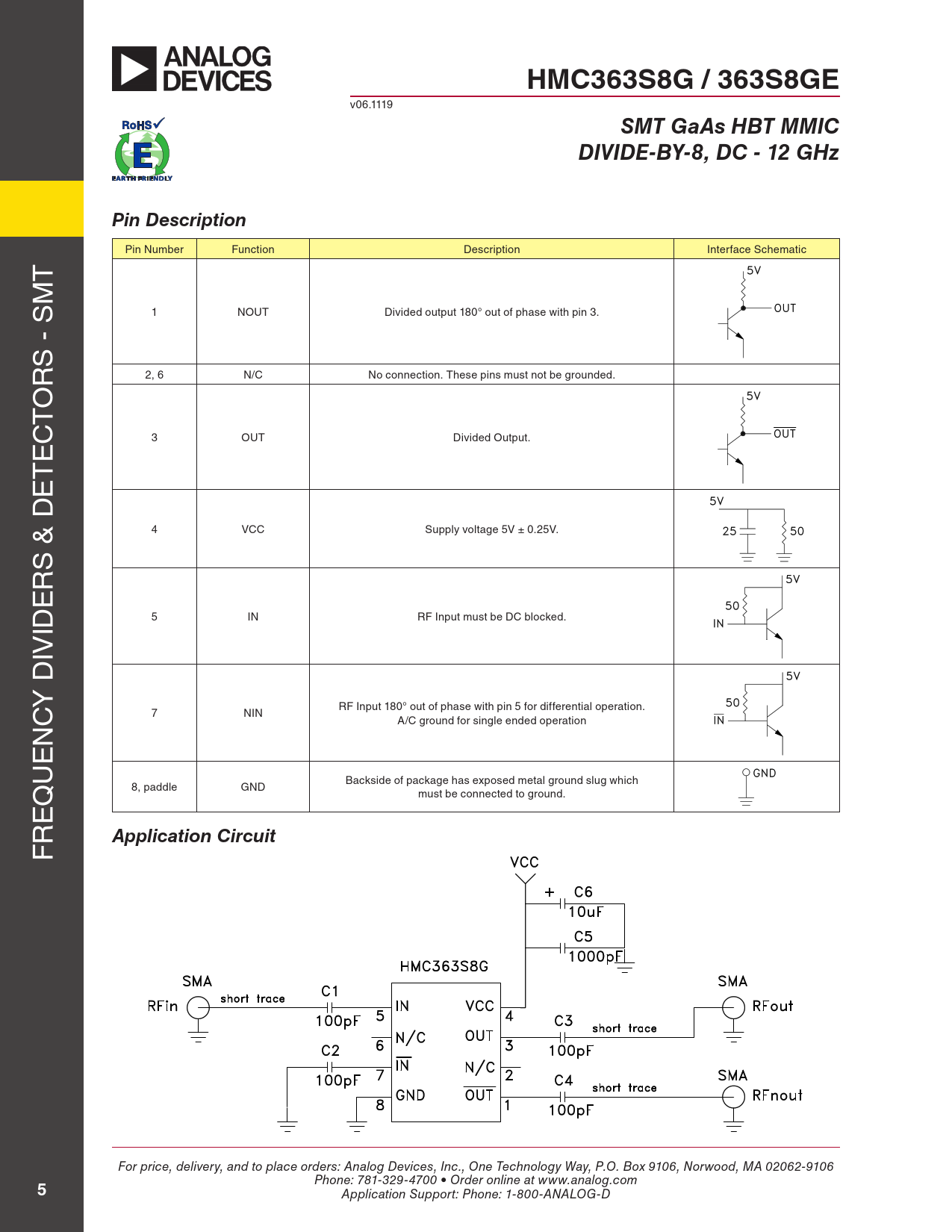

HMC363S8G / 363S8GE. SMT GaAs HBT MMIC. DIVIDE-BY-8, DC - 12 GHz. Pin Description. Application Circuit
Model Line for this Datasheet
Text Version of Document
HMC363S8G / 363S8GE
v06.1119
SMT GaAs HBT MMIC DIVIDE-BY-8, DC - 12 GHz Pin Description
Pin number Function Description interface schematic t M s 1 nout Divided output 180° out of phase with pin 3. s - r 2, 6 n/c no connection. these pins must not be grounded. o t c e 3 out Divided output. t e 4 vcc supply voltage 5v ± 0.25v. s & D r e iD 5 in rF input must be Dc blocked. iv y D c rF input 180° out of phase with pin 5 for differential operation. 7 nin A/c ground for single ended operation n e u Backside of package has exposed metal ground slug which q 8, paddle GnD must be connected to ground. e r F
Application Circuit
