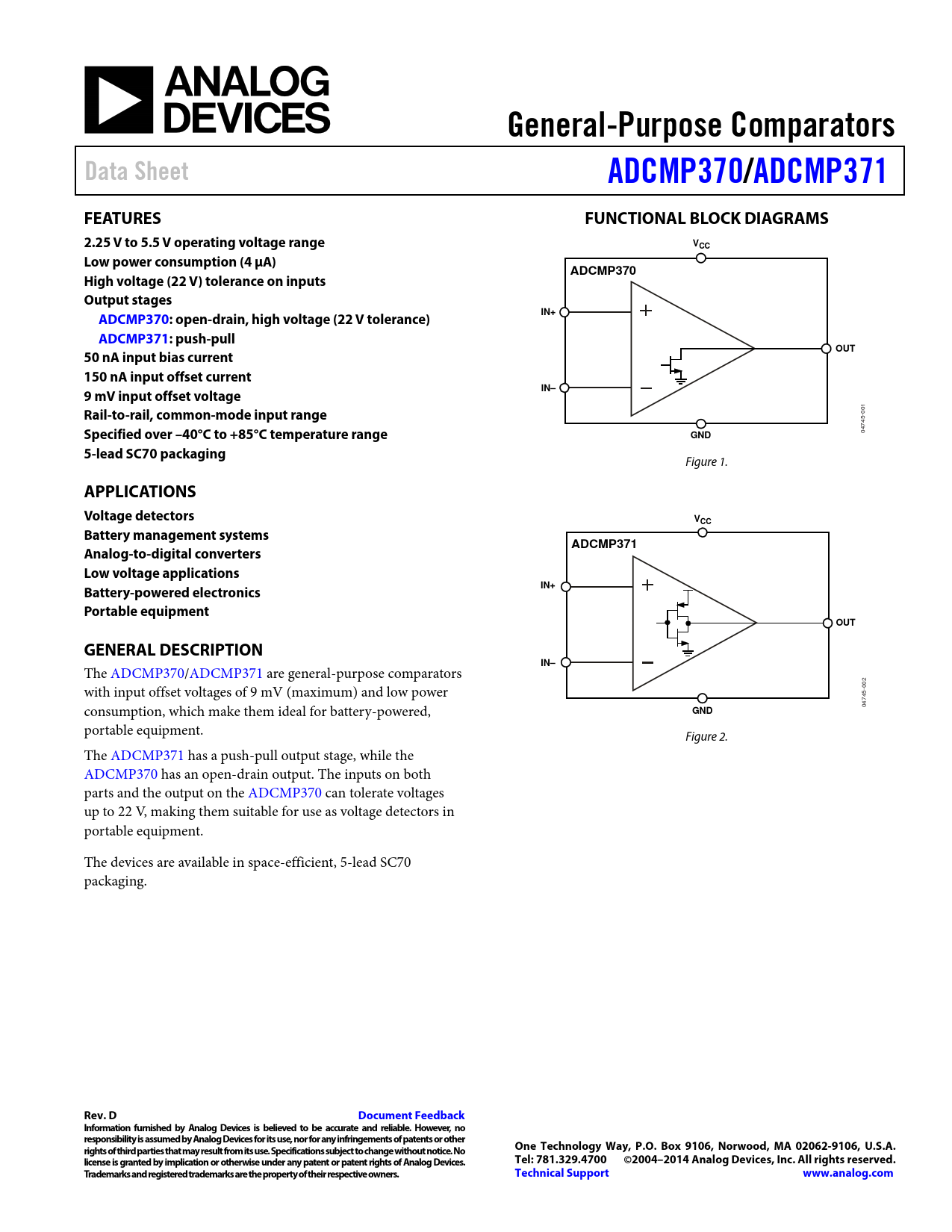

General-Purpose Comparators. Data Sheet. ADCMP370/. ADCMP371. FEATURES. FUNCTIONAL BLOCK DIAGRAMS
Model Line for this Datasheet
Text Version of Document
General-Purpose Comparators Data Sheet ADCMP370/ ADCMP371 FEATURES FUNCTIONAL BLOCK DIAGRAMS 2.25 V to 5.5 V operating voltage range VCC Low power consumption (4 µA) ADCMP370 High voltage (22 V) tolerance on inputs Output stages ADCMP370: o pen-drain, high voltage (22 V tolerance) IN+ ADCMP371: p ush-pull OUT 50 nA input bias current 150 nA input offset current 9 mV input offset voltage IN– Rail-to-rail, common-mode input range Specified over –40°C to +85°C temperature range
04745-001
GND 5-lead SC70 packaging
Figure 1.
APPLICATIONS Voltage detectors VCC Battery management systems ADCMP371 Analog-to-digital converters Low voltage applications Battery-powered electronics IN+ Portable equipment OUT GENERAL DESCRIPTION IN–
The ADCMP370/ADCMP371 are general-purpose comparators with input offset voltages of 9 mV (maximum) and low power consumption, which make them ideal for battery-powered, 04745-002
GND
portable equipment. Figure 2. The ADCMP371 has a push-pull output stage, while the ADCMP370 has an open-drain output. The inputs on both parts and the output on the ADCMP370 can tolerate voltages up to 22 V, making them suitable for use as voltage detectors in portable equipment. The devices are available in space-efficient, 5-lead SC70 packaging.
