Datasheet ADCMP565 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Dual Ultrafast Voltage Comparator |
| Pages / Page | 16 / 5 — Table 2. ADCMP565 Absolute Maximum Ratings. THERMAL CONSIDERATIONS. … |
| File Format / Size | PDF / 207 Kb |
| Document Language | English |
Table 2. ADCMP565 Absolute Maximum Ratings. THERMAL CONSIDERATIONS. Parameter. Rating. Supply. Voltages. Input. Output. Temperature
Model Line for this Datasheet
Text Version of Document

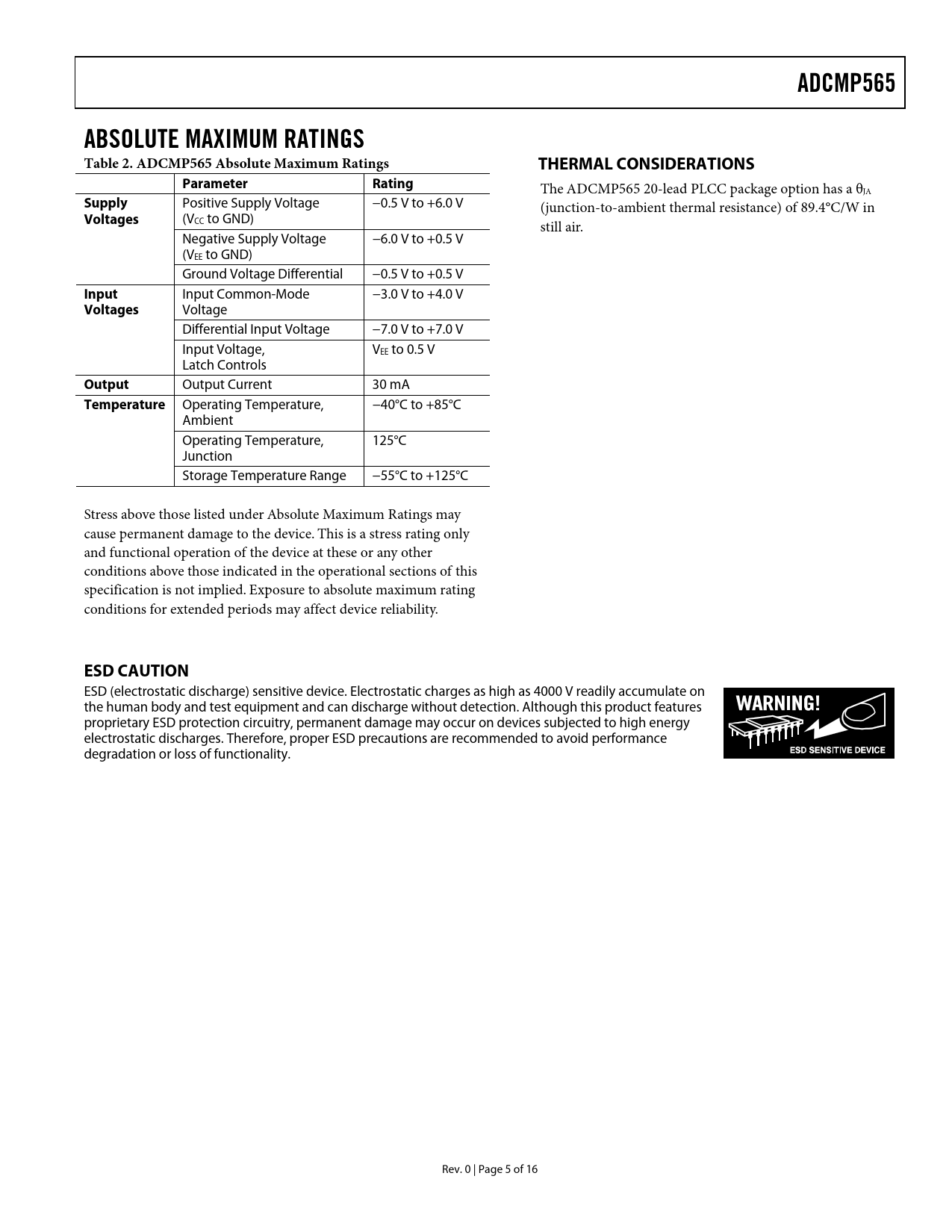

link to page 5 ADCMP565 ABSOLUTE MAXIMUM RATINGS
Table 2. ADCMP565 Absolute Maximum Ratings THERMAL CONSIDERATIONS Parameter Rating
The ADCMP565 20-lead PLCC package option has a θJA
Supply
Positive Supply Voltage −0.5 V to +6.0 V (junction-to-ambient thermal resistance) of 89.4°C/W in
Voltages
(VCC to GND) still air. Negative Supply Voltage −6.0 V to +0.5 V (VEE to GND) Ground Voltage Differential −0.5 V to +0.5 V
Input
Input Common-Mode −3.0 V to +4.0 V
Voltages
Voltage Differential Input Voltage −7.0 V to +7.0 V Input Voltage, VEE to 0.5 V Latch Controls
Output
Output Current 30 mA
Temperature
Operating Temperature, −40°C to +85°C Ambient Operating Temperature, 125°C Junction Storage Temperature Range −55°C to +125°C Stress above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. 0 | Page 5 of 16 Document Outline SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CONSIDERATIONS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TIMING INFORMATION APPLICATION INFORMATION CLOCK TIMING RECOVERY OPTIMIZING HIGH SPEED PERFORMANCE COMPARATOR PROPAGATION DELAY DISPERSION COMPARATOR HYSTERESIS MINIMUM INPUT SLEW RATE REQUIREMENT TYPICAL APPLICATION CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
