Datasheet MOC205M, MOC206M, MOC207M, MOC211M, MOC212M, MOC213M, MOC216M, MOC217M (ON Semiconductor) - 10
| Manufacturer | ON Semiconductor |
| Description | 8-pin SOIC Single-Channel Phototransistor Output |
| Pages / Page | 12 / 10 |
| Revision | A |
| File Format / Size | PDF / 342 Kb |
| Document Language | English |
Model Line for this Datasheet
Text Version of Document

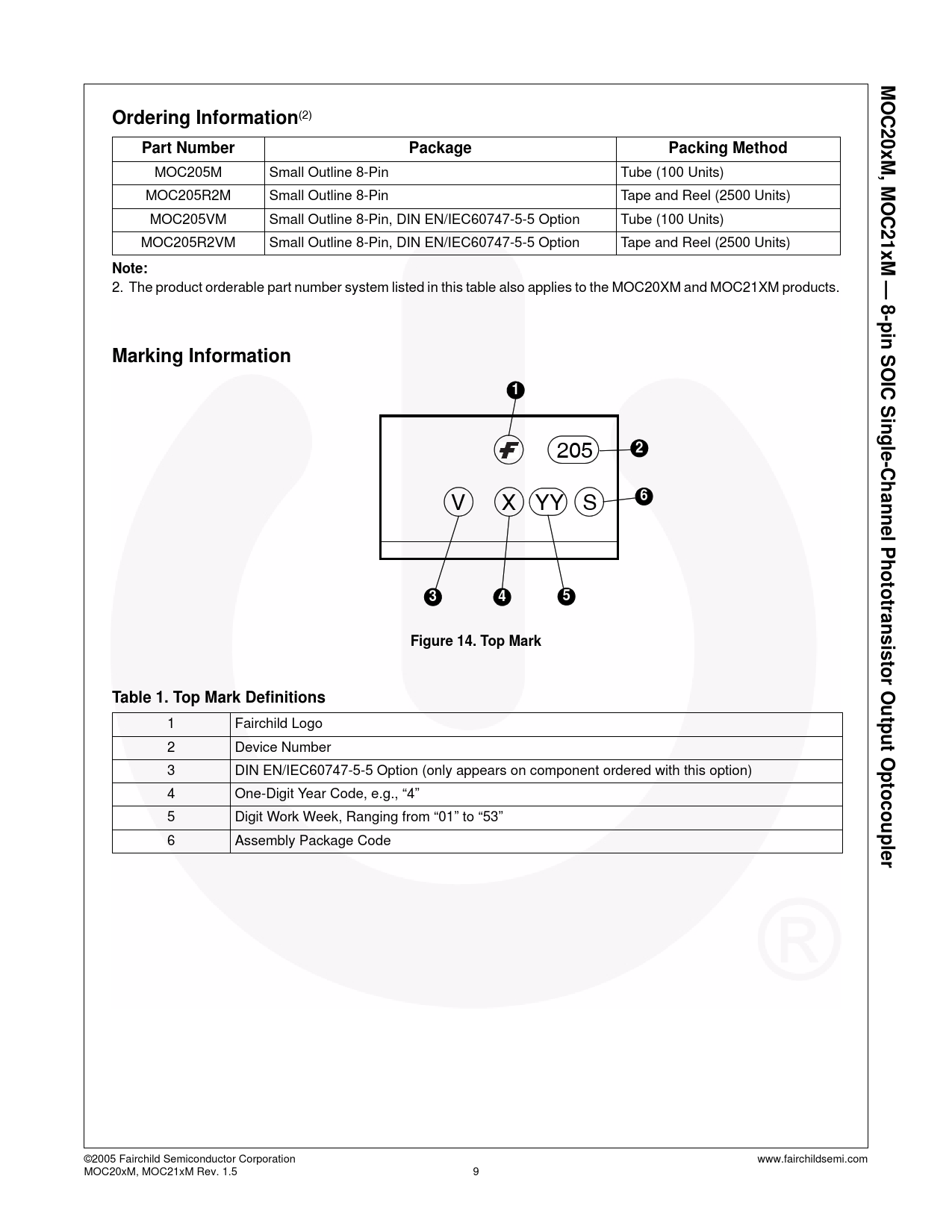

Part Number Package Packing Method MOC205M Small Outline 8-Pin Tube (100 Units) MOC205R2M Small Outline 8-Pin Tape and Reel (2500 Units) MOC205VM Small Outline 8-Pin, DIN EN/IEC60747-5-5 Option Tube (100 Units) MOC205R2VM Small Outline 8-Pin, DIN EN/IEC60747-5-5 Option Tape and Reel (2500 Units) Note:
2. The product orderable part number system listed in this table also applies to the MOC20XM and MOC21XM products. Marking Information
1 205
V X YY S 3 4 2 6 5 Figure 14. Top Mark Table 1. Top Mark Definitions
1 Fairchild Logo 2 Device Number 3 DIN EN/IEC60747-5-5 Option (only appears on component ordered with this option) 4 One-Digit Year Code, e.g., “4” 5 Digit Work Week, Ranging from “01” to “53” 6 Assembly Package Code ©2005 Fairchild Semiconductor Corporation
MOC20xM, MOC21xM Rev. 1.5 www.fairchildsemi.com
9 MOC20xM, MOC21xM — 8-pin SOIC Single-Channel Phototransistor Output Optocoupler Ordering Information(2)
