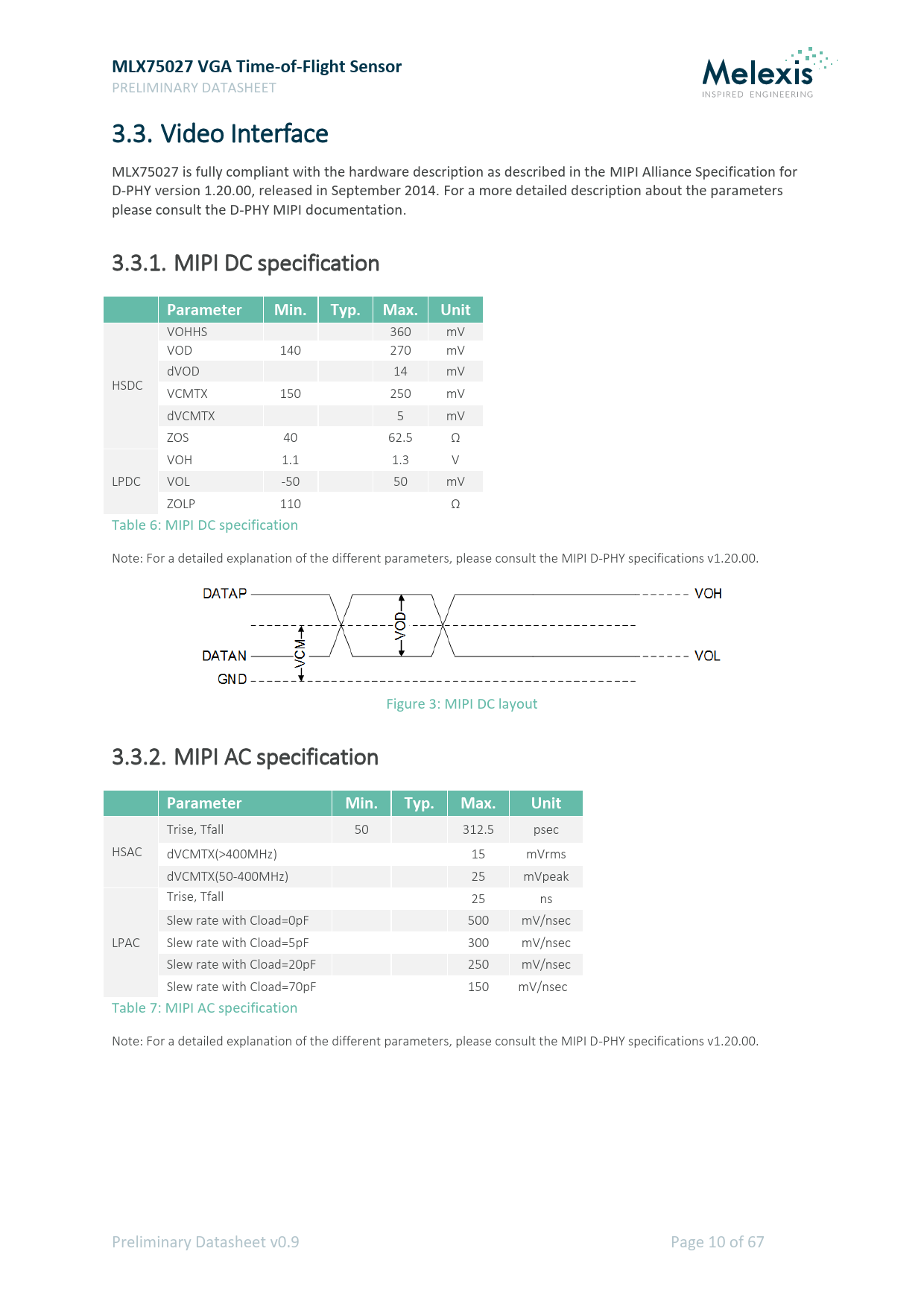

MLX75027 VGA Time-of-Flight Sensor
PRELIMINARY DATASHEET 3.3.
Video Interface MLX75027 is fully compliant with the hardware description as described in the MIPI Alliance Specification for D-PHY version 1.20.00, released in September 2014. For a more detailed description about the parameters please consult the D-PHY MIPI documentation. 3.3.1.
MIPI DC specification
Parameter Min. Typ. Max. Unit
VOHHS 360 mV VOD 140 270 mV dVOD 14 mV HSDC VCMTX 150 250 mV dVCMTX 5 mV ZOS 40 62.5 Ω VOH 1.1 1.3 V LPDC VOL -50 50 mV ZOLP 110 Ω Table 6: MIPI DC specification Note: For a detailed explanation of the different parameters, please consult the MIPI D-PHY specifications v1.20.00. Figure 3: MIPI DC layout 3.3.2.
MIPI AC specification
Parameter Min. Typ. Max. Unit
