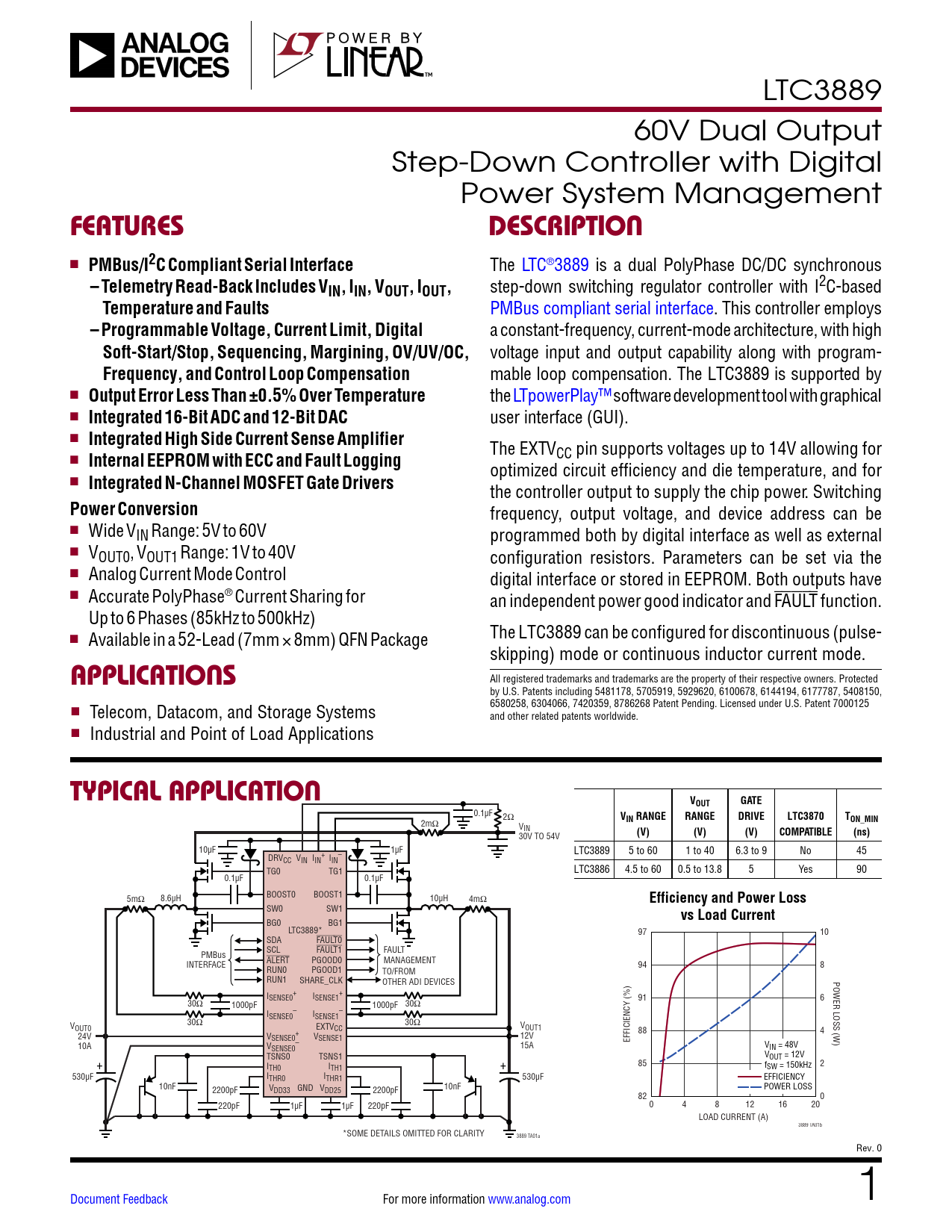

LTC3889 60V Dual Output Step-Down Controller with Digital Power System Management
FEATURES DESCRIPTION
n
PMBus/I2C Compliant Serial Interface
The LTC®3889 is a dual PolyPhase DC/DC synchronous
– Telemetry Read-Back Includes VIN, IIN, VOUT, IOUT,
step-down switching regulator controller with I2C-based
Temperature and Faults
PMBus compliant serial interface. This controller employs
– Programmable Voltage, Current Limit, Digital
a constant-frequency, current-mode architecture, with high
Soft-Start/Stop, Sequencing, Margining, OV/UV/OC,
voltage input and output capability along with program-
Frequency, and Control Loop Compensation
mable loop compensation. The LTC3889 is supported by n
Output Error Less Than ±0.5% Over Temperature
the LTpowerPlay™ software development tool with graphical n
Integrated 16-Bit ADC and 12-Bit DAC
user interface (GUI). n
Integrated High Side Current Sense Amplifier
The EXTVCC pin supports voltages up to 14V allowing for n
Internal EEPROM with ECC and Fault Logging
optimized circuit efficiency and die temperature, and for n
Integrated N-Channel MOSFET Gate Drivers
the controller output to supply the chip power. Switching
Power Conversion
frequency, output voltage, and device address can be n Wide VIN Range: 5V to 60V programmed both by digital interface as well as external n VOUT0, VOUT1 Range: 1V to 40V configuration resistors. Parameters can be set via the n Analog Current Mode Control digital interface or stored in EEPROM. Both outputs have n Accurate PolyPhase® Current Sharing for an independent power good indicator and FAULT function. Up to 6 Phases (85kHz to 500kHz) n The LTC3889 can be configured for discontinuous (pulse- Available in a 52-Lead (7mm × 8mm) QFN Package skipping) mode or continuous inductor current mode.
APPLICATIONS
All registered trademarks and trademarks are the property of their respective owners. Protected by U.S. Patents including 5481178, 5705919, 5929620, 6100678, 6144194, 6177787, 5408150, 6580258, 6304066, 7420359, 8786268 Patent Pending. Licensed under U.S. Patent 7000125 n Telecom, Datacom, and Storage Systems and other related patents worldwide. n Industrial and Point of Load Applications
TYPICAL APPLICATION VOUT GATE
0.1µF 2Ω
V RANGE DRIVE LTC3870 T
2mΩ
IN RANGE ON_MIN
VIN 30V TO 54V
(V) (V) (V) COMPATIBLE (ns)
10µF 1µF LTC3889 5 to 60 1 to 40 6.3 to 9 No 45 DRV + – CC VIN IIN IIN TG0 TG1 LTC3886 4.5 to 60 0.5 to 13.8 5 Yes 90 0.1µF 0.1µF BOOST0 BOOST1 5mΩ 8.6µH 10µH 4mΩ
