Datasheet LTC3889 (Analog Devices) - 5

ManufacturerAnalog Devices
Description60V Dual Output Step-Down Controller with Digital Power System Management
Pages / Page120 / 5 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply …
File Format / SizePDF / 2.5 Mb
Document LanguageEnglish

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the specified operating

ELECTRICAL CHARACTERISTICS The denotes the specifications which apply over the specified operating

Model Line for this Datasheet

Text Version of Document

LTC3889
ELECTRICAL CHARACTERISTICS The
l

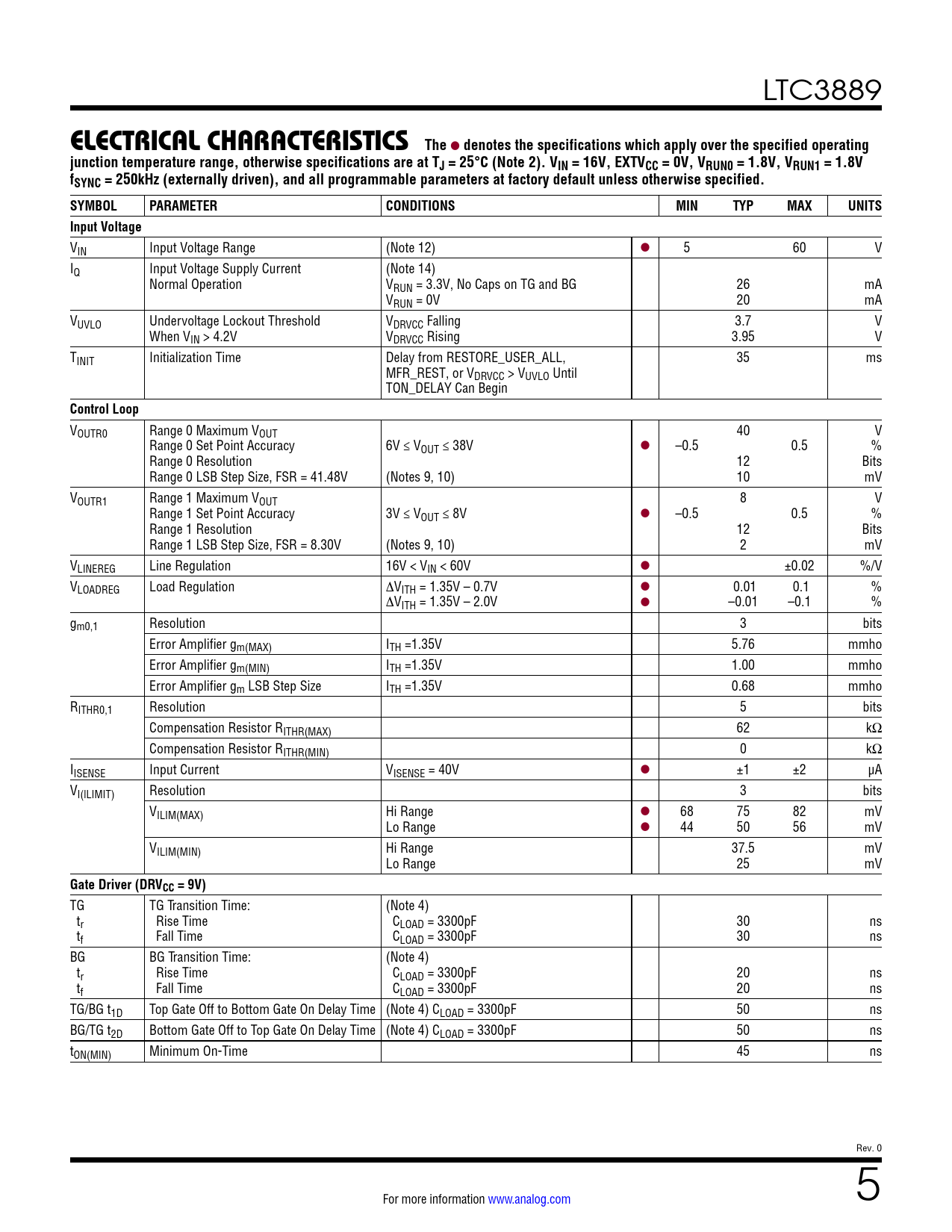

denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TJ = 25°C (Note 2). VIN = 16V, EXTVCC = 0V, VRUN0 = 1.8V, VRUN1 = 1.8V fSYNC = 250kHz (externally driven), and all programmable parameters at factory default unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Input Voltage
VIN Input Voltage Range (Note 12) l 5 60 V IQ Input Voltage Supply Current (Note 14) Normal Operation VRUN = 3.3V, No Caps on TG and BG 26 mA VRUN = 0V 20 mA VUVLO Undervoltage Lockout Threshold VDRVCC Falling 3.7 V When VIN > 4.2V VDRVCC Rising 3.95 V TINIT Initialization Time Delay from RESTORE_USER_ALL, 35 ms MFR_REST, or VDRVCC > VUVLO Until TON_DELAY Can Begin
Control Loop
VOUTR0 Range 0 Maximum VOUT 40 V Range 0 Set Point Accuracy 6V ≤ VOUT ≤ 38V l –0.5 0.5 % Range 0 Resolution 12 Bits Range 0 LSB Step Size, FSR = 41.48V (Notes 9, 10) 10 mV VOUTR1 Range 1 Maximum VOUT 8 V Range 1 Set Point Accuracy 3V ≤ VOUT ≤ 8V l –0.5 0.5 % Range 1 Resolution 12 Bits Range 1 LSB Step Size, FSR = 8.30V (Notes 9, 10) 2 mV VLINEREG Line Regulation 16V < VIN < 60V l ±0.02 %/V VLOADREG Load Regulation ∆VITH = 1.35V – 0.7V l 0.01 0.1 % ∆VITH = 1.35V – 2.0V l –0.01 –0.1 % gm0,1 Resolution 3 bits Error Amplifier gm(MAX) ITH =1.35V 5.76 mmho Error Amplifier gm(MIN) ITH =1.35V 1.00 mmho Error Amplifier gm LSB Step Size ITH =1.35V 0.68 mmho RITHR0,1 Resolution 5 bits Compensation Resistor RITHR(MAX) 62 kΩ Compensation Resistor RITHR(MIN) 0 kΩ IISENSE Input Current VISENSE = 40V l ±1 ±2 µA VI(lLIMIT) Resolution 3 bits VILIM(MAX) Hi Range l 68 75 82 mV Lo Range l 44 50 56 mV VILIM(MIN) Hi Range 37.5 mV Lo Range 25 mV
Gate Driver (DRVCC = 9V)
