Datasheet MAX971–MAX974 and MAX981–MAX984 (Maxim) - 8
| Manufacturer | Maxim |
| Description | Ultra-Low-Power, Open-Drain, Single/Dual-Supply Comparators |
| Pages / Page | 17 / 8 — Ultra-Low-Power, Open-Drain, Single/Dual-Supply Comparators. Pin … |
| File Format / Size | PDF / 333 Kb |
| Document Language | English |

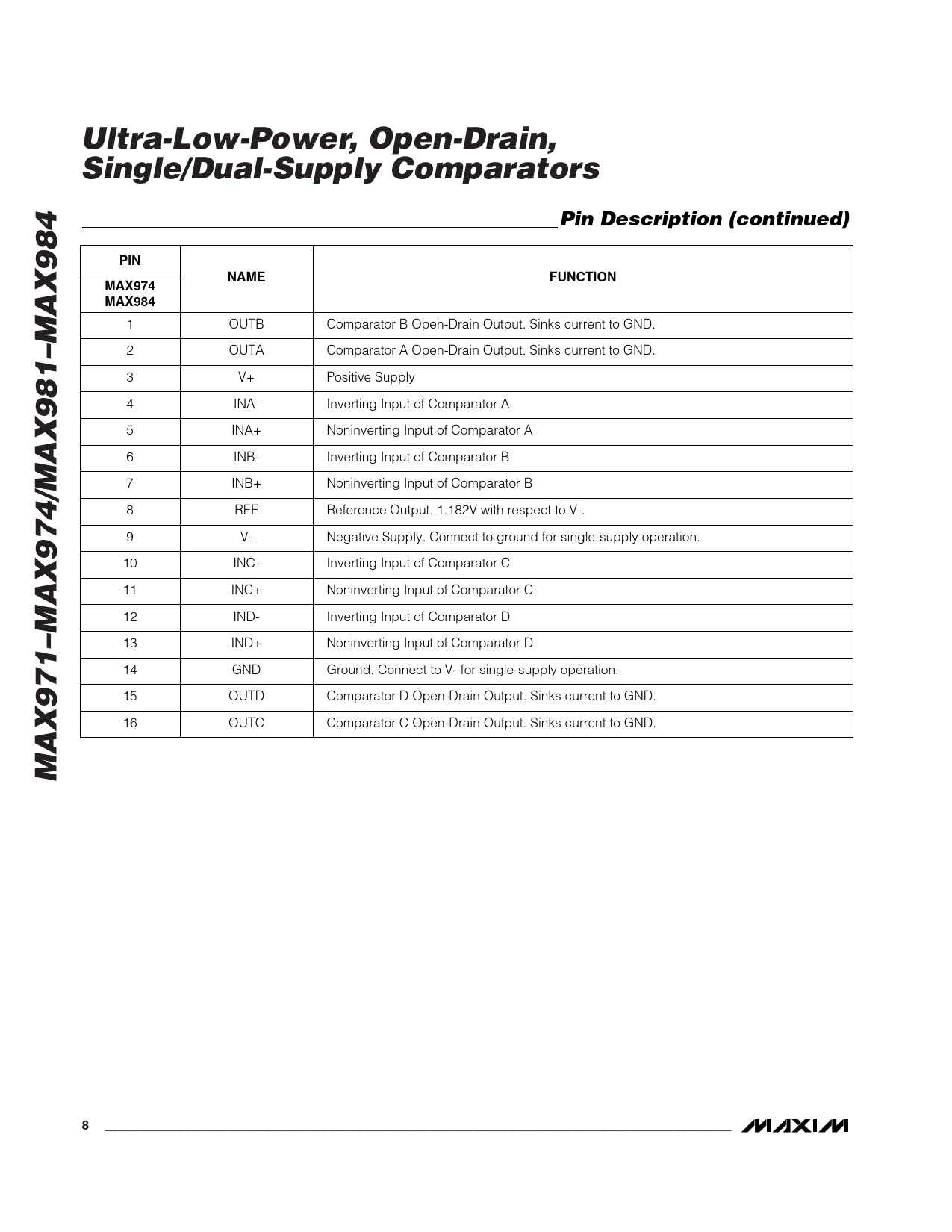

Ultra-Low-Power, Open-Drain, Single/Dual-Supply Comparators. Pin Description (continued). PIN. NAME. FUNCTION. MAX974 MAX984
Model Line for this Datasheet
- MAX971CPA MAX971CPA+ MAX971CSA MAX971CSA+ MAX971CSA+T MAX971CUA+ MAX971CUA+T MAX971CUA-T MAX971EPA+ MAX971ESA MAX971ESA+ MAX971ESA+T MAX971ESA-T
- MAX972CPA MAX972CPA+ MAX972CSA+ MAX972CSA+T MAX972CUA MAX972CUA+ MAX972CUA+T MAX972EBL+ MAX972EBL+T MAX972EPA MAX972EPA+ MAX972ESA+ MAX972ESA+T
- MAX973CPA+ MAX973CSA MAX973CSA+ MAX973CSA+T MAX973CSA-TG068 MAX973CUA+ MAX973EPA+ MAX973ESA MAX973ESA+ MAX973ESA+T MAX973ESA-T
- MAX981CPA+ MAX981CSA MAX981CSA+ MAX981CSA+T MAX981CUA+ MAX981CUA+T MAX981CUA-TG069 MAX981EPA MAX981EPA+ MAX981ESA+ MAX981ESA+T
- MAX982CPA MAX982CPA+ MAX982CSA MAX982CSA+ MAX982CSA+T MAX982CUA MAX982CUA+ MAX982CUA+T MAX982CUA-T MAX982EPA+ MAX982ESA MAX982ESA+ MAX982ESA+T
Text Version of Document
Ultra-Low-Power, Open-Drain, Single/Dual-Supply Comparators Pin Description (continued) PIN NAME FUNCTION MAX974 MAX984
1 OUTB Comparator B Open-Drain Output. Sinks current to GND. 2 OUTA Comparator A Open-Drain Output. Sinks current to GND. 3 V+ Positive Supply 4 INA- Inverting Input of Comparator A 5 INA+ Noninverting Input of Comparator A 6 INB- Inverting Input of Comparator B 7 INB+ Noninverting Input of Comparator B 8 REF Reference Output. 1.182V with respect to V-. 9 V- Negative Supply. Connect to ground for single-supply operation. 10 INC- Inverting Input of Comparator C 11 INC+ Noninverting Input of Comparator C 12 IND- Inverting Input of Comparator D 13 IND+ Noninverting Input of Comparator D 14 GND Ground. Connect to V- for single-supply operation. 15 OUTD Comparator D Open-Drain Output. Sinks current to GND. 16 OUTC Comparator C Open-Drain Output. Sinks current to GND.
MAX971–MAX974/MAX981–MAX984 8 _______________________________________________________________________________________
1 OUTB Comparator B Open-Drain Output. Sinks current to GND. 2 OUTA Comparator A Open-Drain Output. Sinks current to GND. 3 V+ Positive Supply 4 INA- Inverting Input of Comparator A 5 INA+ Noninverting Input of Comparator A 6 INB- Inverting Input of Comparator B 7 INB+ Noninverting Input of Comparator B 8 REF Reference Output. 1.182V with respect to V-. 9 V- Negative Supply. Connect to ground for single-supply operation. 10 INC- Inverting Input of Comparator C 11 INC+ Noninverting Input of Comparator C 12 IND- Inverting Input of Comparator D 13 IND+ Noninverting Input of Comparator D 14 GND Ground. Connect to V- for single-supply operation. 15 OUTD Comparator D Open-Drain Output. Sinks current to GND. 16 OUTC Comparator C Open-Drain Output. Sinks current to GND.
