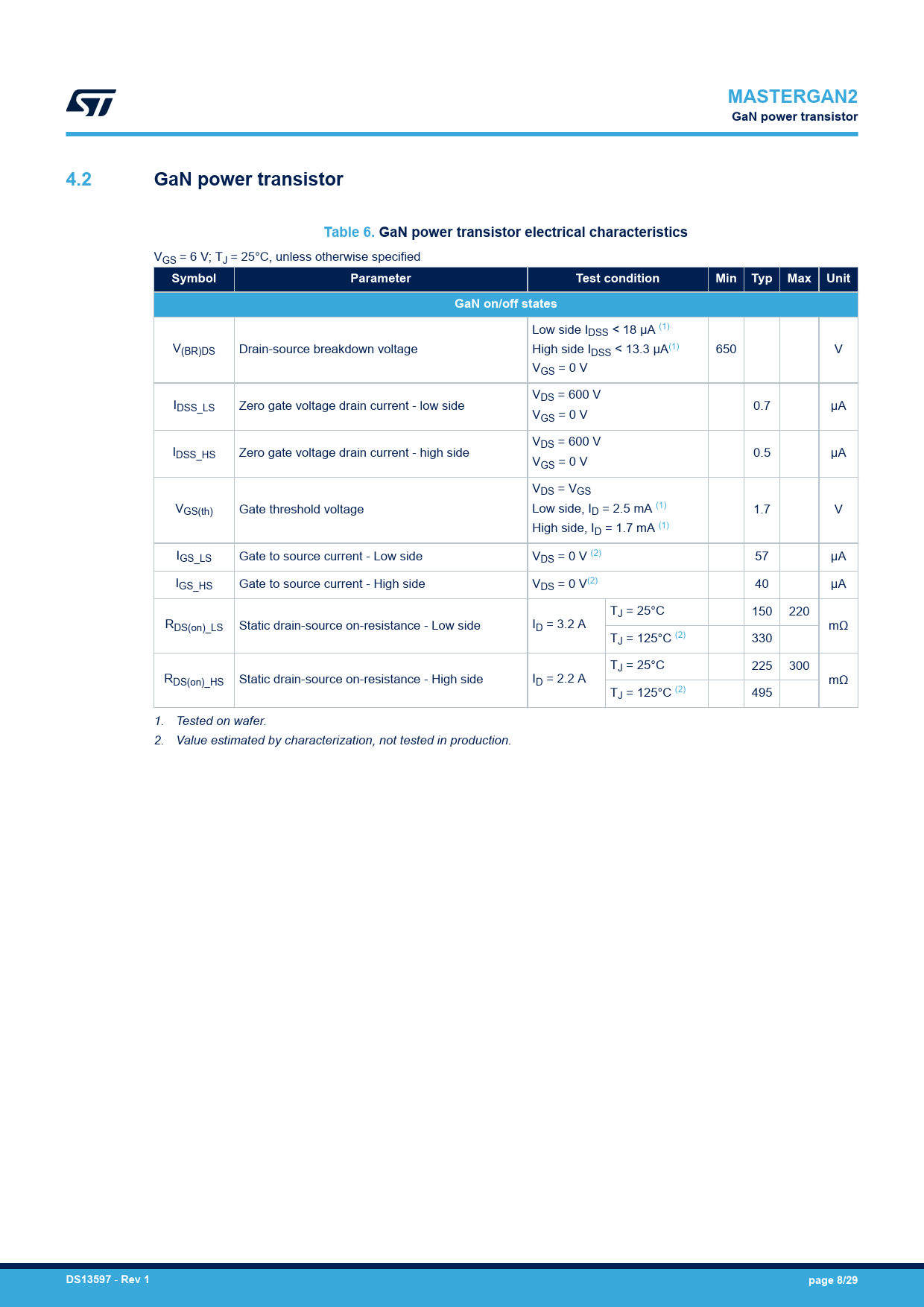

MASTERGAN2 GaN power transistor 4.2 GaN power transistor Table 6. GaN power transistor electrical characteristics
VGS = 6 V; TJ = 25°C, unless otherwise specified
Symbol Parameter Test condition Min Typ Max Unit GaN on/off states
Low side IDSS < 18 µA (1) V(BR)DS Drain-source breakdown voltage High side IDSS < 13.3 µA(1) 650 V VGS = 0 V V I DS = 600 V DSS_LS Zero gate voltage drain current - low side 0.7 µA VGS = 0 V V I DS = 600 V DSS_HS Zero gate voltage drain current - high side 0.5 µA VGS = 0 V VDS = VGS VGS(th) Gate threshold voltage Low side, ID = 2.5 mA (1) 1.7 V High side, ID = 1.7 mA (1) IGS_LS Gate to source current - Low side VDS = 0 V (2) 57 µA IGS_HS Gate to source current - High side VDS = 0 V(2) 40 µA TJ = 25°C 150 220 RDS(on)_LS Static drain-source on-resistance - Low side ID = 3.2 A mΩ TJ = 125°C (2) 330 TJ = 25°C 225 300 RDS(on)_HS Static drain-source on-resistance - High side ID = 2.2 A mΩ TJ = 125°C (2) 495 1. Tested on wafer. 2. Value estimated by characterization, not tested in production.
